Ultrasound inhalation for horses
Respiratory health is of central importance for every horse - whether in sport, leisure or breeding. Respiratory diseases are among the most common health problems in horses and can seriously affect the performance and well-being of your animal.
Effective treatment and prevention of respiratory diseases with Hippomed
With modern ultrasound inhalation, even deep-seated diseases can be treated gently and effectively.
Hippomed horse inhalers offer you decisive advantages: they are specially developed for the anatomy of the horse's lungs, ensure the full effectiveness of sensitive medication thanks to innovative 2-chamber cold nebulisation and enable particularly effective deep inhalation with a function-optimised mask. Place your trust in technology that has been developed and tested in equine practice.
Loading the video may transfer personal data to Vimeo. Please open the cookie settings and accept the service to display the video.
Why Hippomed ultrasound inhalers for horses are the best choice for respiratory problems
Conventional inhalation systems often originate from human medicine and are not designed for the special requirements of the horse's lungs. Hippomed ultrasound inhalers, on the other hand, were developed specifically for horses - based on decades of research and close cooperation with vets and horse owners. The devices combine several unique selling points that enable safe, gentle and particularly effective treatment:
Your key advantages with Hippomed:
- Special development for the horse's lungs: Unlike many commercially available systems that have merely been adapted, Hippomed inhalers are precisely tailored to the large lung volume and respiratory physiology of horses. Effective and safe treatment at all times. It ensures that the therapy reaches where it is needed: in the deepest regions of the lungs.
- Breathe healthier, stay more efficient: Hippomed inhalers specifically create optimal conditions for your horse's airways. Specially developed systems support mucosal functions and sustainably promote lung function - the result: your horse remains efficient and healthy, even under stress or in demanding environments.
- Innovative 2-chamber cold nebulisation: This technology reliably prevents the inhalate from heating up. As a result, even sensitive medication remains chemically stable and can develop its full effect in the lungs.

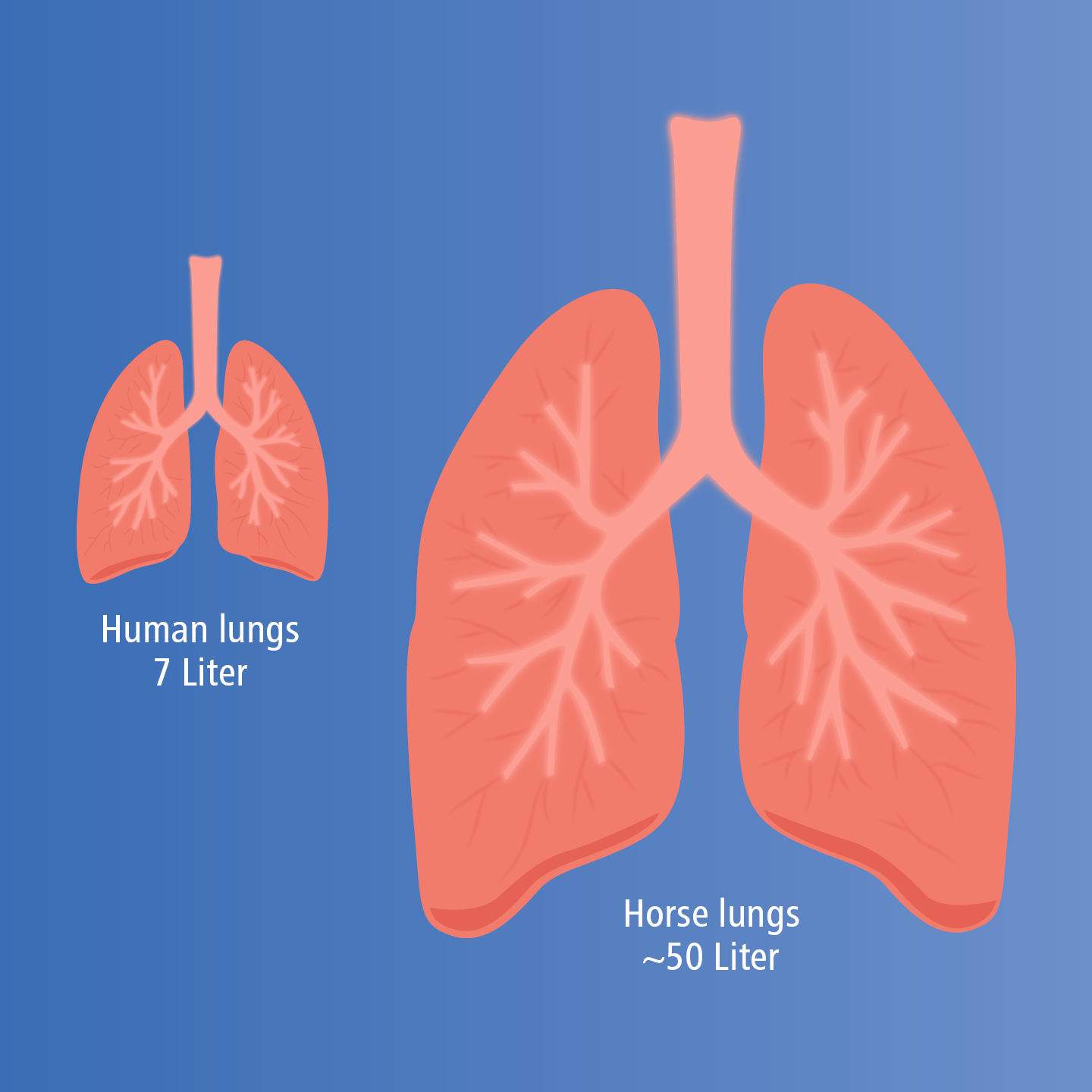

Comparison of lung volumes
The Hippomed inhaler was specially developed for the horse's lungs and is not designed for human lungs like conventional inhalers.
- Function-optimised inhalation mask: A tight, comfortable fit and special airflow (chimney effect) ensure even and deep distribution of the inhalation in the lower respiratory tract.
- Efficient deep inhalation: Especially in the case of diseases such as COB (chronic obstructive bronchitis) or equine asthma, it is crucial that medication reaches the deepest parts of the lungs. This is exactly what Hippomed inhalers make possible thanks to the finest mist particles (0.5-6 μm), quiet medication delivery and optimum mask fit.
The right inhalation - what you should look out for when choosing an inhaler
Not every inhaler is suitable for the special requirements of the horse's lungs. Pay attention to the following criteria:
- High nebuliser output: 10-15 ml of inhalation solution per minute is ideal to supply the large lung volume.
- Optimal particle size: Only particles with a diameter of 0.5-6 μm reach the deepest sections of the lungs.
- Perfect mask fit: A tight fit prevents losses and ensures effective deep inhalation.
- Compatibility: Your inhaler should be compatible with various inhalants (e.g. saline solution, medication).
- Innovative cold nebulisation: Protects sensitive active ingredients from heat and ensures maximum effectiveness.
- Easy cleaning: For safe, hygienic use in the stable.
Hippomed - Your specialist for horse inhalers
AirOne Flex - mobile ultrasonic inhaler for horses
The AirOne Flex from Hippomed is the first inhaler that has been specially developed for horses and their unique lung volume. Thanks to innovative 2-chamber cold nebulisation, the effectiveness of sensitive medication is maintained. The powerful, battery-operated technology enables effective deep inhalation - mobile, quiet and stress-free. The ergonomic mask ensures an optimum fit without inhalation losses. Robust, virtually maintenance-free and easy to clean - perfect for daily use in the barn
Find out more and get AirOne Flex for your barn!
AirOne - stationary ultrasonic inhaler for horses
The AirOne from Hippomed is the first stationary inhaler that has been specially developed for the anatomy and large lung volume of horses.
With innovative 2-chamber cold nebulisation and powerful technology, it enables targeted, effective deep inhalation - ideal for treating the lower respiratory tract. The precisely fitting mask, quiet application and robust design make it the ideal device for daily use in the stable.
Discover AirOne now and offer your horses the best!
Masks of the AirOne family
The masks in Hippomed's AirOne family have been specially developed for optimal inhalation in horses. Thanks to innovative inhalation and exhalation valves, a tight silicone seal and adjustable fresh air supply, they enable effective and comfortable deep inhalation – with maximum fit and hygiene. Robust polycarbonate and easy cleaning ensure durability and safe use in everyday stable life.
Optimise inhalation with matching masks now!
Advantages of the Hippomed mask
- Adapts to the horse's mouth and ensures a comfortable fit
- Fresh air supply can be continuously adjusted
- Inhalation and exhalation valves ensure a comfortable fit. and exhalation valve ensure a chimney effect
- Tight-fitting mask thanks to silicone edging
- Made from shatterproof, durable polycarbonate
- Secure attachment to the device thanks to high-quality rubber straps (AirOne Flex)
- Easy disinfection and cleaning thanks to removable valves and fixing screws on the rubber straps (AirOne Flex). The silicone rim can also be easily removed and cleaned
- Fits the horse's mouth and is comfortable to wear
- Tightly fitting mask thanks to silicone rim
- Made from unbreakable, long-lasting polycarbonate
- Secure fixation to the unit with high-quality rubber straps (AirOne Flex)
- Fresh air supply can be smoothly regulated
- Inhalation and exhalation valve create a chimney effect
Easy disinfection and cleaning thanks to removable valves and fixing screws on the rubber straps (AirOne Flex). The silicone rim can also be easily removed and cleaned.
The right choice of inhalation agent - for healthy airways

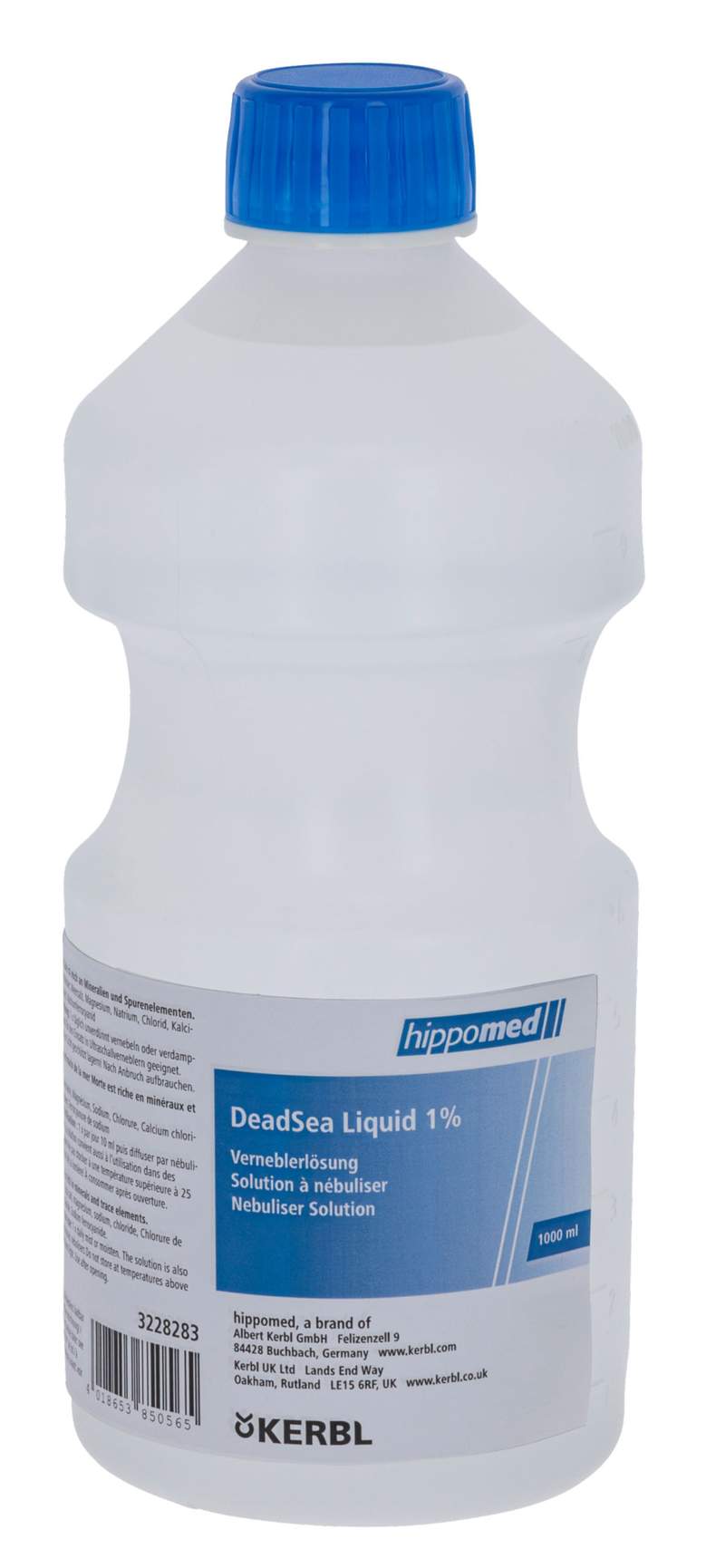

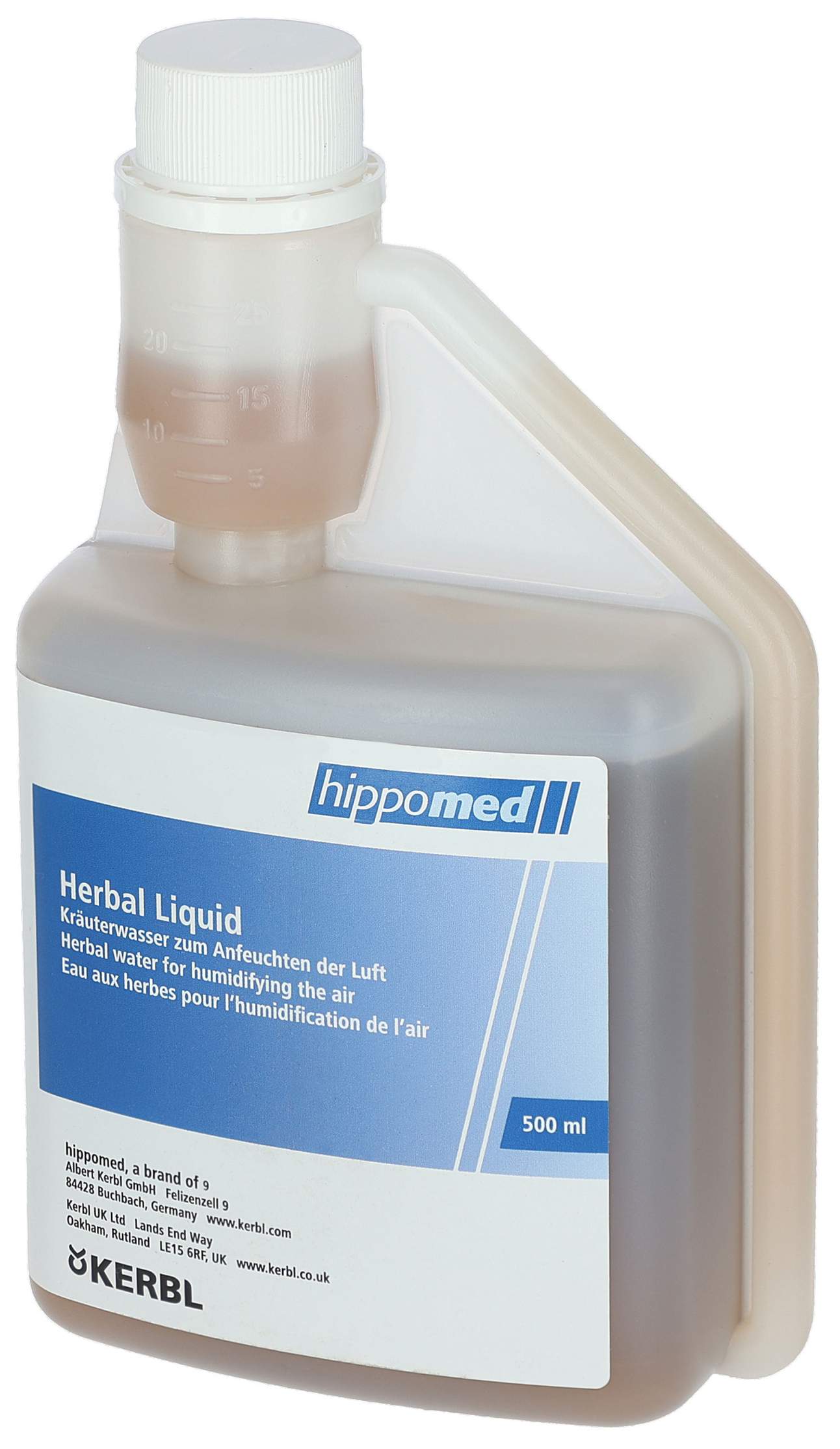

An isotonic saline solution is always recommended as the basis for inhalation in horses. If necessary, this can be supplemented with bronchodilators, expectorants or anti-inflammatory medication. Natural inhalation solutions such as Herbal Liquid or DeadSea Liquid from Hippomed also ensure healthy airways and a pleasant stable climate. Please always consult your vet.

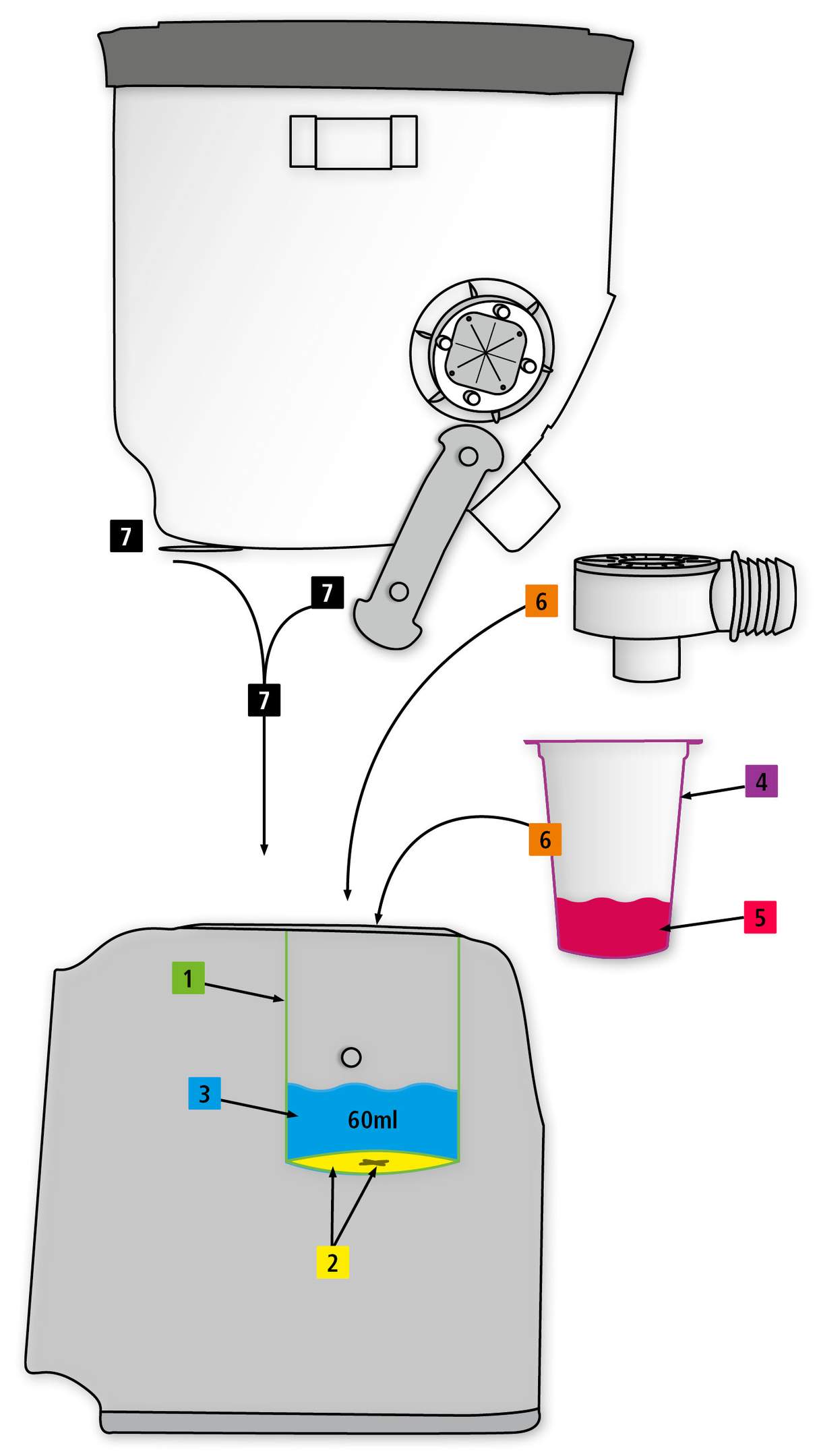

How the ultra-sound nebuliser works
The AirOne and AirOne Flex work in the same way. The only difference between the two devices is the housing and the length of the connecting tube to the mask.
This is how it works (using the AirOne Flex as an example).
Loading the video may transfer personal data to Vimeo. Please open the cookie settings and accept the service to display the video.
- Step 1: Fill the nebuliser chamber 1 with 60 ml of contact fluid 3.
- Step 2: Fill the medication cup 4 with a maximum of 50 ml and with a water-soluble inhalation solution 5 according to the package insert.
- Step 3: Place chamber 2 in chamber 1 and place the nebulising chamber lid 6 on top.
- Step 4: Place the inhalation mask on the AirOne Flex by inserting the back tab of the mask into the recess on the device and attaching the rubber tabs to the side of the device 7.
- Step 5: Connect the short tube to the attachment of the nebulising chamber lid and that of the mask.
Step 6: If the battery of the AirOne Flex has been charged beforehand, it is now ready for use.
- Nebulising chamber 1
- Vibrating base with quartz
- 1. Chamber is filled with 60 ml contact fluid
- Chamber 2 (nebuliser cup)
- filled with inhalation solution, e.g. saline solution or herbal liquid
- Insert chamber 2 into chamber 1, close with the nebulising chamber lid
- Attach the mask securely with the hook-in strap and fixing clip.
Loading the video may transfer personal data to Vimeo. Please open the cookie settings and accept the service to display the video.
Respiratory diseases in horses – symptoms, causes and modern treatment
Respiratory diseases are one of the most common health problems in horses. They range from acute coughing and allergic reactions to chronic conditions such as COB (chronic obstructive bronchitis) or equine asthma.
They are often triggered by a combination of poor husbandry (e.g. dust, ammonia, poor ventilation), untreated infections, allergies, viruses, bacteria and genetic predisposition.
Healthy airways are lined with cilia that remove dust and pollutants. In the event of disease or irritation, this mechanism becomes unbalanced, mucus production increases and removal is disrupted, resulting in thick mucus and breathing problems. If not treated early, chronic damage may occur.
Respiratory problems in horses - signs and possible measures
Respiratory diseases occur relatively frequently in horses. The symptoms and causes are varied and should be clarified individually by a vet. The following information does not replace a diagnosis:
- Acute respiratory symptoms: Can be triggered by pathogens or environmental stimuli, among other things. Possible signs: Cough, nasal discharge, fatigue, possibly fever.
- Chronic respiratory stress (e.g. from the asthma spectrum): Often manifested by recurrent coughing, difficult breathing and reduced willingness to perform; possible triggers are dust or an unfavourable stable climate.
- IAD (inflammatory airway disease): Can be characterised by occasional coughing, slight nasal discharge and fluctuating form, especially in younger horses.
- Possible risk factors: Dusty feed, inadequate ventilation, sudden changes in weather, stress and transport.
Possible measures
The appropriate treatment depends on the veterinary diagnosis. This often includes the optimisation of husbandry and feeding as well as coordinated treatment. Inhalation therapy can - after consultation with your vet - be considered as a supplementary option to support the respiratory tract.
Conclusion
Deep inhalation means that the inhaled medication is effective in the deepest regions of the lungs. It is particularly important for chronic or deep-seated respiratory diseases. A good inhaler - such as one with cold nebulisation and a suitable mask - can specifically support this effect.
Rely on innovative inhalation technology for horses that has been tried and tested in practice and scientifically proven. With Hippomed, you can protect and strengthen your horse's respiratory tract - for better health, performance and vitality.
Get advice now and find the right solution for your horse - we look forward to hearing from you!
Important questions and answers about the hippomed ultrasound inhaler
What makes hippomed inhalers different from other systems?
Hippomed horse inhalers are specially designed for horses' lungs, offering innovative 2-chamber cold nebulisation to protect sensitive medications and a functionally optimised mask for maximum depth of action – for safe, efficient and stress-free treatment.
How long is the warranty?
Albert Kerbl GmbH grants you a 2-year warranty on the ultrasound base unit in accordance with our general warranty conditions. These general warranty conditions can be found at www.kerbl.com/guarantee. We will also be happy to send you the warranty conditions by post. Your statutory warranty rights remain unaffected by our guarantee. This warranty begins on the date of purchase. The warranty does not cover:
- Damage caused by natural wear and tear (wear parts such as the oscillator / transducer), excessive strain and incorrect use (non-compliance with operating instructions).
- Damage caused by force majeure or sustained during transport.
- Damage to rubber parts, e.g. on access lines.
- Damage to the mask including its attachments (valves) and the tube.
Warranty repairs are only carried out by the service centre (DE/AT) or an authorised contracted workshop! The manufacturer reserves the right to reject any warranty claims in the event of non-compliance.
The unit must for this purpose be delivered to the specified service address, at the risk of the unit's owner, complete, packaged and with sufficient postage, including the original invoice. Please provide as much information as possible on the nature of the problem (see form).
Costs incurred as a result of unjustified defect claims will be invoiced to the unit's owner.
What mask sizes are available?
- AirOne (230 Volt): Pony, Shetty, Warmblood and Coldblood
- AirOne Flex (battery): Pony, Warmblood and Coldblood
How do I put on the mask?
Always open the ventilation disk at the front first, then from the throat over the nostrils (from the bottom back to the front).
How high do I have to put the mask on?
The mask only needs to sit slightly above the nostrils, not up to the beginning of the cheekbone.
What can you inhale?
Please always consult your family veterinarian before having any medication inhaled. Saline is usually safe and is available without a prescription.
How much contact fluid needs to be introduced into the nebuliser chamber?
60 ml
How often do I have to change/refill the contact fluid?
- If the water level indicator shows that there is too little contact liquid in the unit
- If visual contamination is detected
- If the inhaler is not used for more than one week
How should the inhaler be stored?
Dry and frost-free in the storage box provided
What do I do with the tube after inhalation?
After disinfection, rinse with sufficient water and hang to dry in a suitable place. Do not hang on sharp edges or on the heater.
How long should inhalation take place for?
We recommend once to a maximum of twice a day for 10 to 20 min or as recommended by the vet.
How do I clean the AirOne/ AirOne Flex?
All mask parts and the breathing tube must be disinfected after each use, then rinsed with water and dried afterwards. The inhalation unit can be wiped down with water and a soft cloth.
What do I do if liquid collects in the tube?
Please check if the droplet catcher (small white ring in the nebulising chamber lid) is seated correctly. The slit must point upwards.
Why is steam suddenly coming out of the nebulising chamber lid?
In this case, the inhalation valve in the mask is not working correctly (dirty, bent or broken). The inhalation valve should act as a non-return valve.
Can I use the AirOne / AirOne Flex with several horses?
Yes, as many as you like! It is important to thoroughly clean/disinfect the mask parts before letting another horse inhale.
Important questions and answers about respiratory diseases and inhalation in horses
Which respiratory diseases are most common amongst horses?
The most common respiratory diseases include acute or chronic cough, COB (also known as equine asthma), IAD (inflammatory airway disease), viral or bacterial infections, and allergic reactions to dust, mould or pollen.
What are the most common causes of respiratory diseases affecting horses?
Housing errors such as excessive dusty conditions, bad ventilation, lack of exercise or harmful gases (ammonia), untreated infections, allergies, viruses, bacteria or even genetic predisposition play a role.
How can I recognise respiratory diseases at an early stage?
Symptoms include coughing (especially in the morning or during exertion), nasal discharge, reduced performance, difficulty breathing, increased respiratory rate and loss of appetite.
Why is inhalation so effective for horses?
Inhalation delivers active ingredients directly to their target location – the lungs. This enables a high local concentration of active ingredients with fewer side effects. It can be used for acute treatment as well as for prevention.
