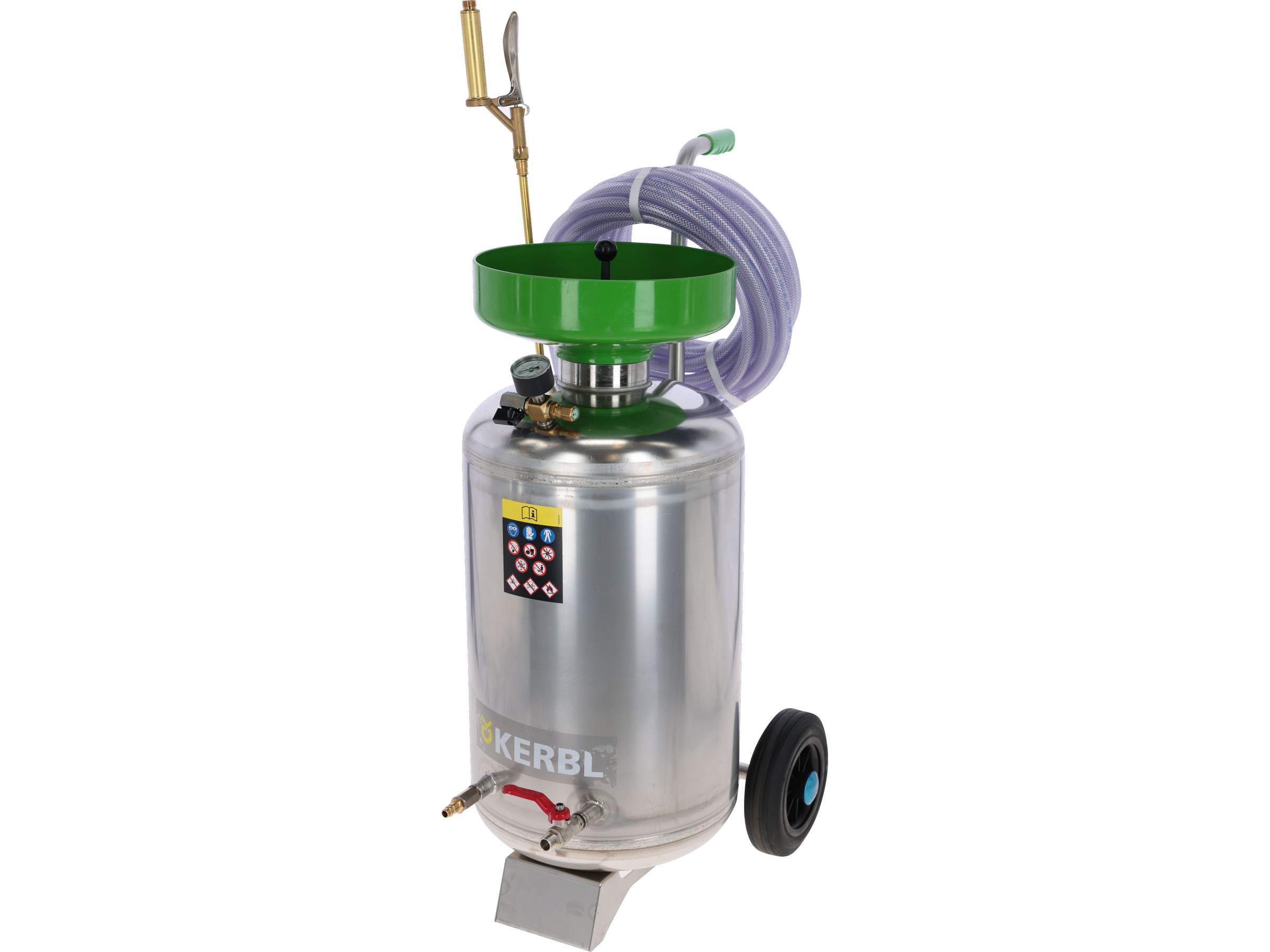

Whitewash/all-round Spray

Whitewash/all-round Spray

The new all-round sprayer using the tried and tested principle.

low mist application means less room contamination
suitable for common compressors
nozzles included for numerous uses
user-friendly quick-screw funnel - the sieve does not need to be removed before use
operation possible without permanent air connection

Retailer web shop

Ref. no.	Description	Length	Width	Height	PU	Pallet	€
296200	Stainless Steel	51 cm	40 cm	78 cm	1	12 PAL	599.00

Technical Data	296200
Weight	20 kg
Max. fill level with compressor	35 L
Max. fill level without compressor	25 L
Operating pressure	2 bar, 3 bar
max. permissible operating pressure	5 bar
Tank content	39.5 L

Ref. no.	Description	suitable for	PU	€
296005	Safety Valve 5 bar	296200, 296100, 296000	1/50	45.99
296017	Pressure Regulator without Pressure Gauge 1/4"	296200, 296100, 296000	1/150	49.99
296021	Special Round Spray Nozzle 1.5 mm	296200, 296100, 296000	1/50/300	13.99
296022	Special Whitewashing Flat Nozzle with Insert 0.6 mm	296200, 296100, 296000	1/70	15.99
296024	Flat Jet Nozzle with Insert 0.2 mm, 0.3 mm and 0.4 mm	296200, 296100, 296000	1/200	29.99
296029	Spray Lance Set 7-piece, no hose	296200, 296100, 296000	1/50	129.00
296030	Extension Pipe 750/10/1 mm	296200, 296100, 296000	1/500	31.99
296032	Non-return Valve 1/4" with Reducer	296200, 296100, 296000	1/50	29.99
296044	plastic funnel with replacement seal	296200, 296100	1/5	34.99
296049	Replacement Seal (O-ring) for Metal Funnel Ammer	296000	1	2.99
296100-1	Replacement Flat Gasket for plastic funnel	296100	1	3.49
296200-1	hand piece of the lance	296200, 296100, 296000	1/40	56.99
296200-17	washer set for spray lance set	296200, 296100, 296000	1/600	4.99

The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
