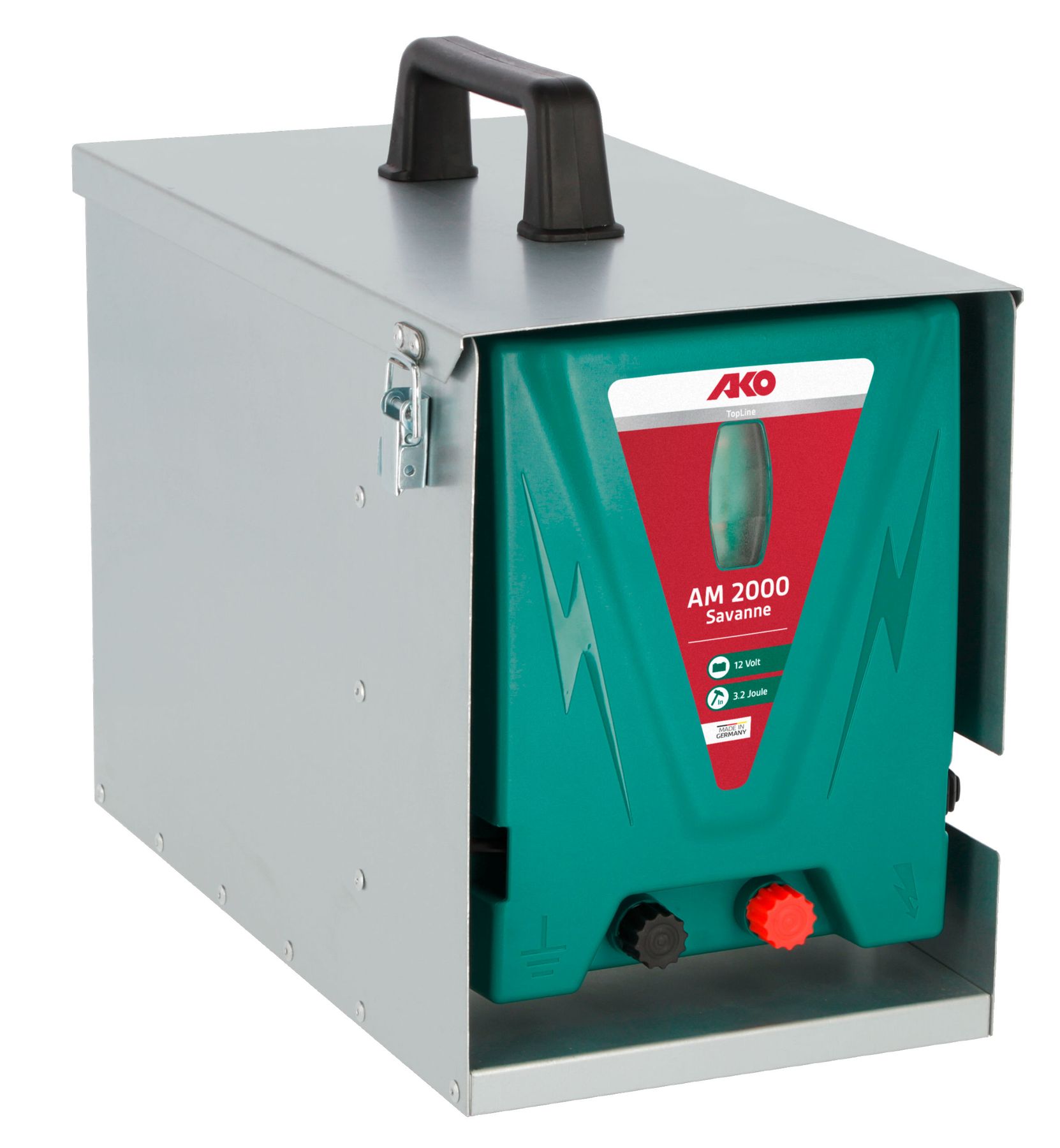

Savanne AM 2000
- 12 volt device with high output power for normal fencing systems, even with heavier vegetative growth
- with on/off switch
- 5-year warranty
fence control LED and separate battery warning indicator
| Ref. no. | PU | Pallet | € |
|---|---|---|---|
| 372752 | 1 | 27 PAL | 209.00 |
| Model | Savanne AM 2000 |
|---|---|
| Ref. no. | 372752 |
| Stored Energy | 3.2 J |
| max. discharge energy | 2 J |
| max. voltage | 9600 V |
| Voltage in Open Circuit | 8300 V |
| Voltage at 500 Ohms | 6100 V |
| theoretical fence length as per VDE | 60 km |
| max. fence length without vegetation | 20 km |
| max. fence length with medium vegetation | 5 km |
| max. fence length with high vegetation | 2 km |
| Approx. Number of Electrifiable Nets | 8 |
| Qty 1 m earth posts | 2 |
| Power Consumption | 75 mA, 193 mA |
| Ref. no. | Description | Width | Depth | Height | PU | € |
|---|---|---|---|---|---|---|
| 375251 | Solar Panel | 37.5 cm | 2 cm | 56 cm | 1 | 179.00 |
Impact force and fence length: the AKO Savanne 2000 supplies 3.20 J of charging energy and 9,600 V of voltage. It is ideal for up to 20 km of fencing without vegetation. INFO: regular removal of vegetation prevents discharges and improves the protective security

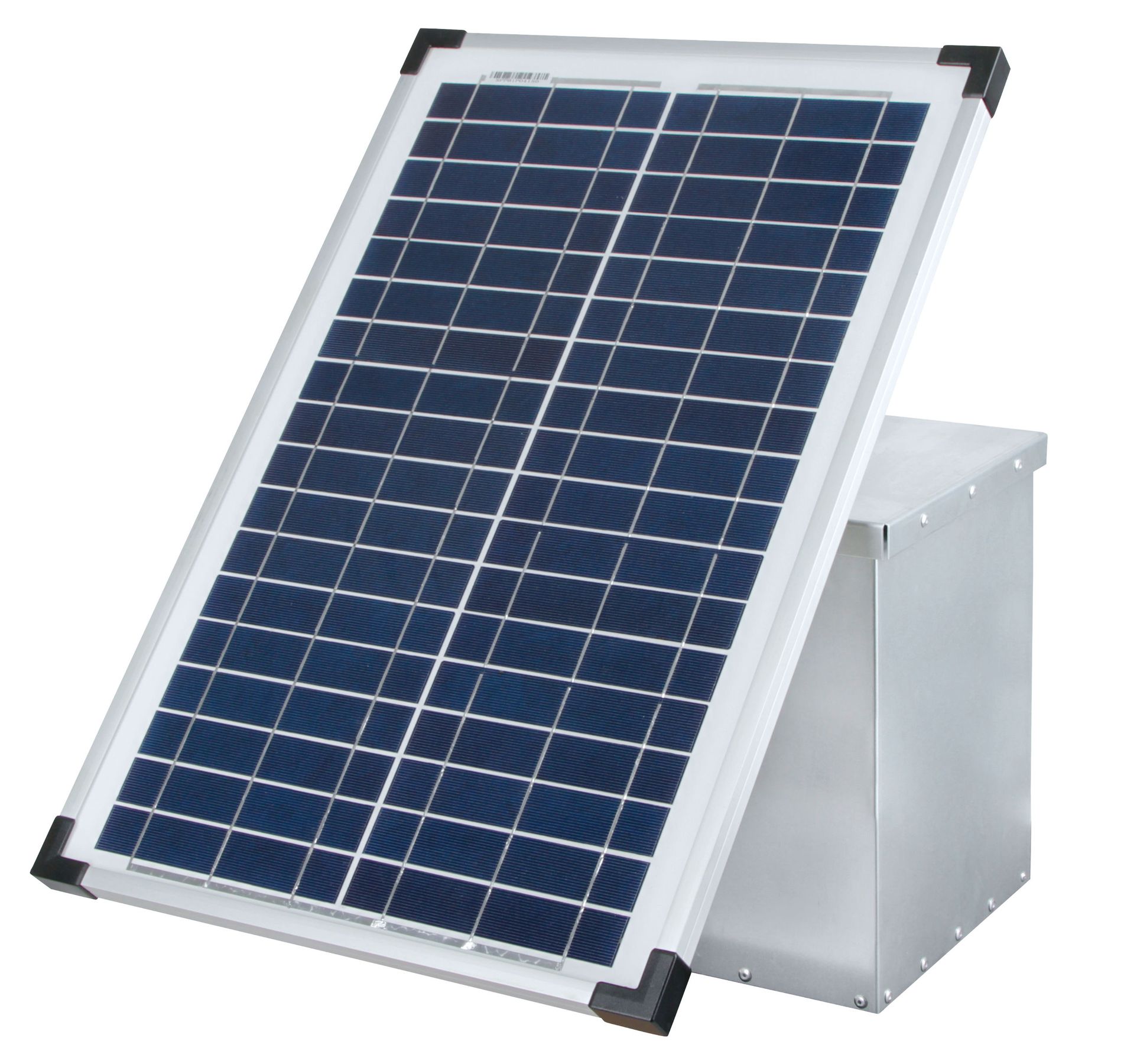

Power supply and animals: The device is a 12 V battery unit. A 25 W solar module (375251) can be connected directly to the battery for support and mounted on the metal box. Ideal for horses, cattle, sheep, goats, pigs, cats and herons
Functions: the device is equipped with an ON | OFF push switch. The integrated deep discharge function switches the device off when the battery is discharging into a critical voltage range in order to protect it
Display: the fence device is equipped with 2 LEDs. One LED for monitoring the fence voltage (green = > 3,500 V | No flashing = < 3,500 V) and a separate LED for monitoring the battery charge level (red = < 11,600 V)

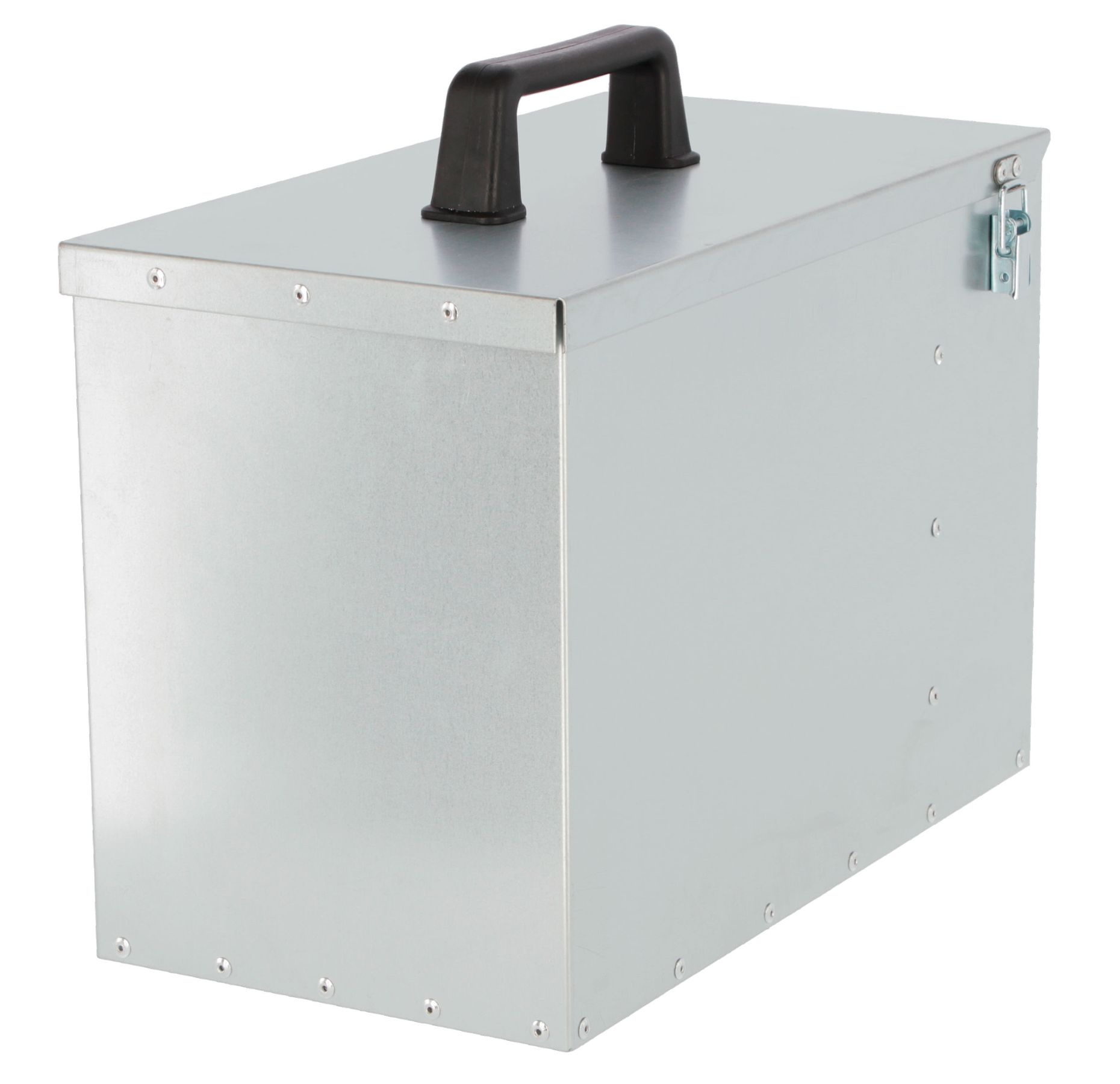

Housing and assembly: the fence device's robust housing is made from impact-resistant, UV-resistant plastic and is supplied mounted on the metal box. The battery can be installed into a space of max. dimensions 295 x 200 x 250 mm
low energy consumption thanks to energy-saving mode
with visual fence voltage control
with On/Off switch, high/low
weather-resistant and sturdy housing
with 12 Volt full discharge protection
internal dimensions approx. 295 x 200 x 250 mm, suitable for batteries with max. 100 Ah (battery not included in scope of supply)
Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com
- 1 x fence device incl. 12 Volt connection cable and metal box
- 1 x fence / ground connector cable
- 1 x warning sign
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
