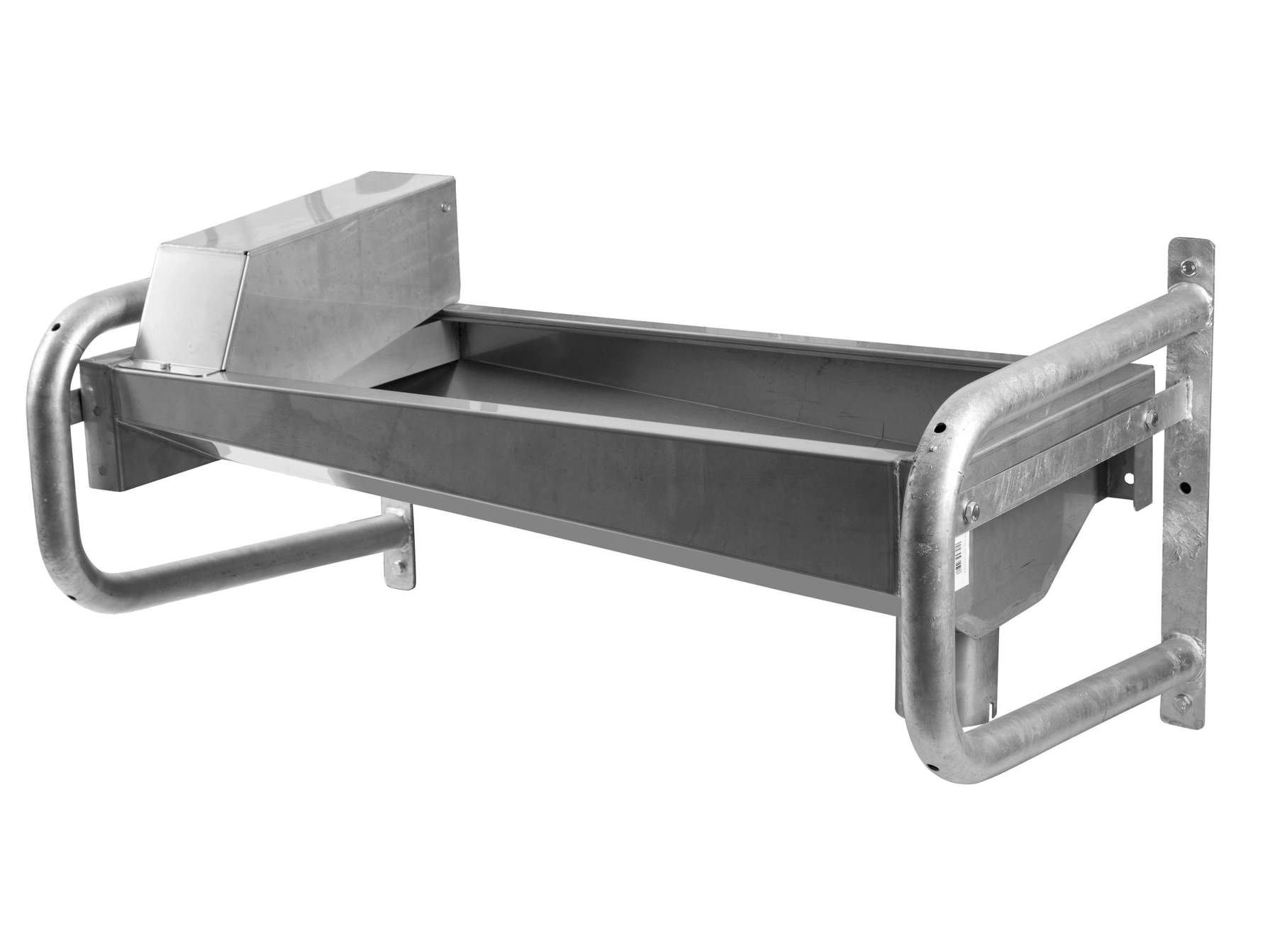

Quick-Draining Trough, stainless steel
- drinking trough made from rust-resistant stainless steel

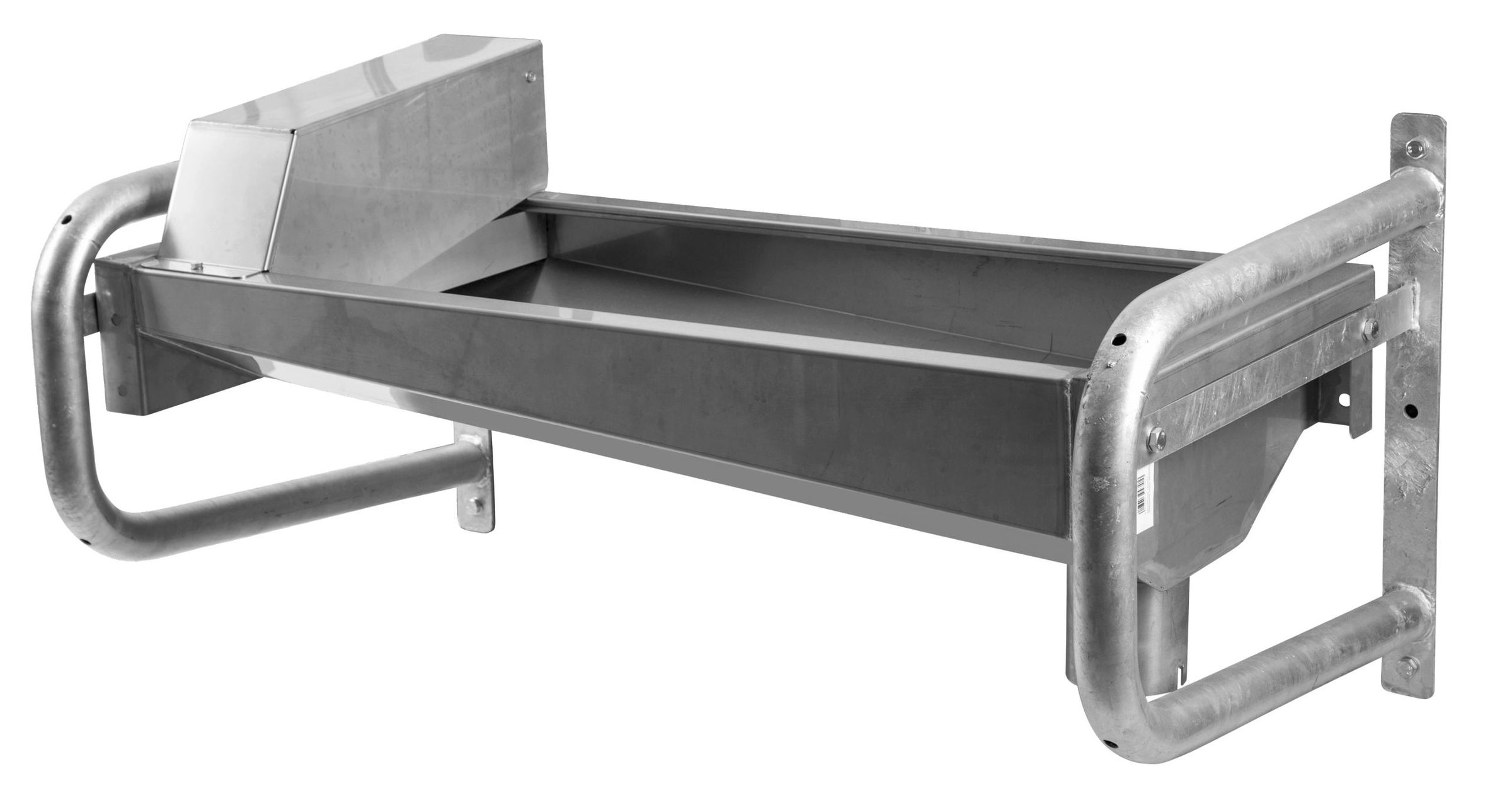

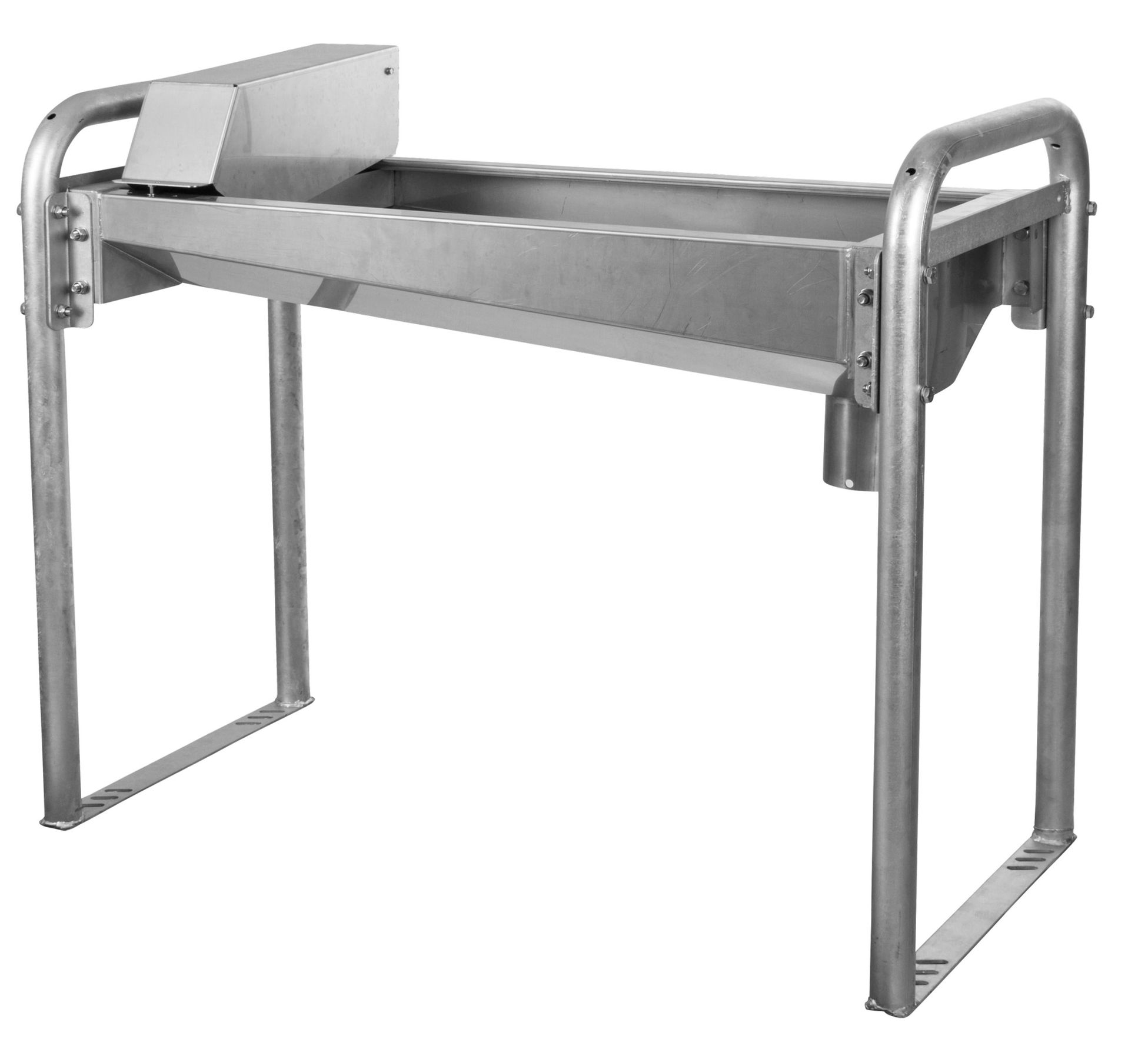

- galvanised wall bracket and floor stand
- large drain and inclined trough base ensure rapid draining of the water and self-cleaning of the trough

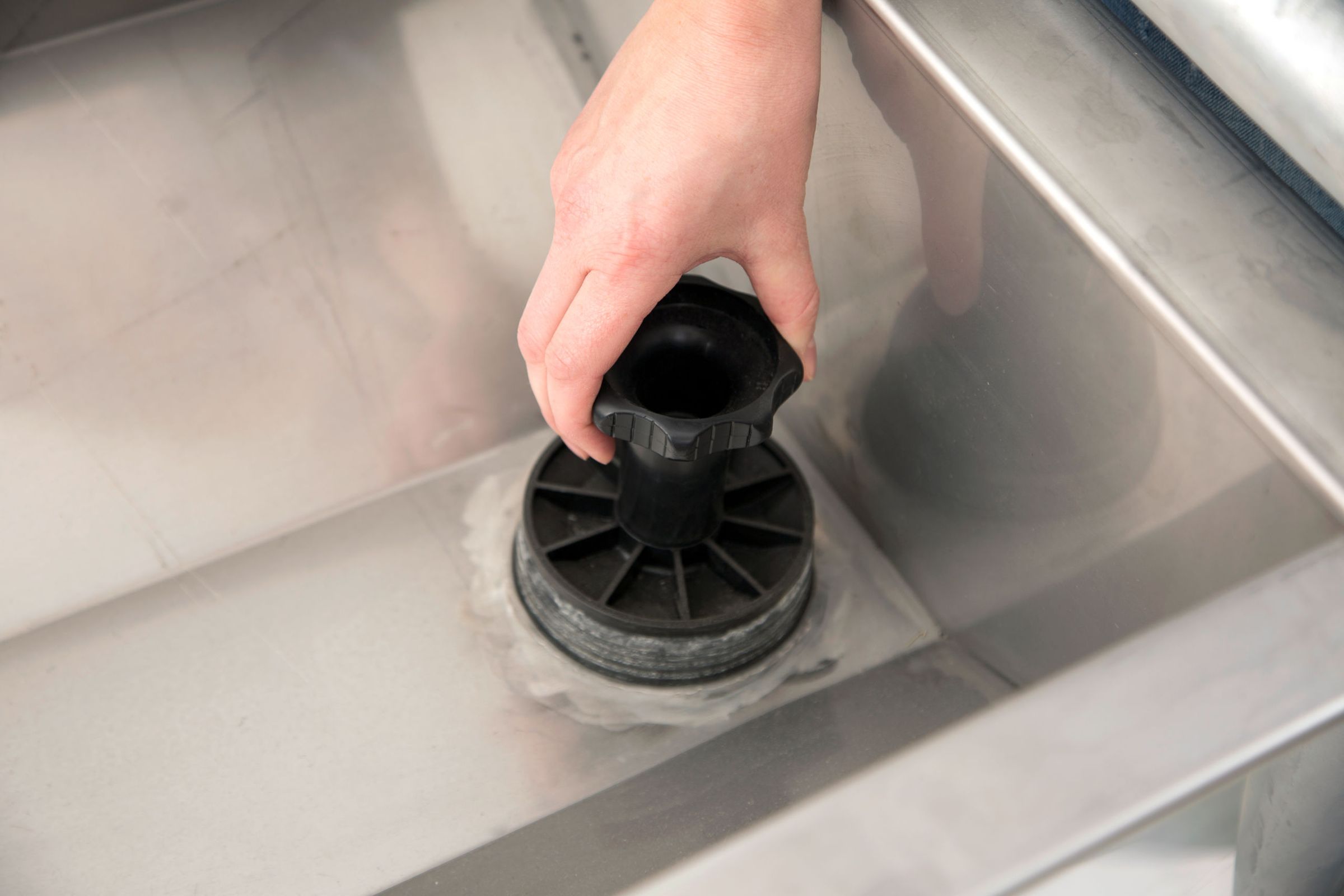

- expansion sealing plugs for quick opening and closing of the drain
- drain connection so suit KG pipe DN 100

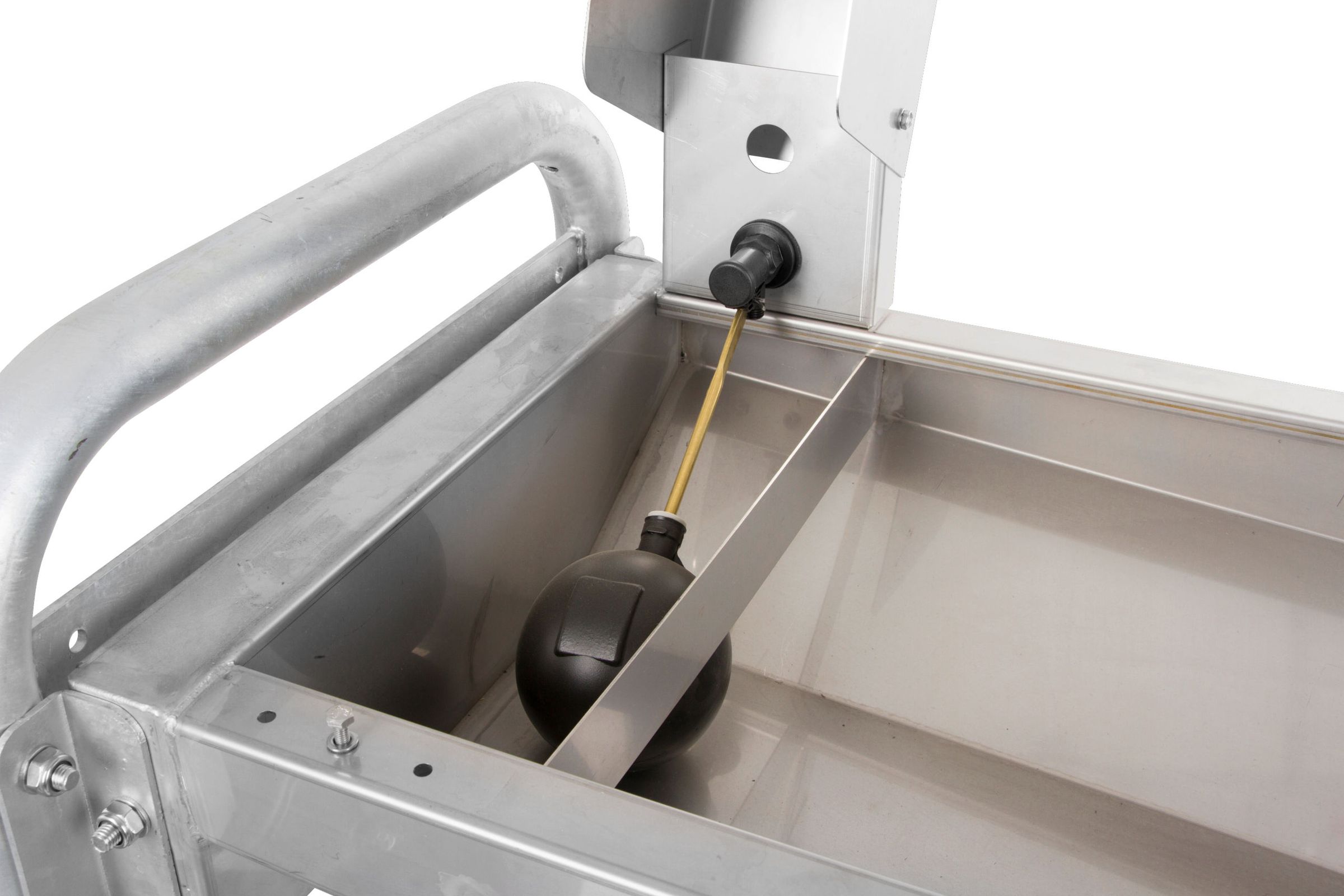

- with 3/4” high performance float valve

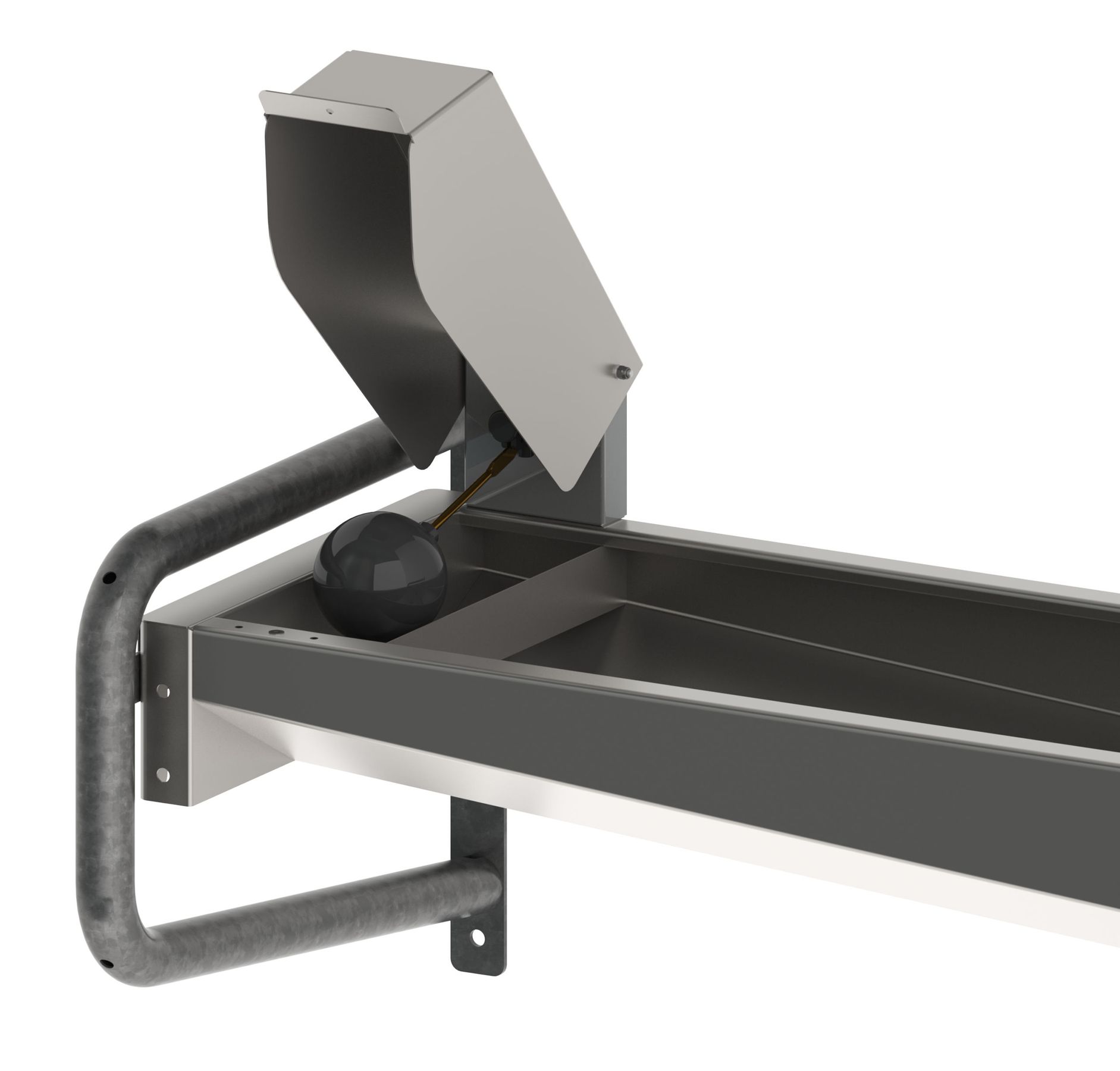

- easy to open valve cover
- Frost-free down to -15 °C: integrated electric heating 200 W (item no. 221142, 221143, 221152, 221153) or can be retrofitted (item no. 221094), operation with transformer (not included)
- valve XtraFlo with 250 l/min at 3 bar optionally available
with heating frost-protected down to about -15°
| Ref. no. | Description | Capacity | Heating output | Voltage | Water Connection | Interior length | PU |
|---|---|---|---|---|---|---|---|
| 221140 | with floor stand | 50 L | G 3/4" | 100 cm | 1 | ||
| 221141 | with wall bracket | 50 L | G 3/4" | 100 cm | 1 | ||
| 221150 | with floor stand | 95 L | G 3/4" | 190 cm | 1 | ||
| 221151 | with wall bracket | 95 L | G 3/4" | 190 cm | 1 | ||
| 221142 | with floor stand, includes heating | 50 L | 200 W | 24 V | G 3/4" | 100 cm | 1 |
| 221143 | with wall bracket, includes heating | 50 L | 200 W | 24 V | G 3/4" | 100 cm | 1 |
| 221152 | with floor stand, includes heating | 95 L | 200 W | 24 V | G 3/4" | 190 cm | 1 |
| 221153 | with wall bracket, includes heating | 95 L | 200 W | 24 V | G 3/4" | 190 cm | 1 |
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
