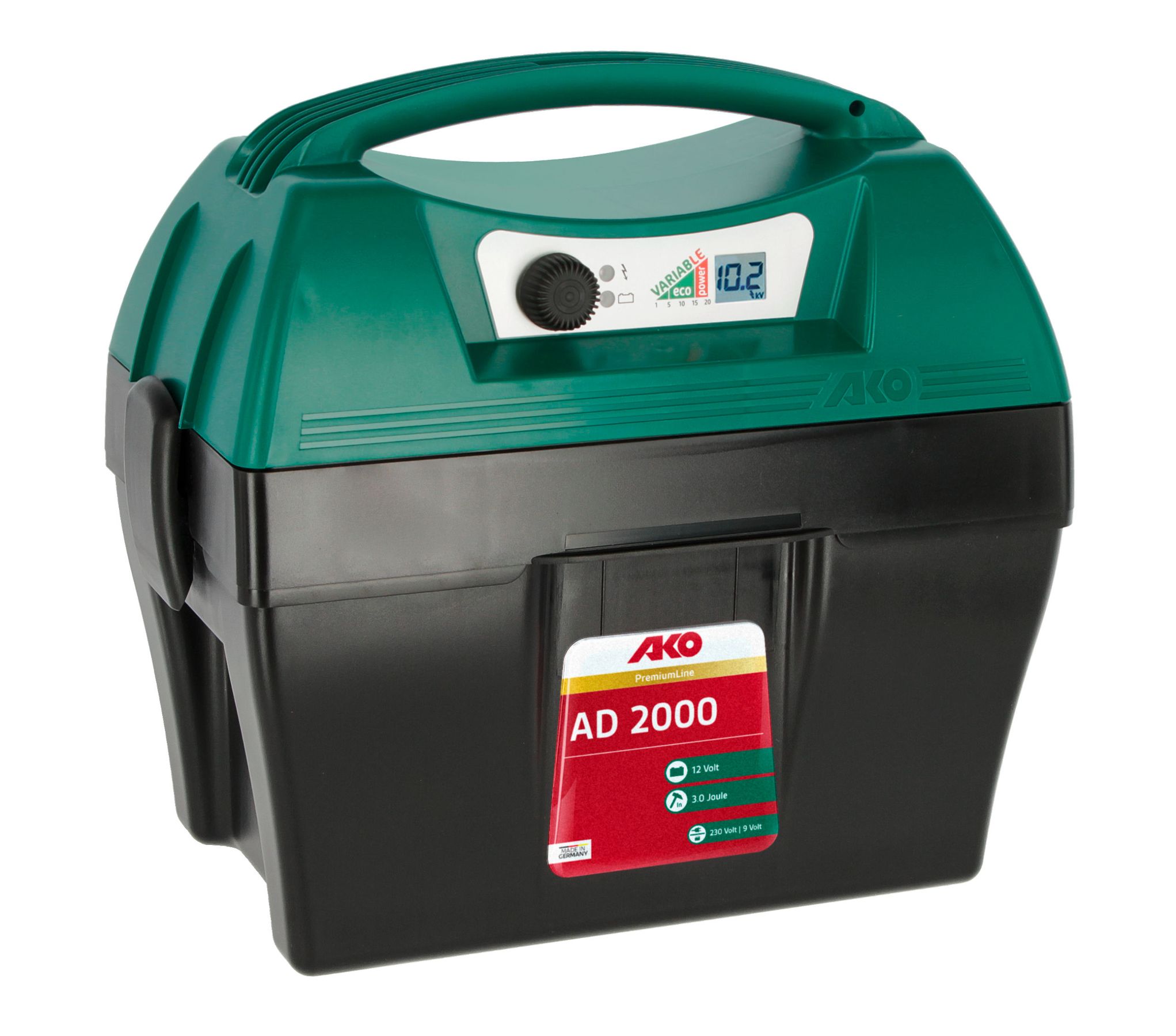

Mobil Power AD 2000 digital
- extremely powerful 12 Volt battery unit for mobile use, long fences with vegetation and powerful animals
- allows for alternative operation with 9 Volt dry battery
- 5-year warranty
digital display readout and LED lights for fence and battery voltage
| Ref. no. | PU | Pallet | € |
|---|---|---|---|
| 372201 | 1 | 33 PAL | 385.00 |
| Model | AD 2000 digital |
|---|---|
| Ref. no. | 372201 |
| Stored Energy | 3 J |
| max. discharge energy | 2.1 J |
| min. discharge energy | 0.5 J |
| max. voltage | 10500 V |
| Voltage in Open Circuit | 9600 V |
| Voltage at 500 Ohms | 5200 V |
| theoretical fence length as per VDE | 55 km |
| max. fence length without vegetation | 20 km |
| max. fence length with medium vegetation | 8 km |
| max. fence length with high vegetation | 3 km |
| Approx. Number of Electrifiable Nets | 8 |
| Qty 1 m earth posts | 2 |
| Power Consumption | 17 mA, 220 mA |
| Ref. no. | Description | Width | Depth | Height | PU | € |
|---|---|---|---|---|---|---|
| 375256 | Solar Panel | 37.5 cm | 2 cm | 56 cm | 1 | 179.00 |
Impact force and fence length: the AKO Mobil Power AD 2000 digital delivers 3 J of charging energy and 10,500 V of voltage and is suitable for fence systems up to 20 km without vegetation. INFO: remove vegetation regularly in order to avoid discharges and to increase the protective security

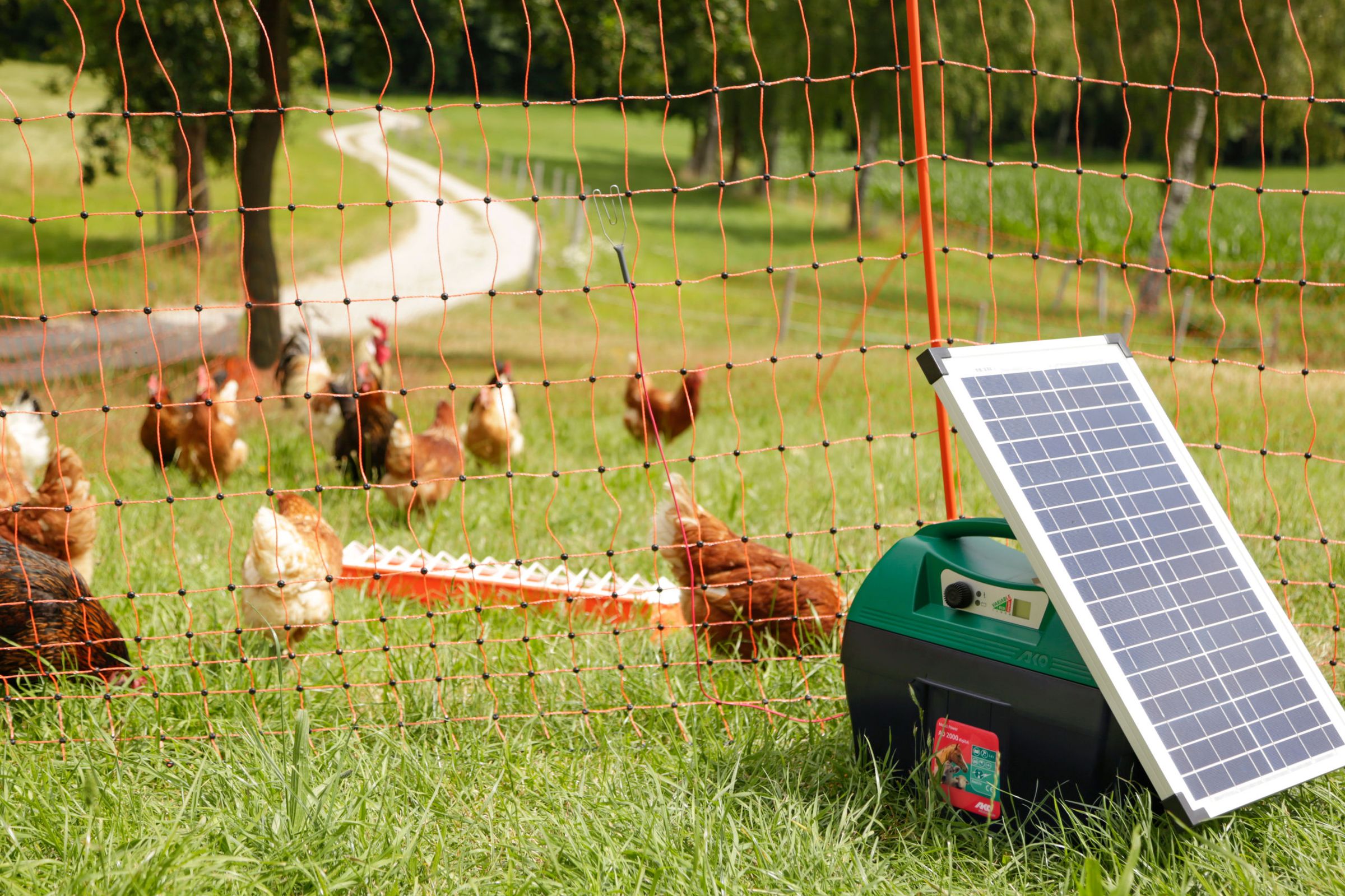

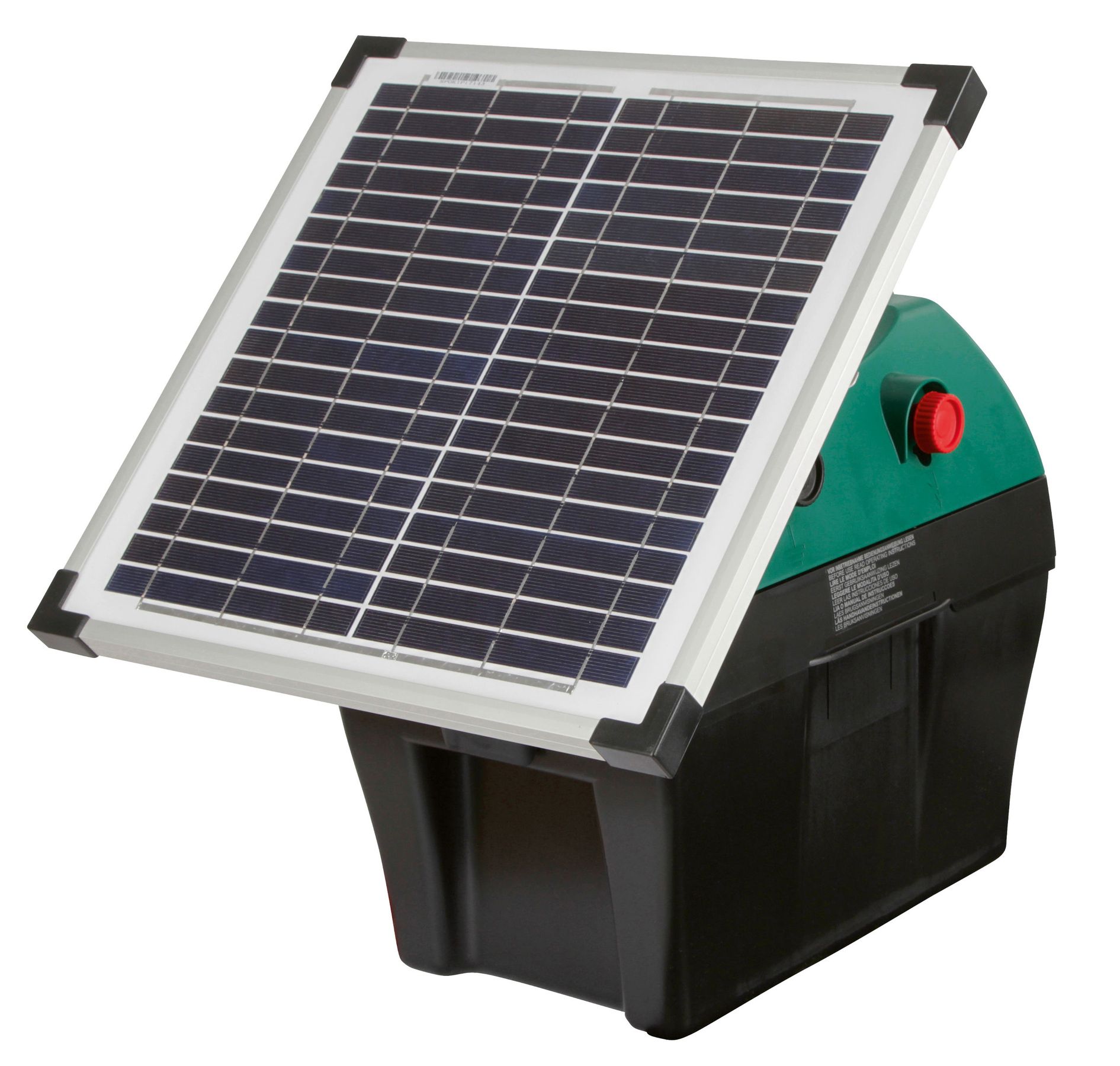

Power supply and animals: the 12 V battery unit can optionally be operated using a 9 V battery or a 230 V mains adapter. A 15 W solar module (item No. 375156) can be fitted directly. For horses, cattle, sheep, goats, poultry and herons
Functions: the device features a manual power level controller (1-20) plus the ON | OFF switch function. The integrated deep discharge protection prolongs the 12 V battery's lifespan with 12 V operation
Display: the fence device is equipped with a digital display for monitoring the set power level and the fence and battery voltage. Both voltages are also supported by an LED each

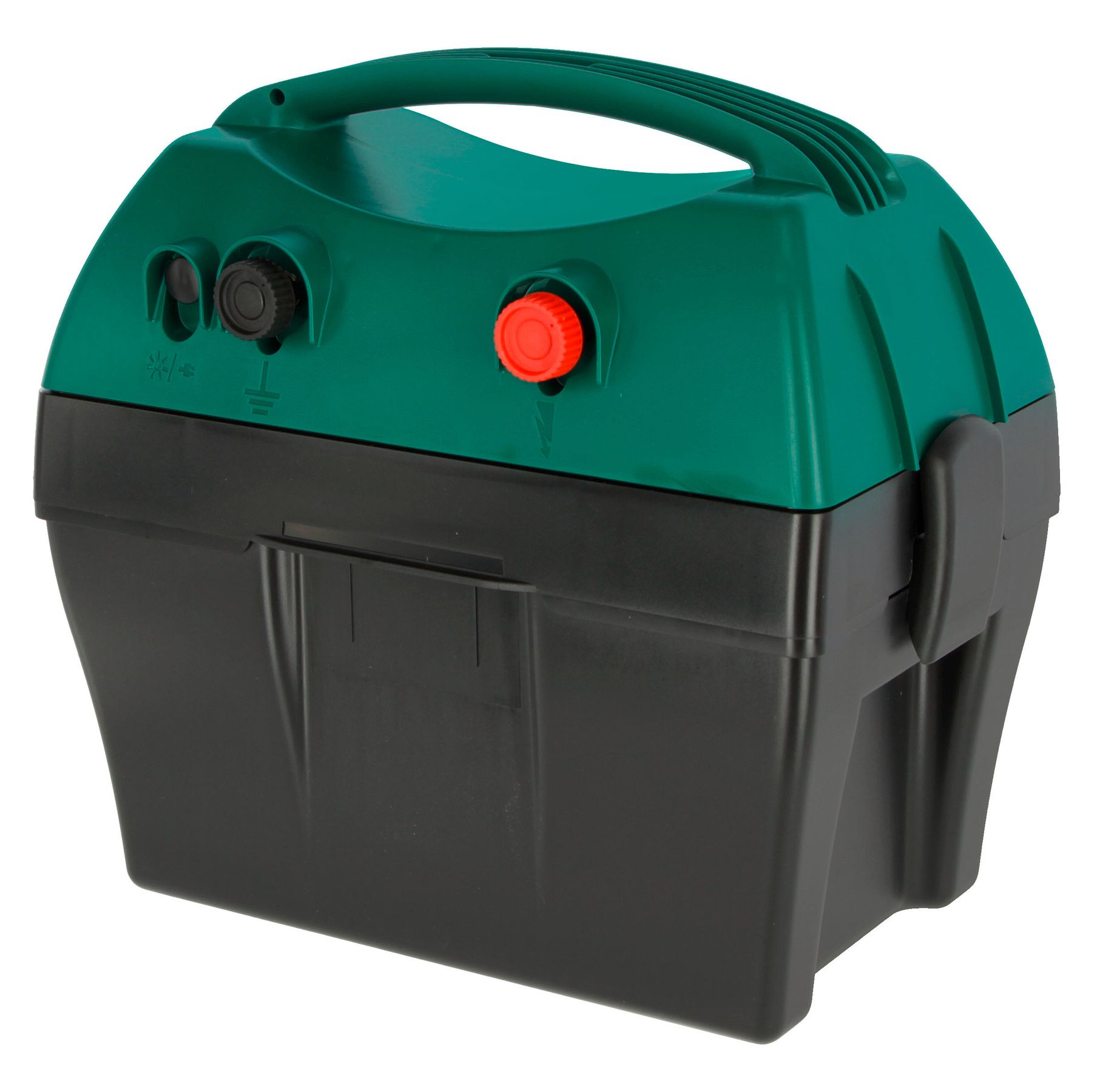

Housing and assembly: the robust housing made from impact-resistant, UV-resistant plastic is weather-resistant and long-lasting. A carrying handle allows mobile use. The battery holder protects 12 V batteries (max. 281 x 184 x 225 mm) and is secured using buckles
with 12 Volt full discharge protection
the shock strength can be steplessly adjusted with the manual controller (1 - 20)
can be operated via a 230-V power pack (371012 - not included)
integrated solar charge controller
digital display to indicate the fence voltage, battery voltage and power level
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
large battery container for the 12-Volt battery
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards
connection cable not included in the scope of delivery
Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com
- 1 x fence unit
- 1 x fence / ground connector cable
- 1 x warning sign
- 1 x 12 Volt connection cable (available separately, item number E263616)
- 1 x 9 Volt connection cable (available separately, item number E263617)
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
