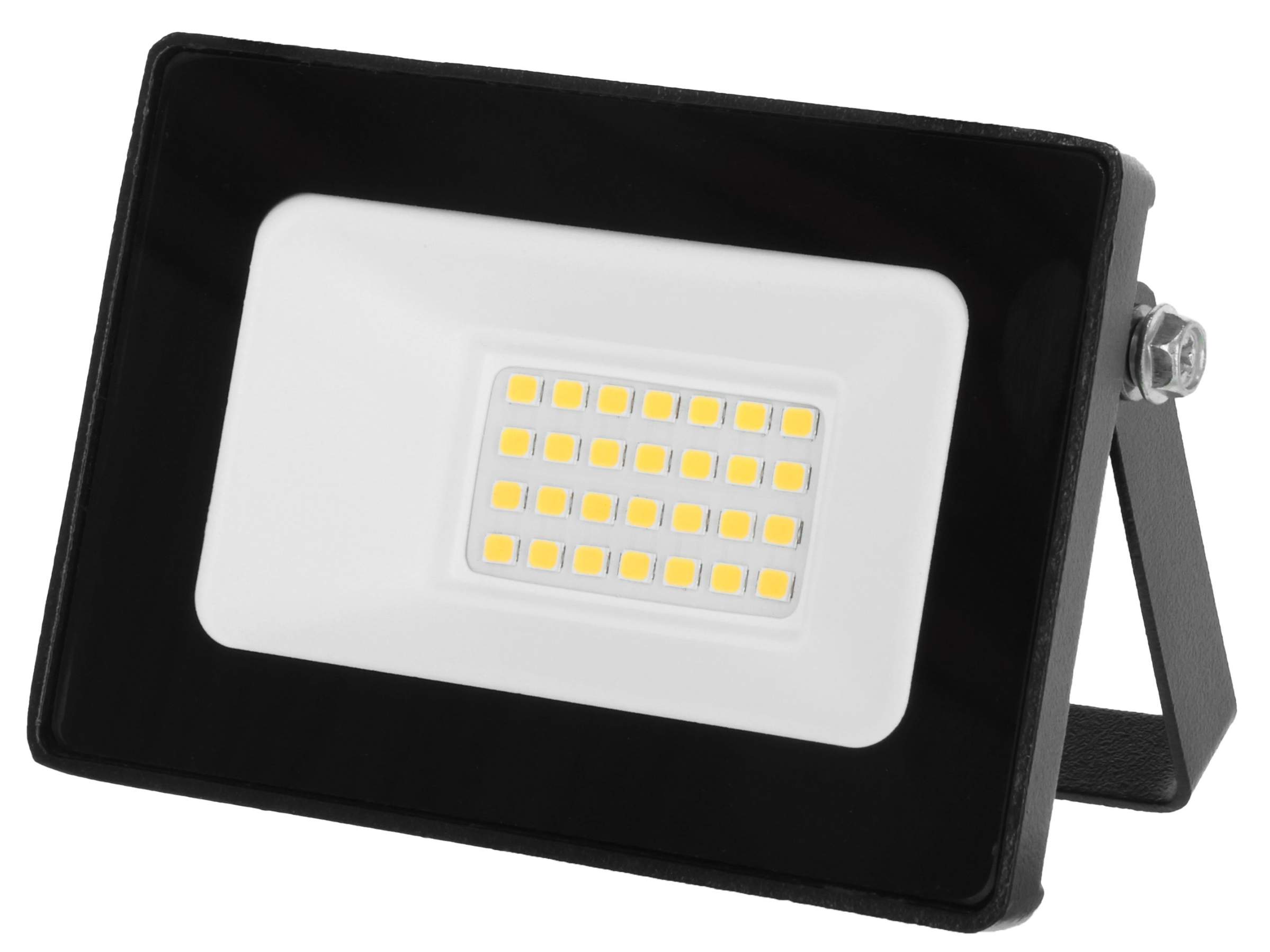

LED Outdoor Spotlight

Ref. no.	Description	Output	Width	Height	Depth	Dimming function	Luminous Flux	Colour Temperature	PU	Pallet
345660	without motion sensor	10 W	8.8 cm	3.2 cm	6.2 cm	cannot be dimmed	1200 lm	5000 K	1/50	1200 PAL
345661	without motion sensor	20 W	10 cm	3.5 cm	7 cm	cannot be dimmed	2400 lm	5000 K	1/30	1200 PAL
345662	without motion sensor	30 W	13.5 cm	3.5 cm	11 cm	cannot be dimmed	3600 lm	5000 K	1/20	600 PAL
345663	without motion sensor	50 W	18 cm	3.5 cm	14.3 cm	cannot be dimmed	6000 lm	5000 K	1/18	648 PAL
345664	without motion sensor	100 W	21 cm	16.5 cm	3.5 cm	cannot be dimmed	12000 lm	5000 K	1/10	350 PAL
345665	with motion detector	10 W	8.8 cm	4.5 cm	12.5 cm	cannot be dimmed	1200 lm	5000 K	1/40	960 PAL
345666	with motion detector	20 W	10 cm	5 cm	14 cm	cannot be dimmed	2400 lm	5000 K	1/30	540 PAL
345667	with motion detector	30 W	13.5 cm	5 cm	17.5 cm	cannot be dimmed	3600 lm	5000 K	1/30	540 PAL
345668	with motion detector	50 W	18 cm	5 cm	20.7 cm	cannot be dimmed	6000 lm	5000 K	1/16	384 PAL

Technical Data	345660	345661	345662	345663	345664	345665	345666	345667	345668
Voltage	220 V - 240 V	220 V - 240 V	220 V - 240 V	220 V - 240 V	220 V - 240 V	220 V - 240 V	220 V - 240 V	220 V - 240 V	220 V - 240 V
Mains Frequency	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz
Luminous Efficacy	120 lm/W	120 lm/W	120 lm/W	120 lm/W	120 lm/W	120 lm/W	120 lm/W	120 lm/W	120 lm/W
Light Angle (half Intensity Angle)	110 °	110 °	110 °	110 °	110 °	110 °	110 °	110 °	110 °
Chip Service Life (L70)	~ 30000 h	~ 30000 h	~ 30000 h	~ 30000 h	~ 30000 h	~ 30000 h	~ 30000 h	~ 30000 h	~ 30000 h
Material	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium
Colour Rendering (CRI)	Ra > 80	Ra > 80	Ra > 80	Ra > 80	Ra > 80	Ra > 80	Ra > 80	Ra > 80	Ra > 80
Cable Length	100 cm	100 cm	100 cm	100 cm	100 cm	100 cm	100 cm	100 cm	100 cm
Protection class (without motion sensor)	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Protection class (with motion sensor)	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44

Very versatile: The bright LED outdoor spotlight is available with or without motion sensor, and is ideally suited as a light source for barns, sheds, farmyards, gardens, and as stable lighting.

Flexibly adjustable: The adjustable installation bracket allows easy adjustment of the angle of the LED spotlight.

Robust and long-lasting: Thanks to the stable casing made of cast aluminium and safety glass, the spotlight is robust and long-lasting.

Suitable for external use: the LED outdoor spotlight complies with protection class IP65 and is therefore protected against the penetration of dust and splashes.

Distributor: Albert Kerbl GmbH, DE, 84428, Buchbach, Felizenzell 9, Email address is loading., www.kerbl.com
