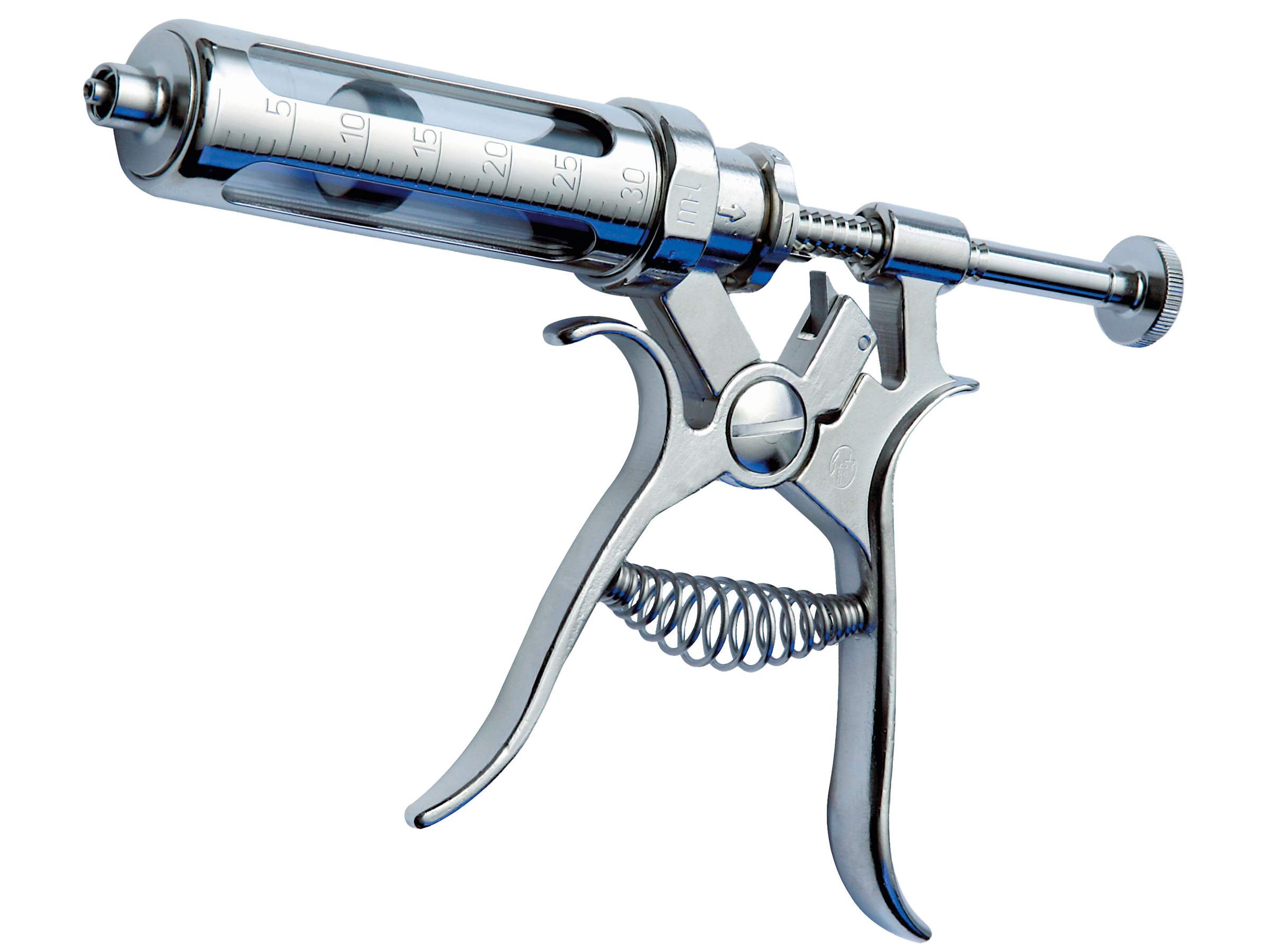

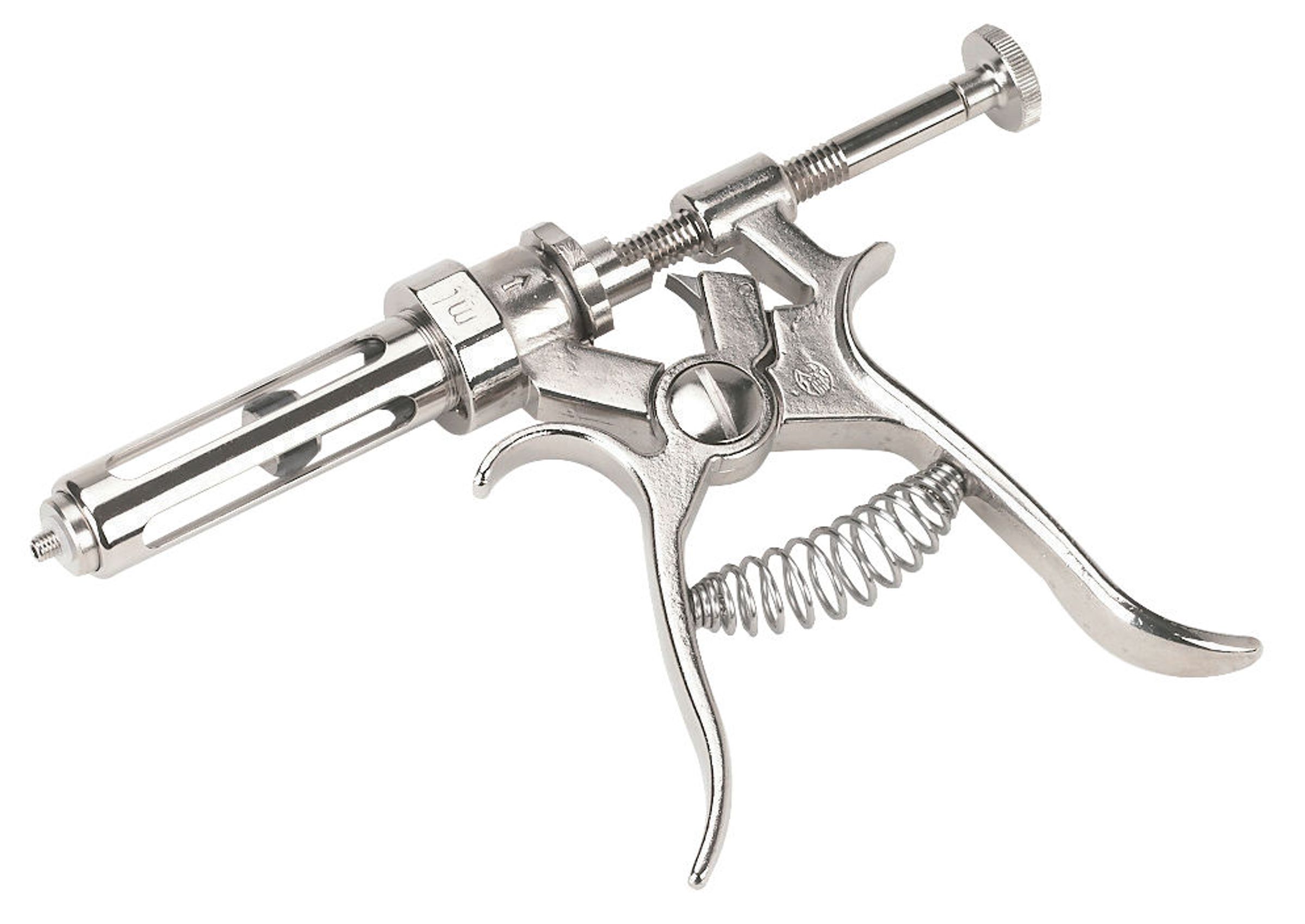

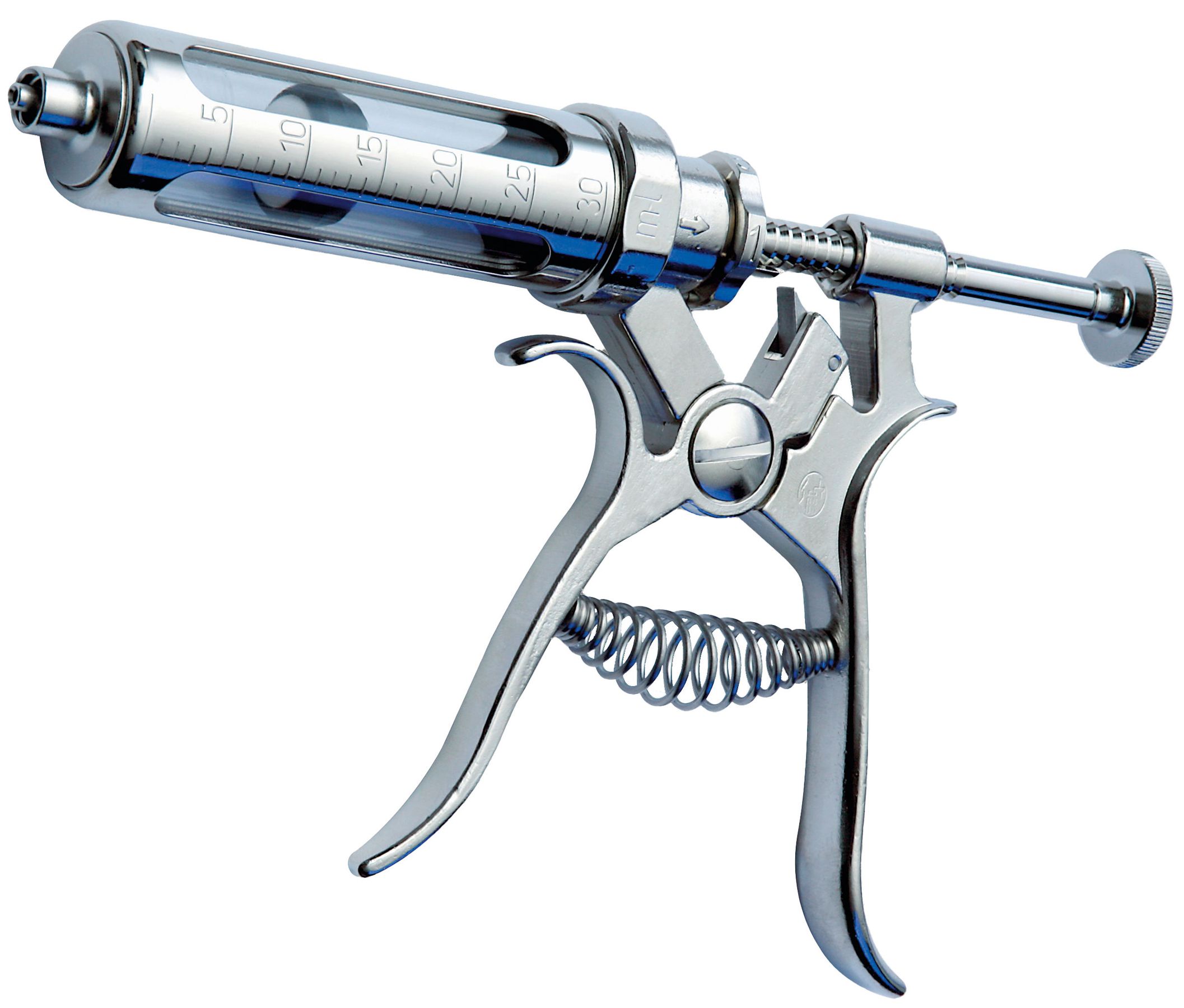

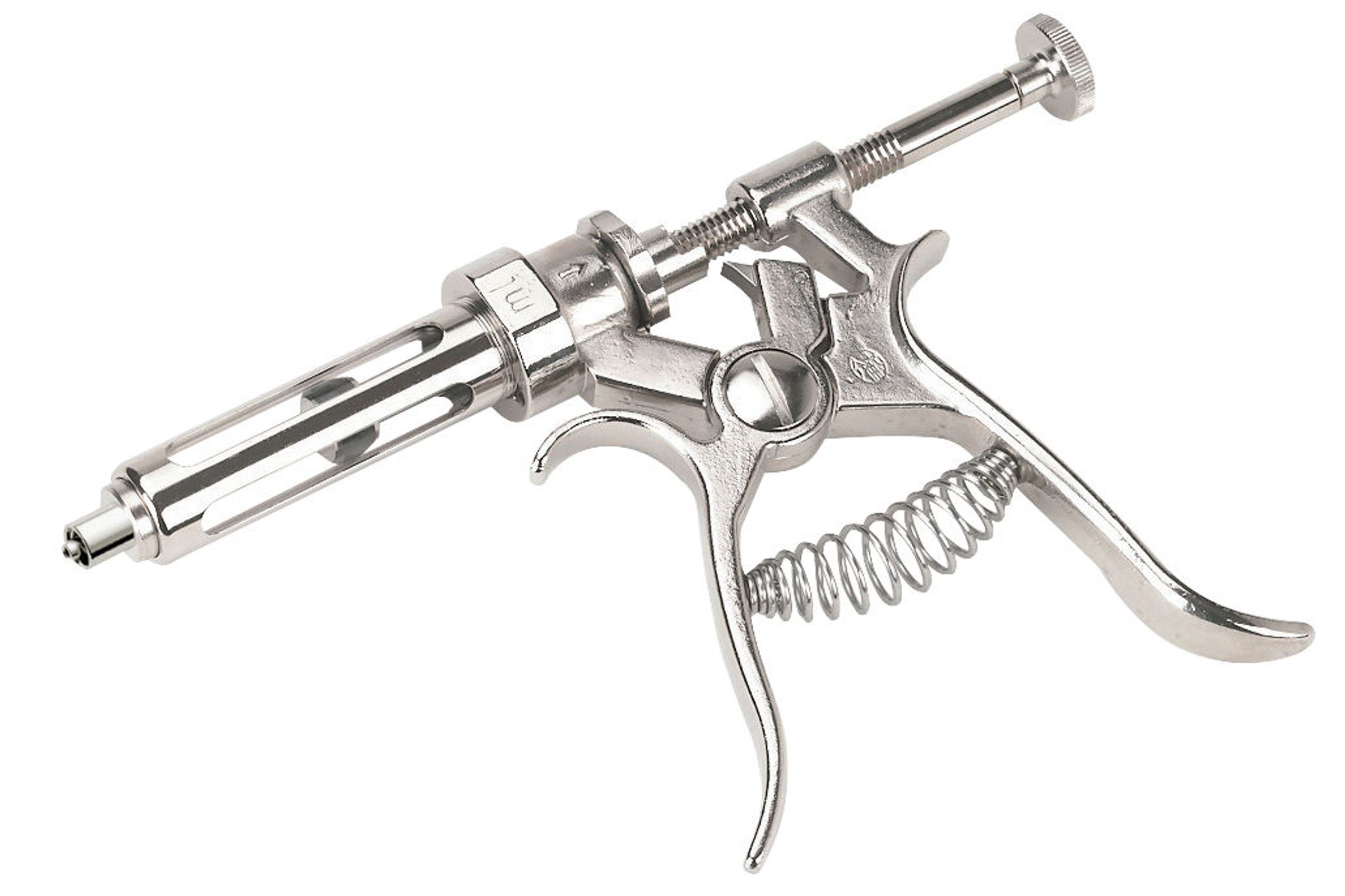

HSW ROUX-REVOLVER®

Proven metal and glass dosing syringe for serial immunisation since 1940.

  • brass chrome-plated and polished design
  • durit piston window sleeve
  • ideal for mass vaccinations
  • with tensible piston
  • choose between threaded or Luer lock attachment

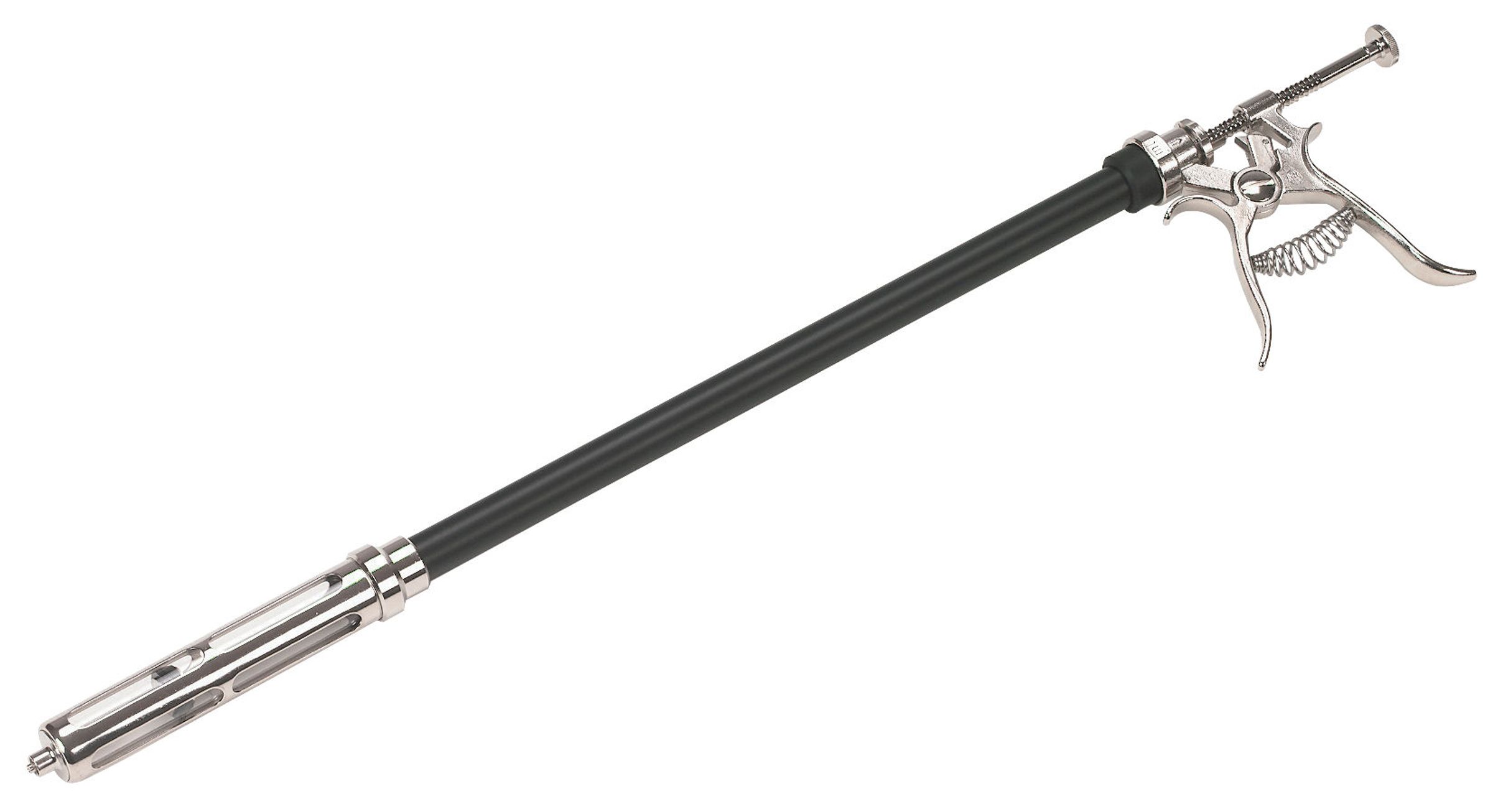

  • also available in an extended version
  • dosage settings: dividing plate

Retailer web shop

Ref. no.Cannula AttachmentCapacityGraduationDosageExtensionPU
231Thread Attachment10 mlnot graduated1/50
233Thread Attachment30 ml0,5 ml0.5 ml - 2.5 ml1/50
232Thread Attachment30 ml1 ml1 ml - 5 ml1/50
2317Thread Attachment30 ml1 ml1 ml - 5 mlwith extension1/10
234Thread Attachment50 ml1 ml1 ml - 5 ml1/50
237Thread Attachment50 ml1 ml1 ml - 5 mlwith extension1/10
235Luer lock attachment10 mlnot graduated1/50
23600Luer lock attachment30 ml0,5 ml0.5 ml - 2.5 ml1/50
236Luer lock attachment30 ml1 ml1 ml - 5 ml1/50
23602Luer lock attachment50 ml1 ml1 ml - 5 ml1/50
238Luer lock attachment50 ml1 ml1 ml - 5 mlwith extension1/10

The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
