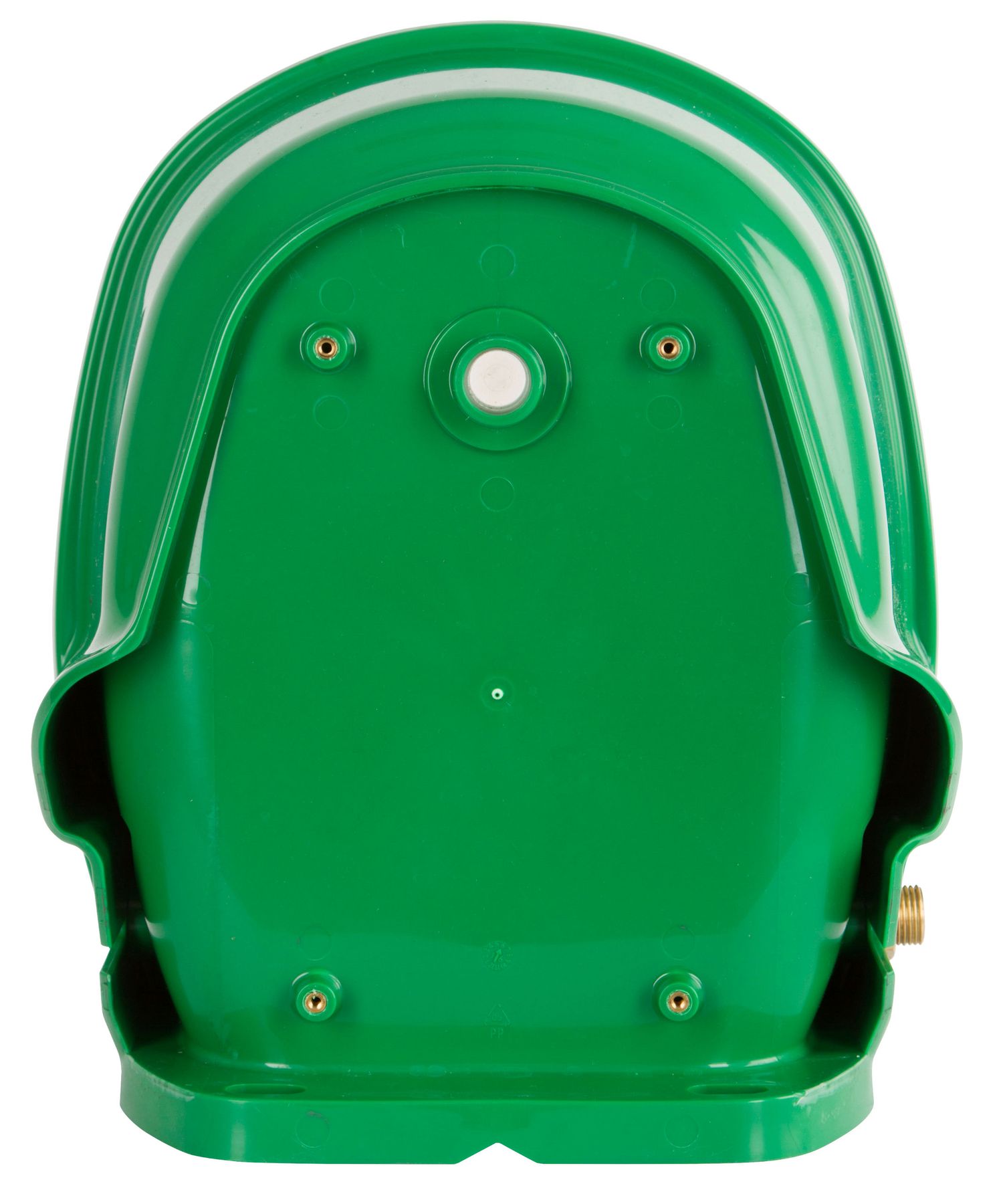

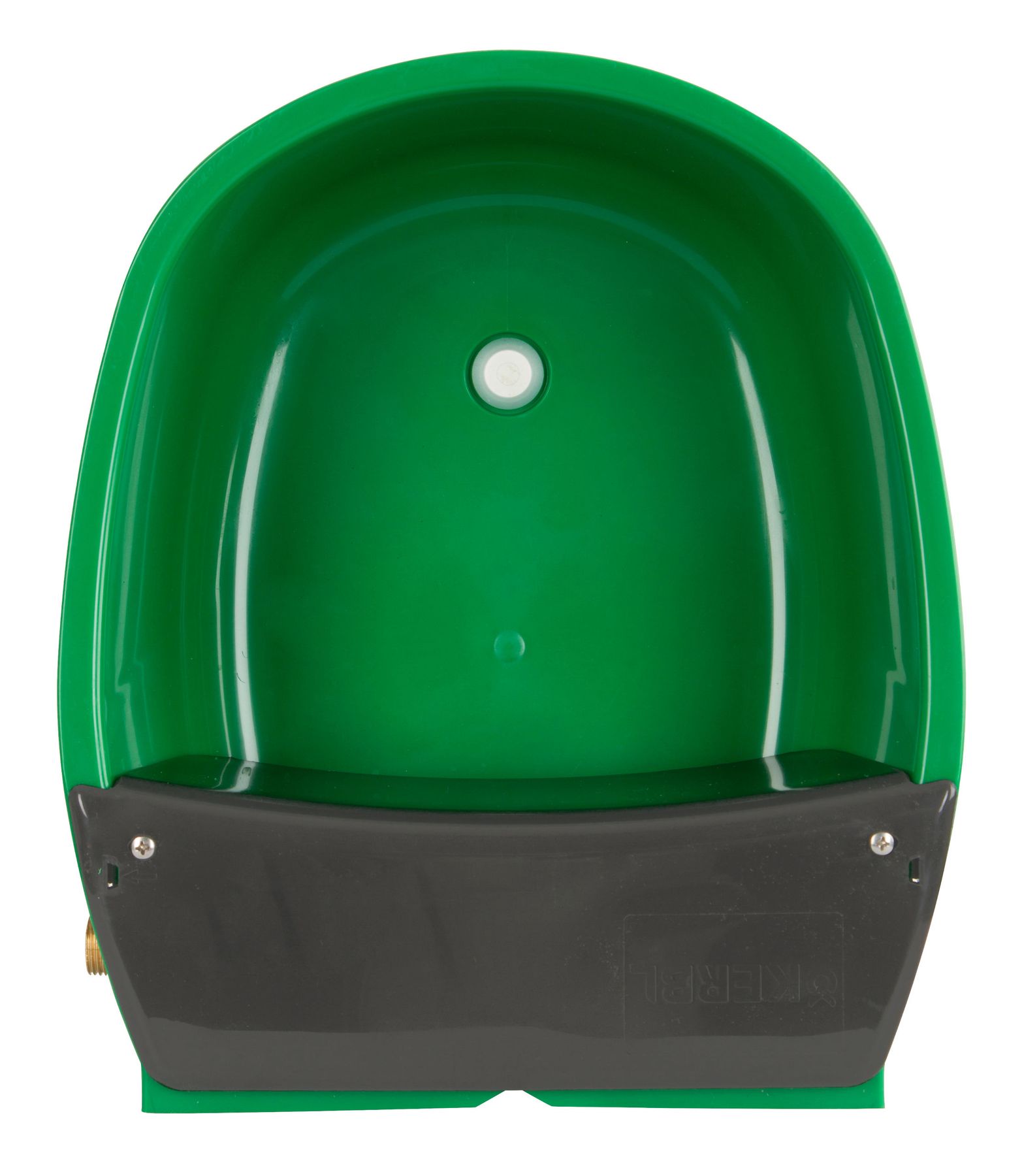

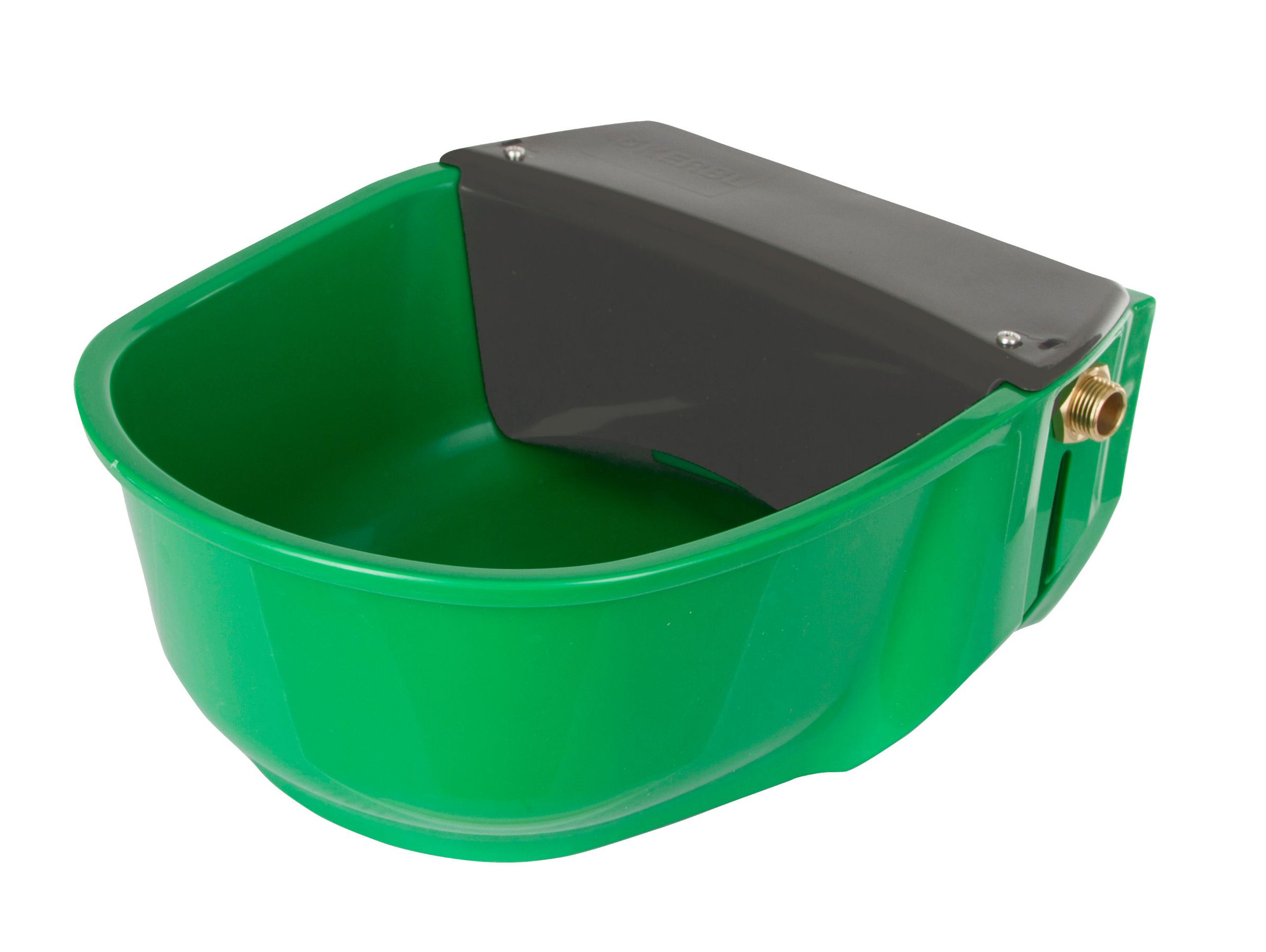

Float Bowl S30
- water bowl made from high-quality plastic
- Supplied with high-pressure float valve (22192)
- with valve type 22182 also suitable for connection to low pressure
- valve cover with snap hook for rapid access
- for wall and pipe mounting
- with drain plug
also available as a heated variant
Retailer web shop
| Ref. no. | Colour | Water Connection | Capacity | PU | Pallet | € |
|---|
| 222070 | green | G 1/2" | 5 L | 1 | 42 PAL | 63.49 |
| Technical Data | 222070 |
|---|
| Dimensions (W x D x H) | 29,4 cm x 34 cm x 16,1 cm |
| Connection option | from left or right |
| Flow rate | 6.5 L/min, at 3 bar |
| Weight | 2.3 kg |
| Ref. no. | Description | Material | Frame Height | PU | € |
|---|
| 22182 | Floating Valve Low Pressure | | | 1/50 | 15.99 |
| 22192 | Floating Valve High Pressure | | | 1/50 | 18.99 |
| 22192-SP | Floating Valve High Pressure | | | 1 |
| 221973 | Guard Size 3 | hot-dip galvanised metal | 22 cm | 1/4 | 34.99 |
| 222019 | Pipe Mounting Brackets, in pairs | metal, powder-coated | | 1 | 21.99 |
| 2220405 | Outlet Seal | Plastic | | 1/30/450/720 | .89 |
Distributor: Albert Kerbl GmbH, DE, 84428, Buchbach, Felizenzell 9, Email address is loading., www.kerbl.com
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
