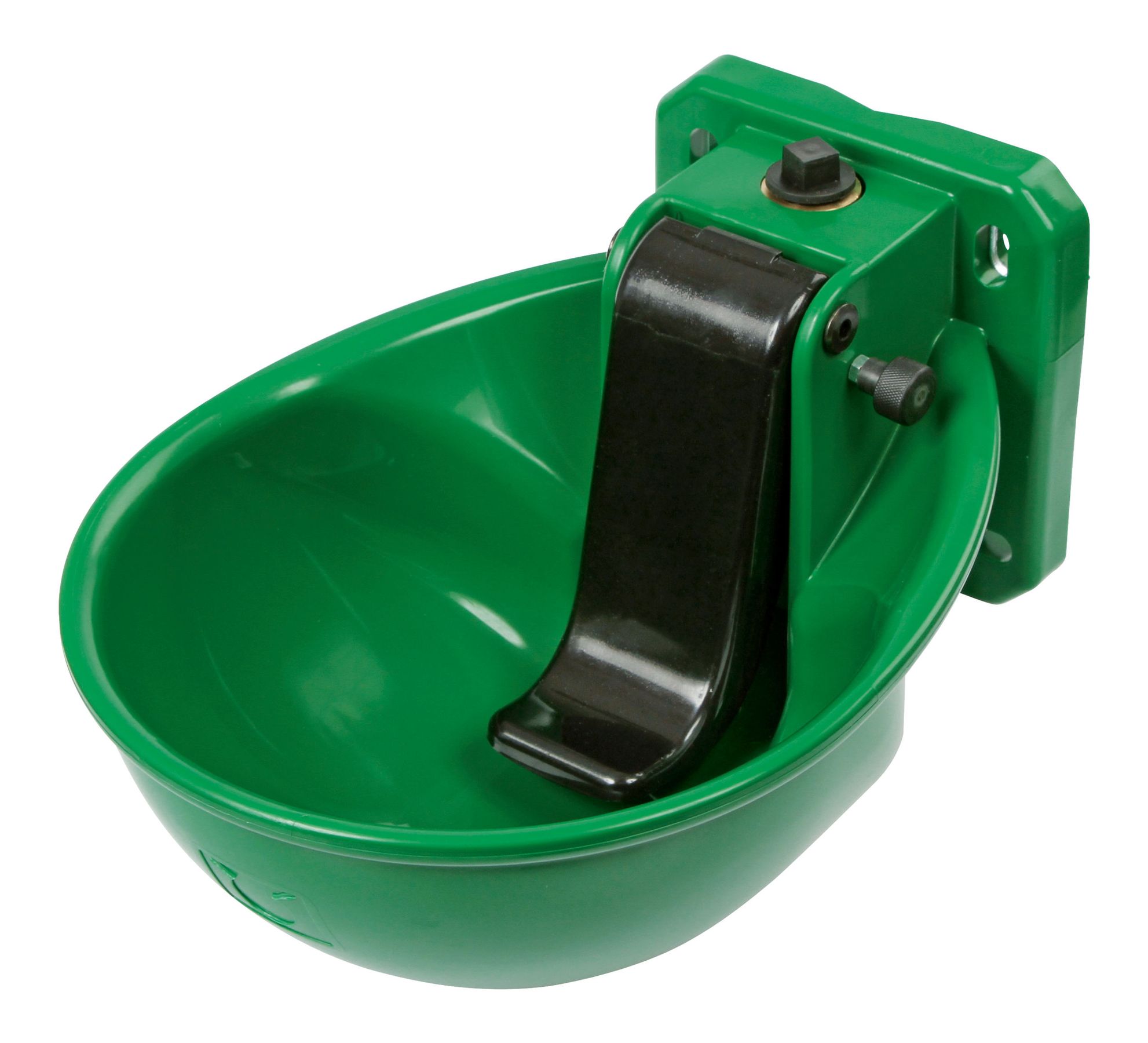

Drinking Bowls K71
- high-quality drinking bowl made of durable plastic
- deep bowl for sufficient water supply of dairy and beef cattle
- specially integrated brass pipe connector ensures a safe connection to the water pipe
- smooth and retractable nose paddle allows optimum water intake
- extremely stable mounting on wall or tube with metal reinforcing
- with valve no. 223437 also suitable for connection to low pressure
- 4 elongated holes for variable fastening
- lockable paddle
Retailer web shop
| Ref. no. | Colour | Water Connection | Capacity | PU | Pallet | € |
|---|
| 221871 | green | G 1/2" | 2.4 L | 1 | 72 PAL | 47.29 |
| Technical Data | 221871 |
|---|
| Dimensions (W x D x H) | 22,6 cm x 30,5 cm x 16,5 cm |
| Connection option | from above or below |
| Water Flow Rate | 3-way adjustable |
| Flow rate | 7.5 L/min, 11 l/min (3 bar) |
| Ref. no. | Description | Colour | Material | Connection | suitable for | Frame Height | PU | € |
|---|
| 221970 | Guard Size 1 | | hot-dip galvanised metal | | | 20 cm | 1/4 | 29.99 |
| 22209 | Sealing Plug | black | Plastic | G 1/2" | 221500, 221800, 222000, 222500, 222005, 222010 | | 1/200/1000 | .99 |
| 223426 | Valve high-pressure | | Brass | | | | 1/20/200 | 13.99 |
| 223437 | Valve low-pressure | | Plastic | | | | 1/100/400 | 11.99 |
| 22501 | Tube Mounting Bracket with Stabilising Plates in pairs | | Metal | | | | 1/25 | 12.89 |
Distributor: Albert Kerbl GmbH, DE, 84428, Buchbach, Felizenzell 9, Email address is loading., www.kerbl.com
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
