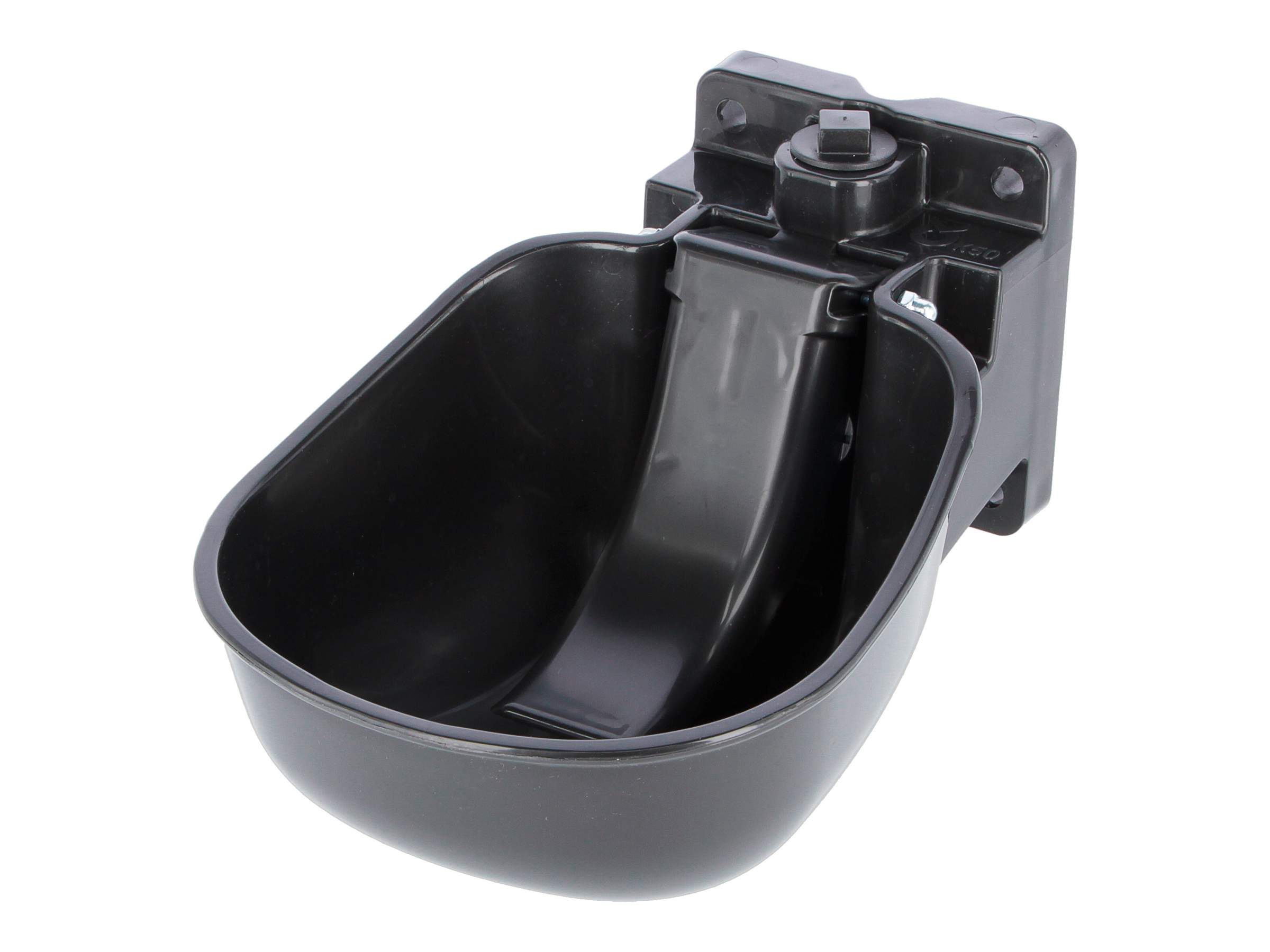

Drinking Bowls K50
- water bowl made from high-quality plastic
- lockable tongue (separate accessory)
- 4-hole fastening
- suitable for 1/2" and 3/4" connections
- fastening material not included
- for wall and pipe mounting
suitable for 1/2" and 3/4" connections
Retailer web shop
| Ref. no. | Description | Colour | Water Connection | Capacity | MOQ | Pieces / unit | PU | Pallet | € |
|---|
| 225030 | neutral presentation | blue | G 1/2"/G 3/4" | 2.2 L | | | 1 | 120 PAL | 31.19 |
| 225031 | Kerbl design | green | G 1/2"/G 3/4" | 2.2 L | | | 1 | 120 PAL | 31.19 |
| 225032 | Kerbl design | olive green | G 1/2"/G 3/4" | 2.2 L | | | 1 | 120 PAL | 31.19 |
| 225033 | neutral presentation | black | G 1/2"/G 3/4" | 2.2 L | 2 pieces | 2 / box | 1/2 | 160 PAL | 27.99 |
| Technical Data | 225030 | 225031 | 225032 | 225033 |
|---|
| Dimensions (W x D x H) | 21 cm x 30,2 cm x 17 cm | 21 cm x 30,2 cm x 17 cm | 21 cm x 30,2 cm x 17 cm | 21 cm x 30,2 cm x 17 cm |
| Connection option | from above or below | from above or below | from above or below | from above or below |
| Water Flow Rate | 3-way adjustable | 3-way adjustable | 3-way adjustable | 3-way adjustable |
| Flow rate | 7.5 L/min, 11 l/min (3 bar) | 7.5 L/min, 11 l/min (3 bar) | 7.5 L/min, 11 l/min (3 bar) | 7.5 L/min, 11 l/min (3 bar) |
| Weight | 950 g | 950 g | 950 g | 950 g |
| Ref. no. | Description | Colour | Material | Connection | Frame Height | PU | € |
|---|
| 2218606 | Sealing Plug | black | Plastic | G 3/4" | | 1/200 | 1.99 |
| 221971 | Guard Size 2 | | hot-dip galvanised metal | | 20 cm | 1/4 | 31.99 |
| 223426 | Valve high-pressure | | Brass | | | 1/20/200 | 13.99 |
| 22501 | Tube Mounting Bracket with Stabilising Plates in pairs | | Metal | | | 1/25 | 12.89 |
| 225034 | Nose Paddle | black | Plastic | | | 1/40 | 4.79 |
| 2250341 | Panel Lock for Drinking Trough K50 | | | | | 1/50/500 | 3.69 |
Distributor: Albert Kerbl GmbH, DE, 84428, Buchbach, Felizenzell 9, Email address is loading., www.kerbl.com
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
