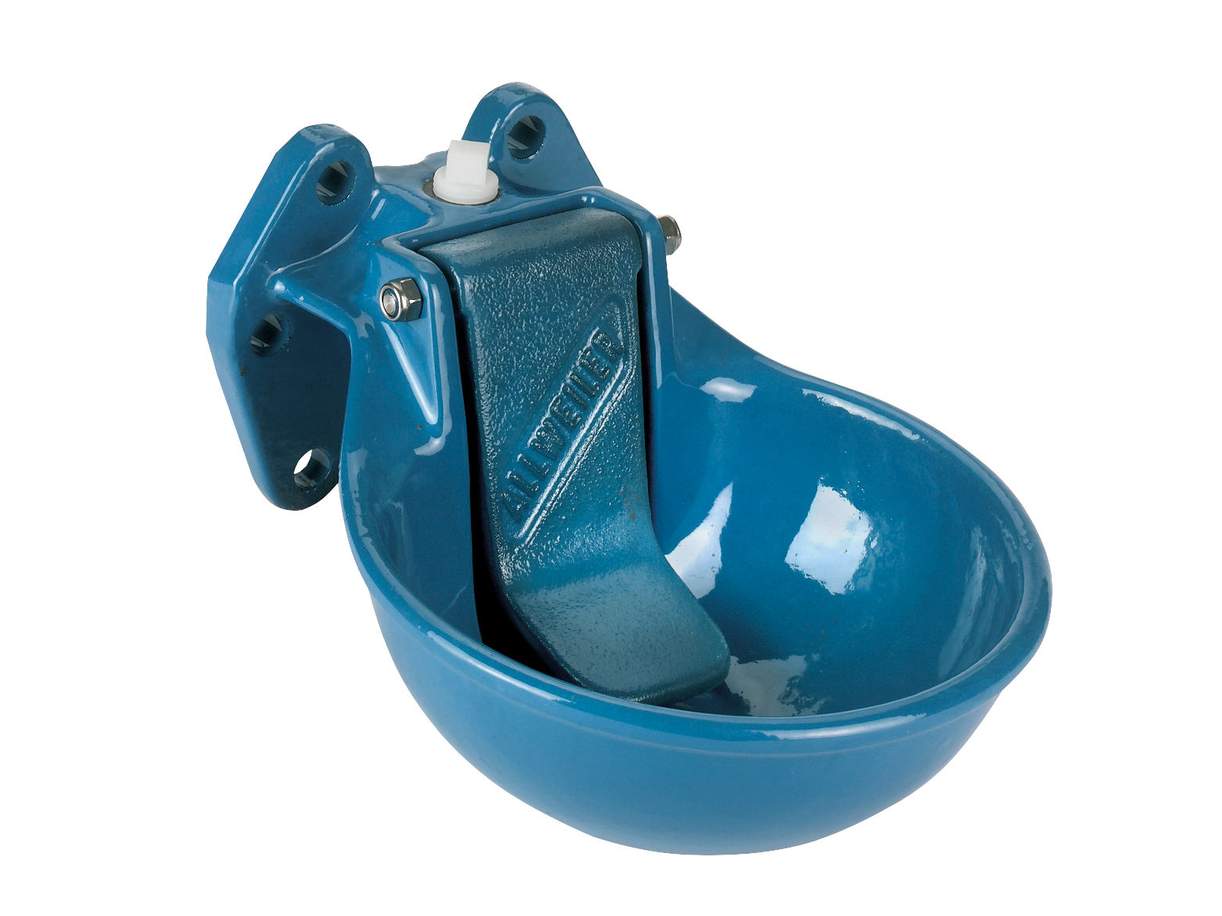

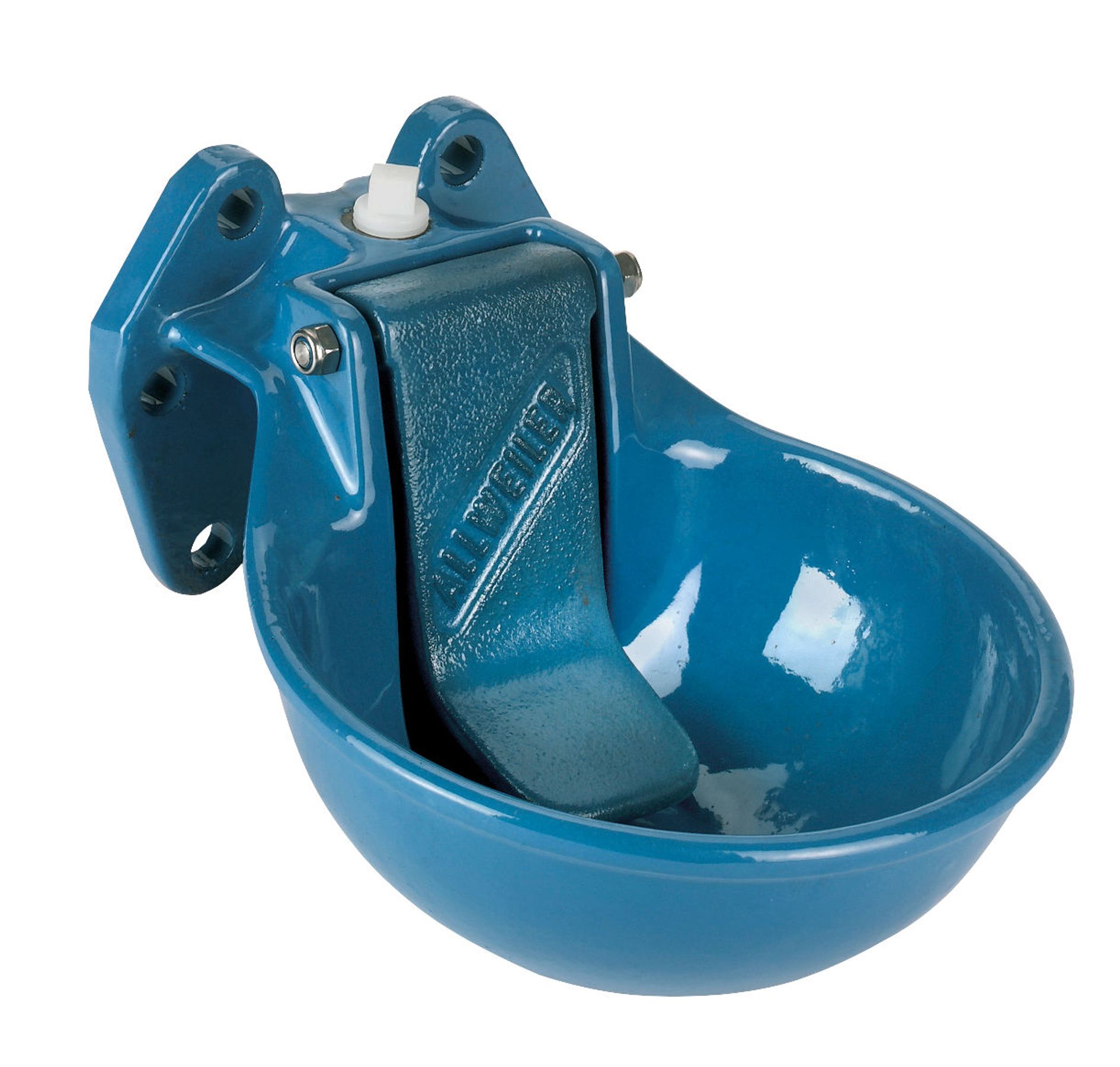

Drinking Bowls Hosp-Allweiler K/2
- drinking bowl made of high-quality cast iron, enamelled, R 1/2
- brass valve with exchangeable threaded nozzles for optional high or low pressure
- pressure flap made of cast iron, enamelled, with lateral locking device
- use item no. 22365 for pipe installation of 1 1/4” to 2”

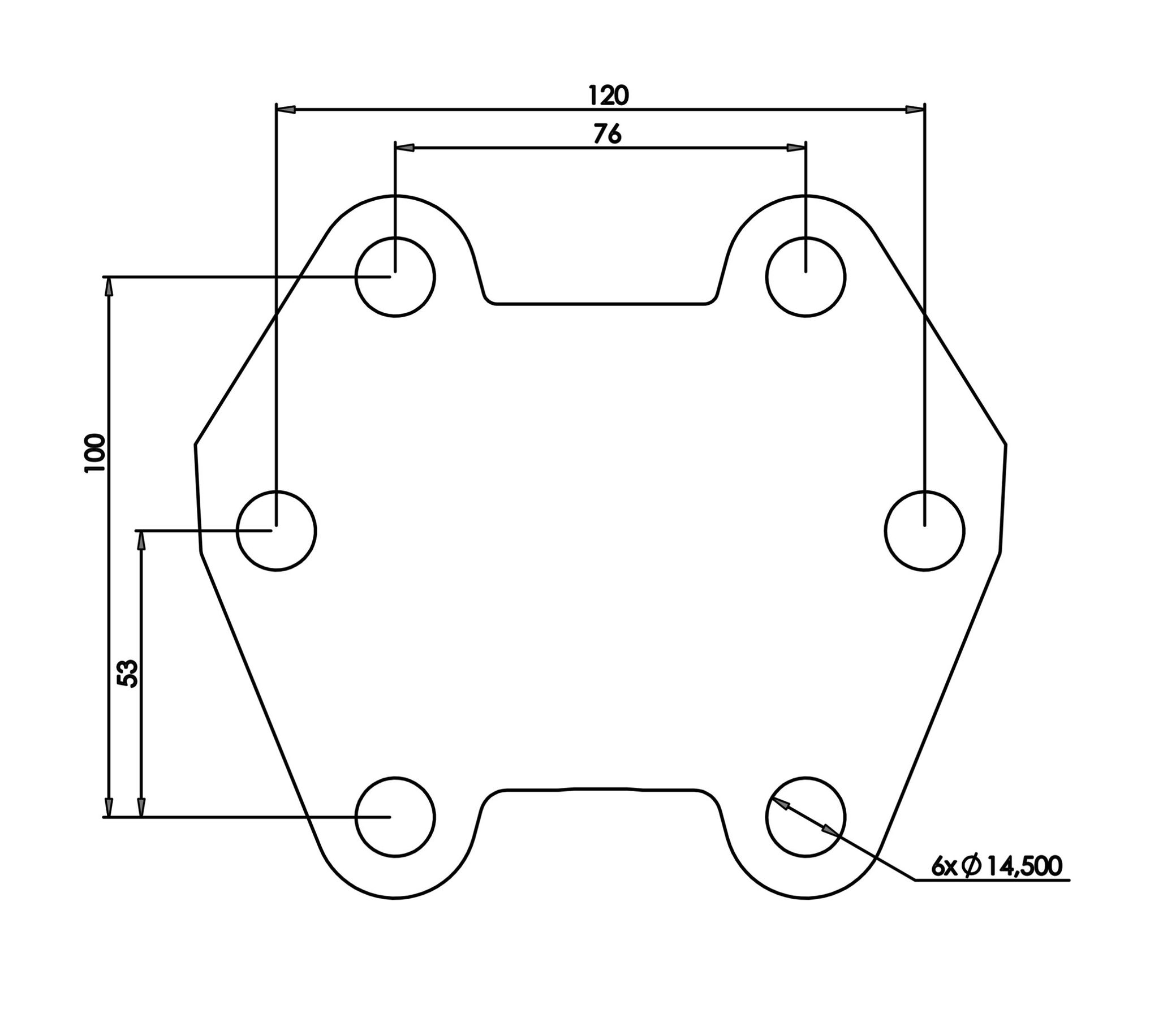

- 4-hole fastening
- proven brass valve, interchangeable (without changing the piping) - valve assembly as per DIN 1988
- silent water outlet, non-splashing, no back-stroking in the tube, therefore no frightened animals
Retailer web shop
| Ref. no. | Colour | PU | Pallet | € |
|---|
| 22465 | blue | 1 | 96 PAL | 105.00 |
| Technical Data | 22465 |
|---|
| Connection option | from above or below |
| Ref. no. | Description | Colour | Material | Connection | suitable for | Frame Height | PU | € |
|---|
| 221970 | Guard Size 1 | | hot-dip galvanised metal | | | 20 cm | 1/4 | 29.99 |
| 22209 | Sealing Plug | black | Plastic | G 1/2" | 221500, 221800, 222000, 222500, 222005, 222010 | | 1/200/1000 | .99 |
| 223410 | Valve Cone ALLWEILER | | Plastic | | | | 1/2000 | 4.99 |
| 223411 | Valve Allweiler | | | | | | 1/25/150 | 21.99 |
| 223419 | Tension Arm Set 1 1/4" and 1 1/2" | | | | | | 1 | 18.99 |
| 223420 | Tension Arm Set 2" | | | | | | 1 | 19.99 |
| 223426 | Valve high-pressure | | Brass | | | | 1/20/200 | 13.99 |
| 223427 | Valve Cone ALLWEILER | | Brass | | | | 1/1000 | 2.99 |
| 22365 | Pipe Mounting Brackets, in pairs | | Metal | | | | 1/25 | 5.89 |
Distributor: Albert Kerbl GmbH, DE, 84428, Buchbach, Felizenzell 9, Email address is loading., www.kerbl.com
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
