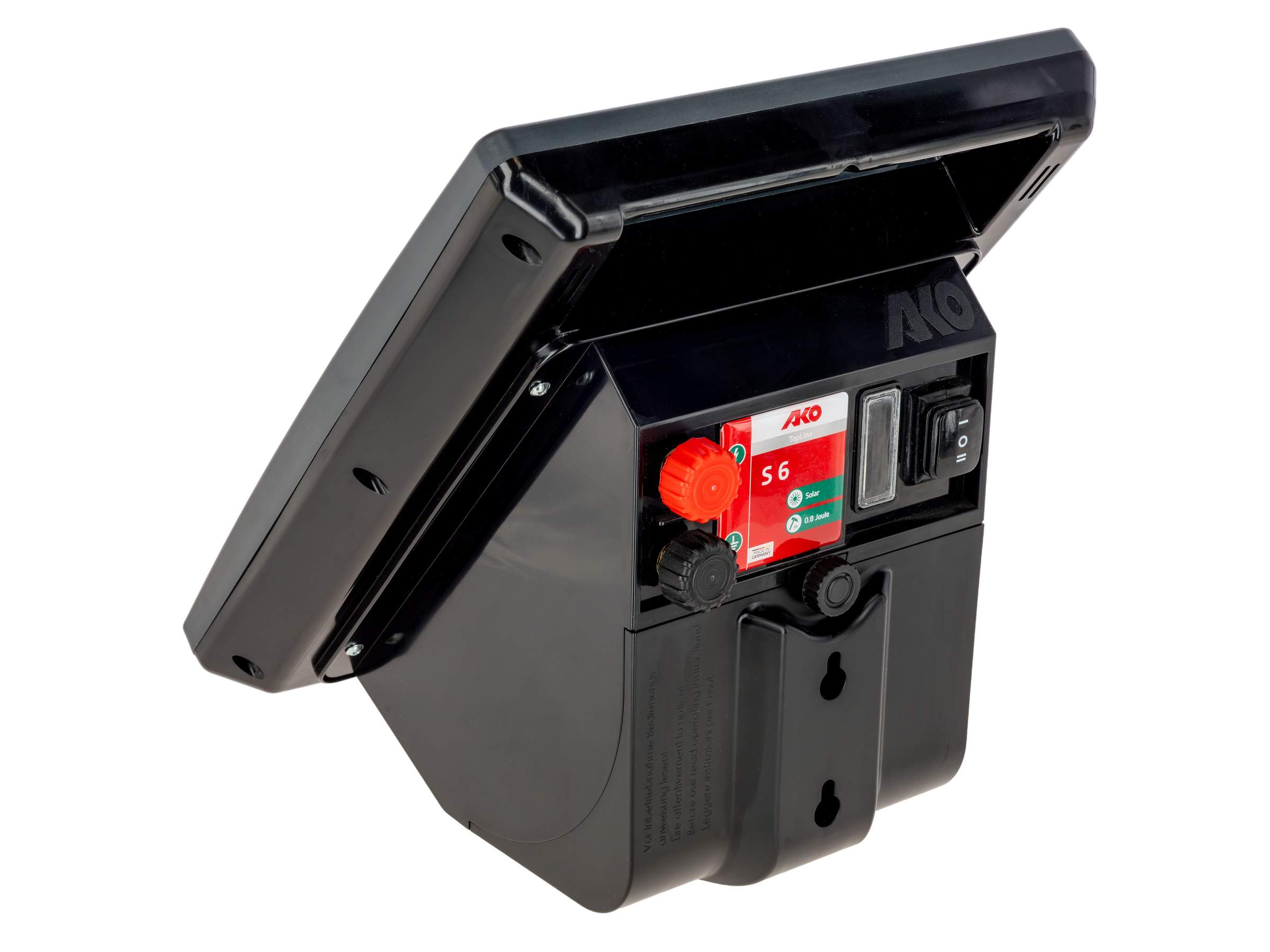

AKO S 6
- highly effective solar device for normal fences without vegetation
- ideal for horse and cattle paddocks
- 5-year warranty*
function indicator LED (green) plus solar operation LED (blue) plus battery warning LED (red)
Important: If ground is dry, several additional ground rods must be used.
| Ref. no. | PU | Pallet | € |
|---|---|---|---|
| 372948 | 1 | 50 PAL | 299.00 |
| Model | S 6 |
|---|---|
| Ref. no. | 372948 |
| Stored Energy | 0.8 J |
| max. discharge energy | 0.6 J |
| max. voltage | 10800 V |
| Voltage in Open Circuit | 10200 V |
| Voltage at 500 Ohms | 4300 V |
| theoretical fence length as per VDE | 18 km |
| max. fence length without vegetation | 6 km |
| max. fence length with medium vegetation | 1.7 km |
| max. fence length with high vegetation | 0.2 km |
| Qty 1 m earth posts | 1 |
| Power Consumption | 31 mA, 43 mA |
Impact force and fence length: the AKO Sun Power S 500 is equipped with a charging energy of 0.75 J and a maximum voltage of 10,800 V. The device is used for fence systems up to 6 km without vegetation.
Power supply and animals: the device is a 12 V solar fence device which is operated with a 12 V battery. The permanently installed 8-Watt solar module supports the battery. Ideal for horses, cattle, poultry, dogs, cats & hares.
Functions: the device is equipped with a I-0-II level switch (I=ON-Low - fence voltage weak | 0=OFF | II=ON-High - fence voltage powerful).
Display: The device is equipped with 3 LEDs. Green: Device function indicator light (the fence device is ON and working). Blue: Solar operating light (the solar module supplies power). Red: Battery warning light (please recharge the battery).
Housing and assembly: the robust housing made from UV-resistant plastic is weather-resistant and long-lasting. The carrying handle makes the device mobile and flexible. The guide channel integrated in the housing enables quick mounting on the metal post.
optimised for permanent, maintenance-free operation right through the main pasture season
with High/Low/Off switch
power saving switch for when battery voltage fails
integrated lightning protection
intelligent, modern battery management with deep discharge protection – device functions even during extended periods of bad weather
excellent level of efficiency – therefore a longer battery life
very robust, weather-resistant, water-tight casing with carrying handle
fast and easy to install
channel integrated into the housing for post mounting
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards
Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com
- 1 x compact solar device S 6 (fully assembled) *
- 1 x AGM battery, 12 Volt, 7 Ah (441130)*
- 1 x permanently mounted, crystalline solar module, 12 Volt, 8 Watt *
- 1 x 230 volt battery mains charger (371032)
- 1 x fence connector cable
- 1 x ground connector cable
- 1 x two-part ground/installation spear (442385)
- 1 x warning sign
- * Warranty: solar fence device (5 year warranty), solar module (5 year performance warranty), 12 volt battery (6 month warranty)
- Warning notice:
- Important: If ground is dry, several additional ground rods must be used.
