Sun Power S 4000 smart

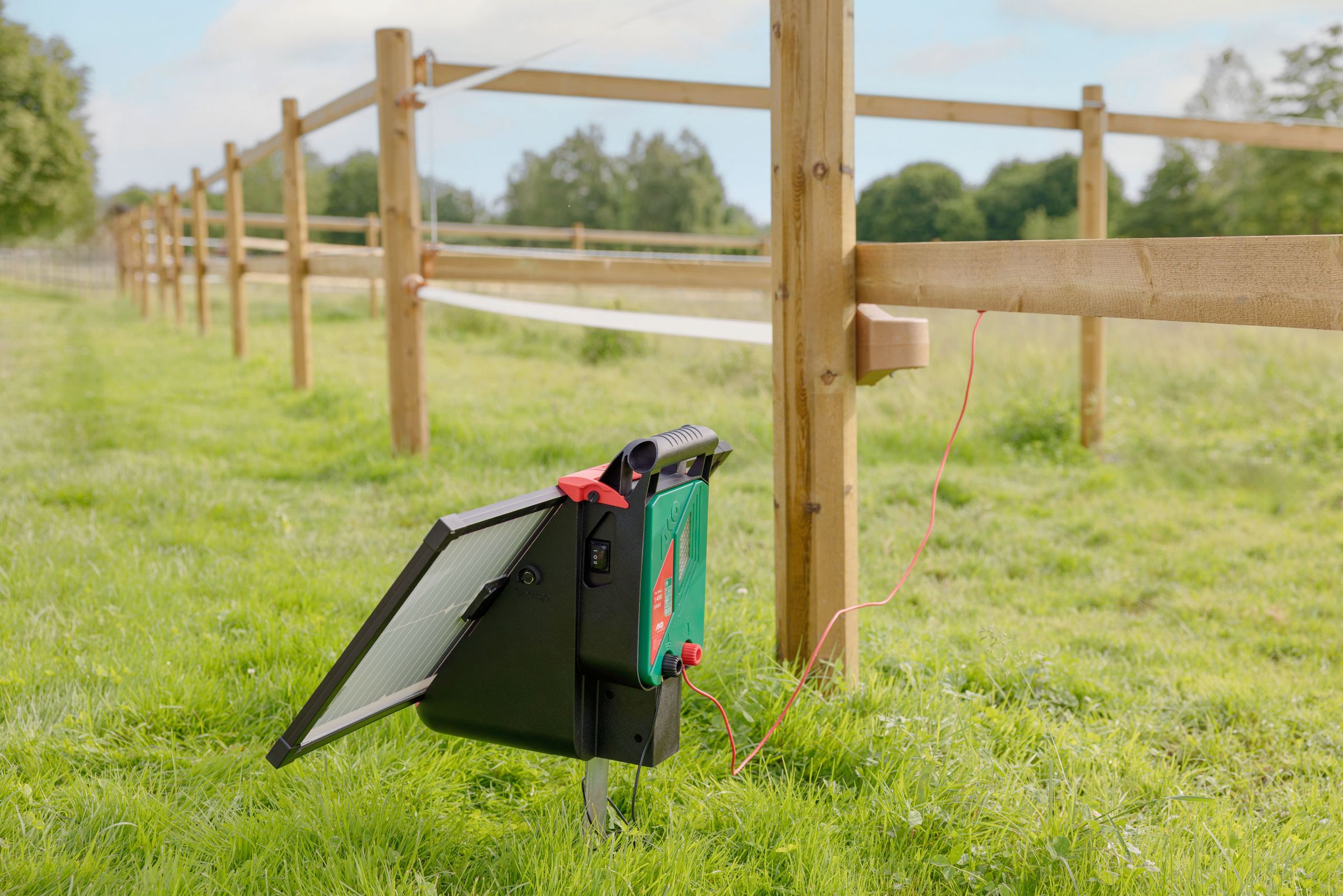

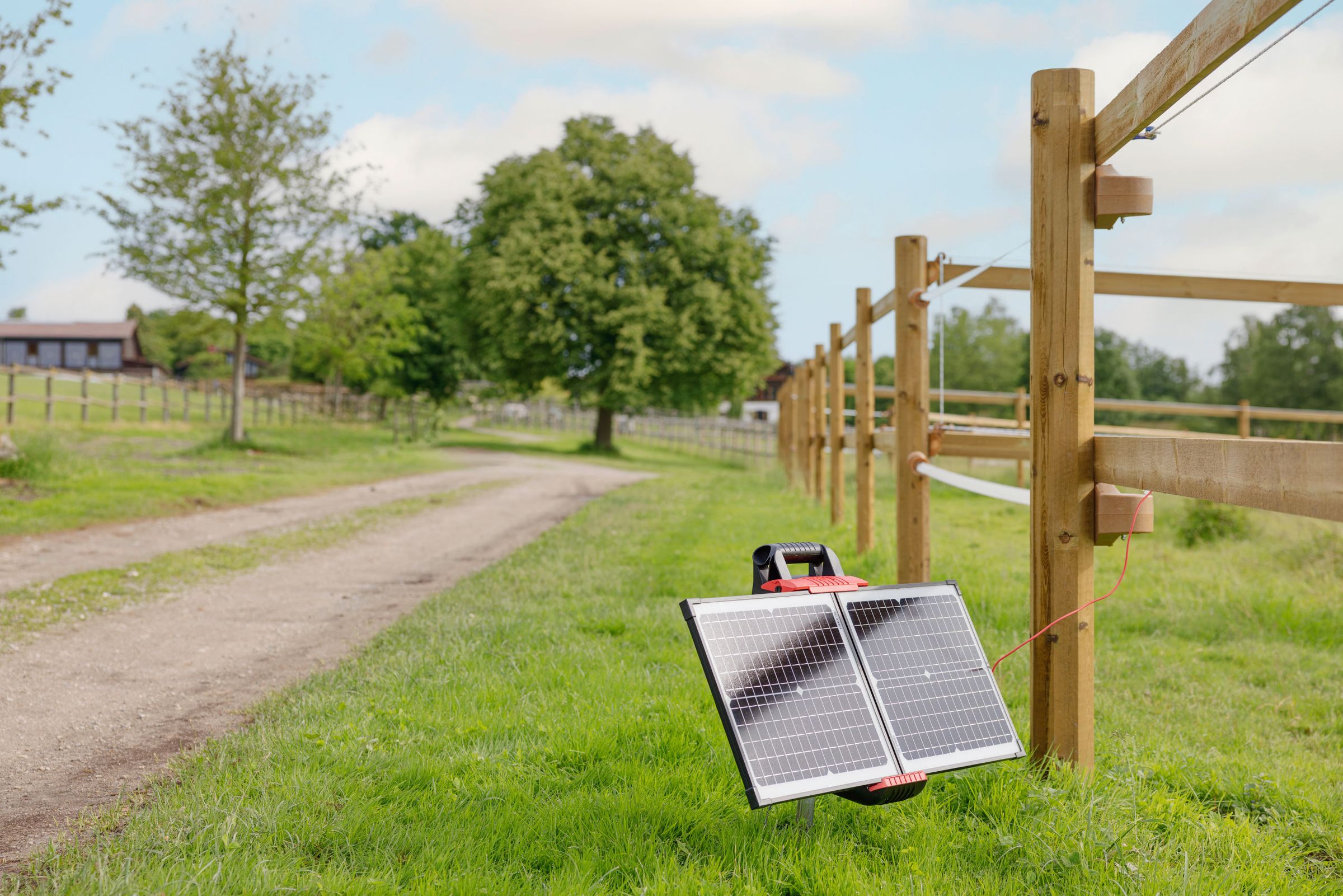

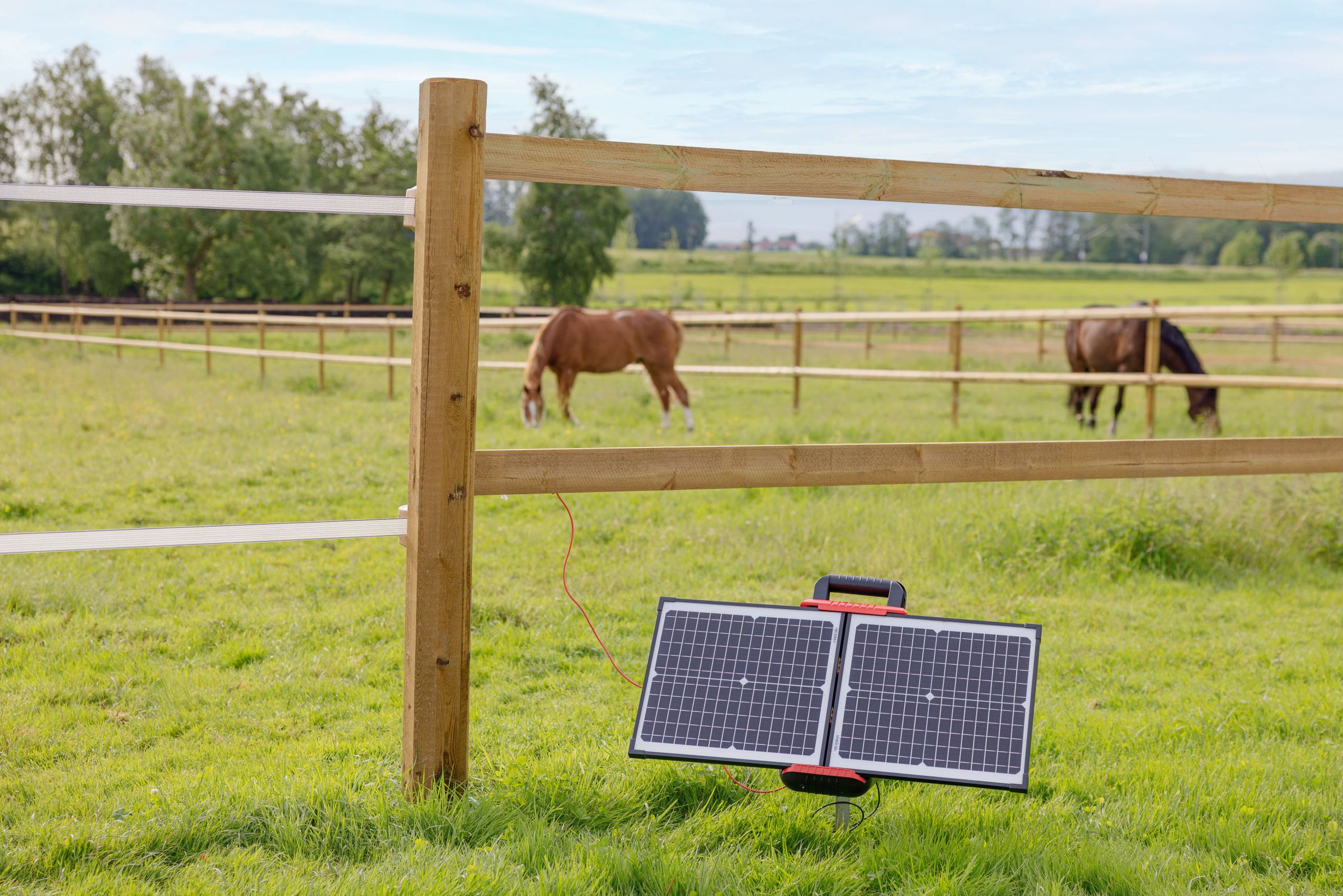

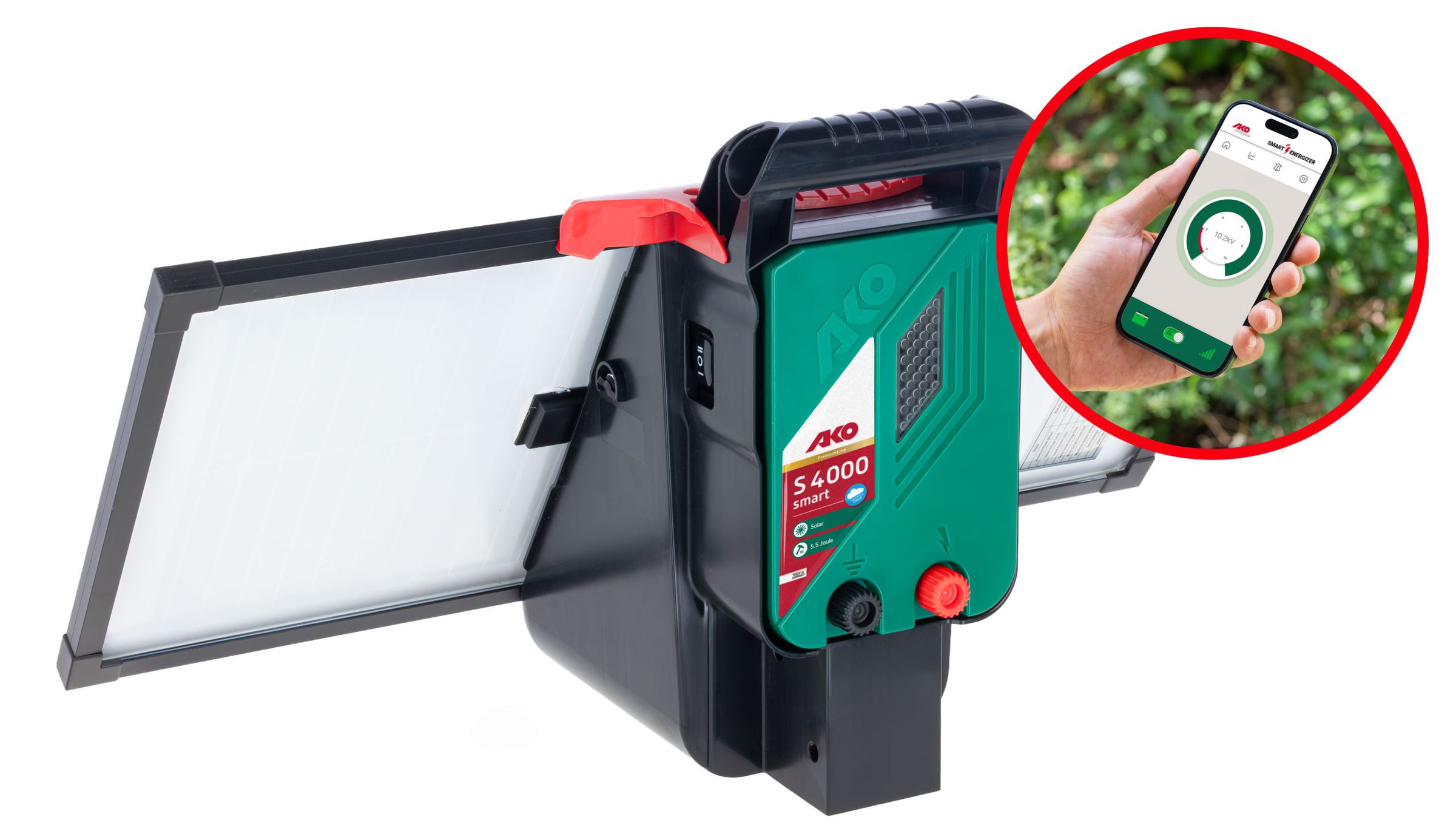

The AKO Sun Power S 4000 smart combines maximum power with smart technology. With 5.50 J of charging energy, cloud connection, free mobile data transfer the power of the sun, it offers maximum power for your pasture up to a length of 35 km - at all times and in all places! The supplied 12 V battery and the 40 W solar module (supplied unassembled), together with the intelligent battery management and the energy-saving circuit, enable maintenance-free continuous operation throughout the main pasture season. The carrying handle integrated in the housing makes the device flexible and mobile. The integrated mounting fixtures also allow it to be attached to a metal or wooden post.

smart Energiser - can be controlled via smartphone app and computer browser
our most powerful, smart all-round compact solar unit
can be used with light to medium vegetation, universally for all standard fences
ideal for horse and cattle paddocks, goats, sheep and wolf
5-year warranty*

multi-coloured LED bar graph display for output voltage and battery control plus solar operation LED (blue)

Retailer web shop

Ref. no.	PU	Pallet	€
372954	1	24 PAL	859.00

Model	S 4000 smart
Ref. no.	372954
Stored Energy	5.5 J
max. discharge energy	4 J
max. voltage	11900 V
Voltage in Open Circuit	10300 V
Voltage at 500 Ohms	8400 V
Voltage at 100 Ohms	3500 V
theoretical fence length as per VDE	110 km
max. fence length without vegetation	35 km
max. fence length with medium vegetation	9 km
max. fence length with high vegetation	4 km
Approx. Number of Electrifiable Nets	16
Qty 1 m earth posts	2
Power Consumption	120 mA, 300 mA

Impact force and fence length: the AKO Sun Power S 4000 is equipped with a charging energy of 5.50 J and a maximum voltage of 11,900 V. The device is used for fence systems up to 35 km without vegetation.

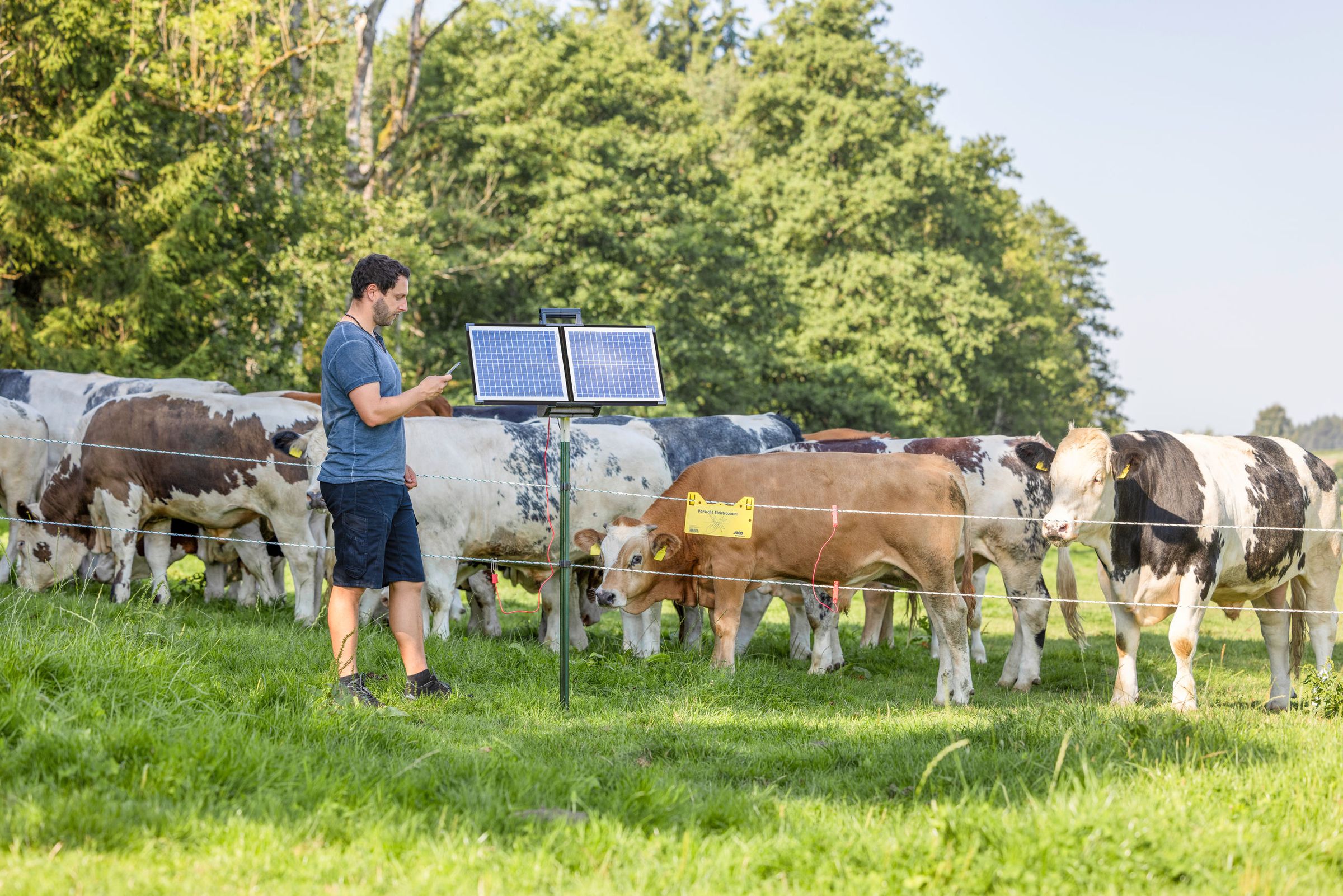

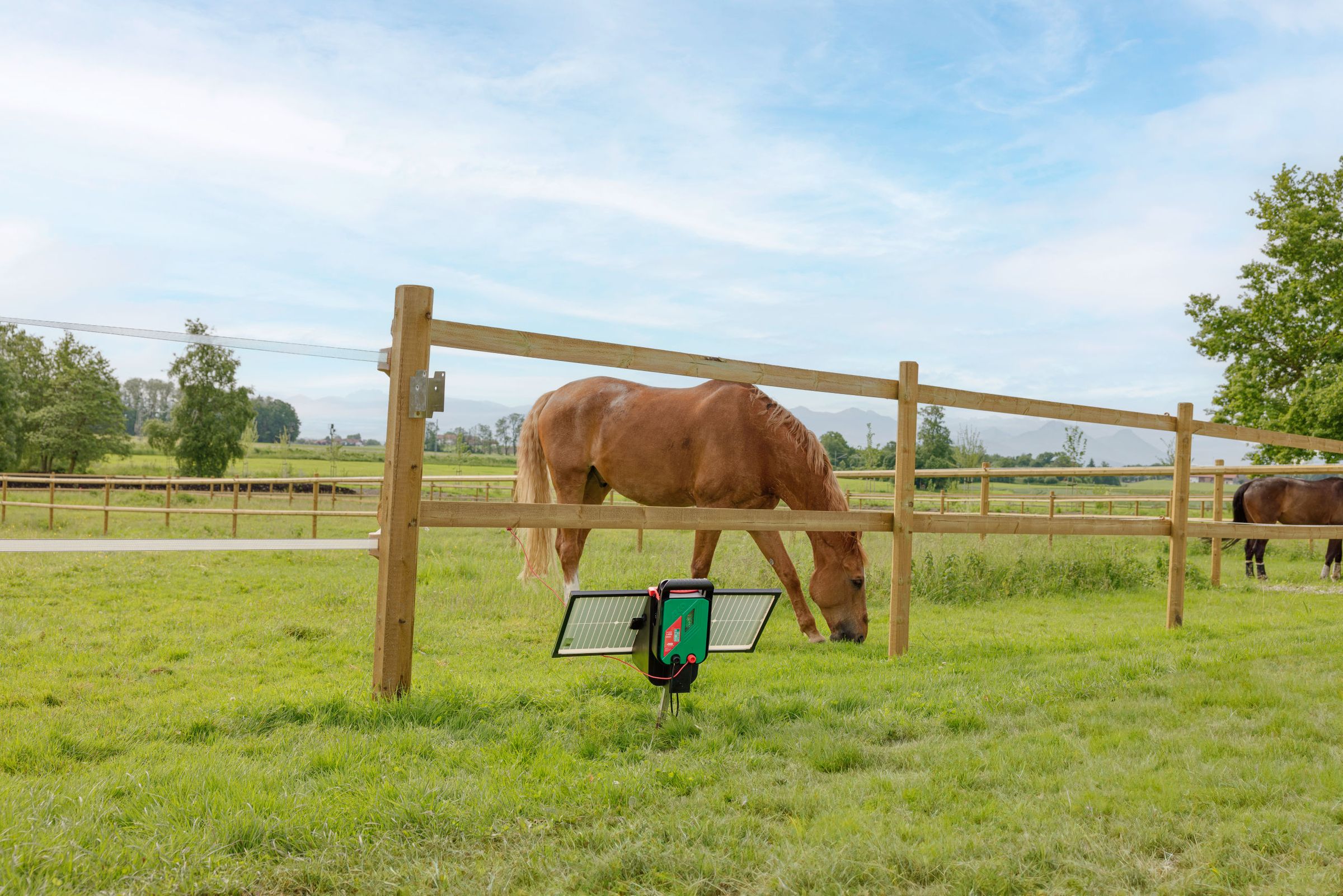

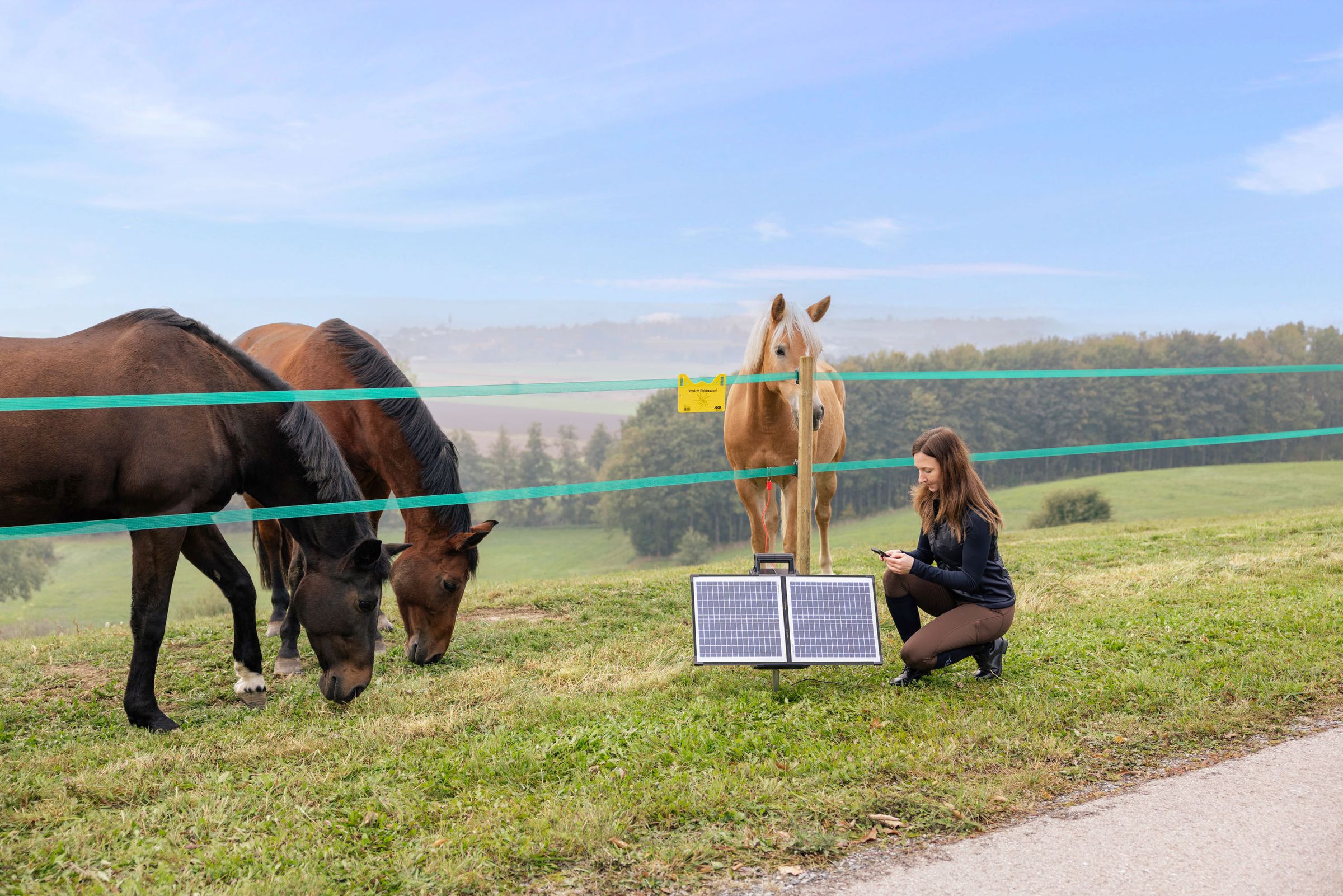

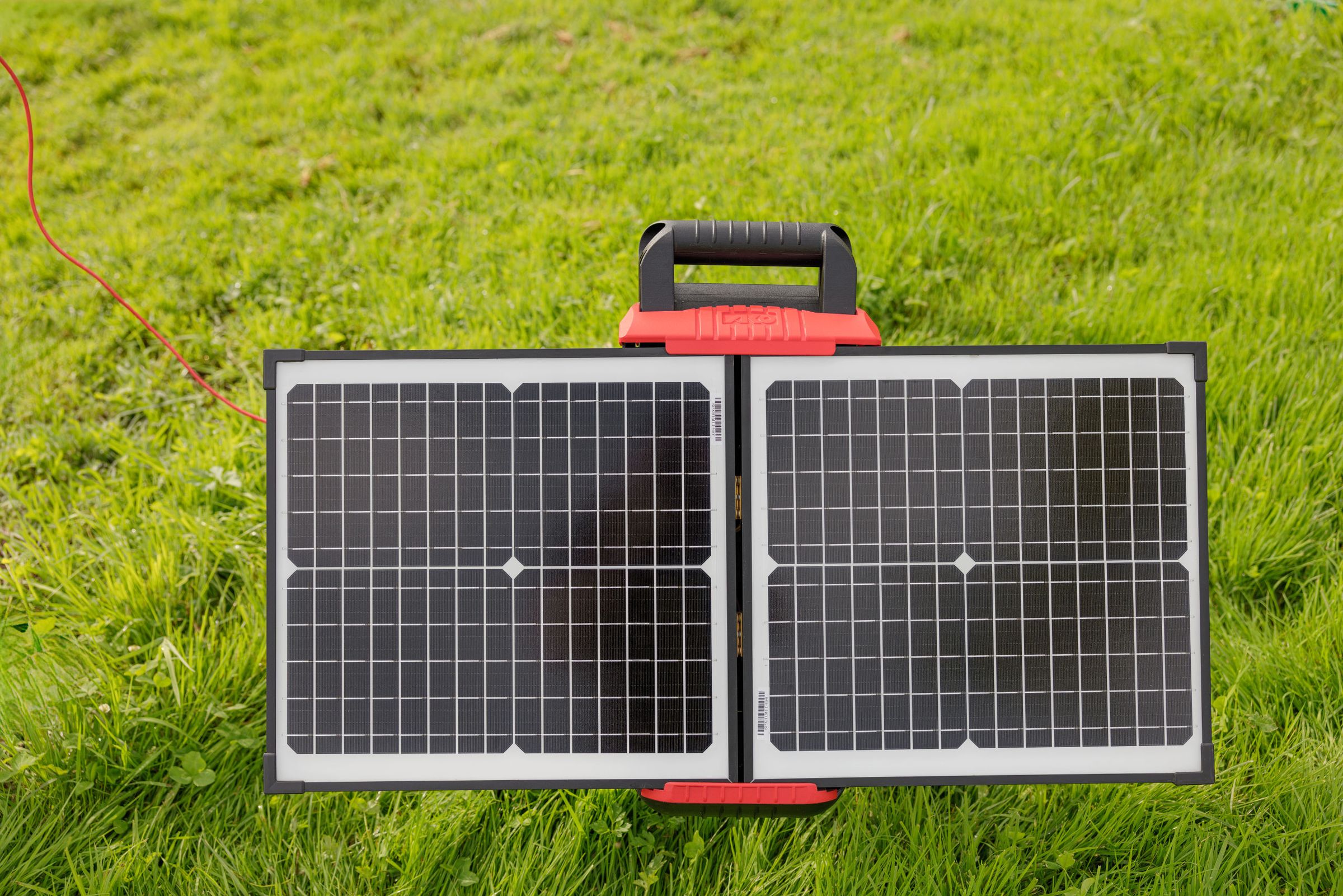

Power supply and animals: the device is a 12 V solar fence device which is operated with a 12 V battery. The unmounted 40-W solar module supports the battery. Ideal for horses, cattle, goats, sheep & wolves.

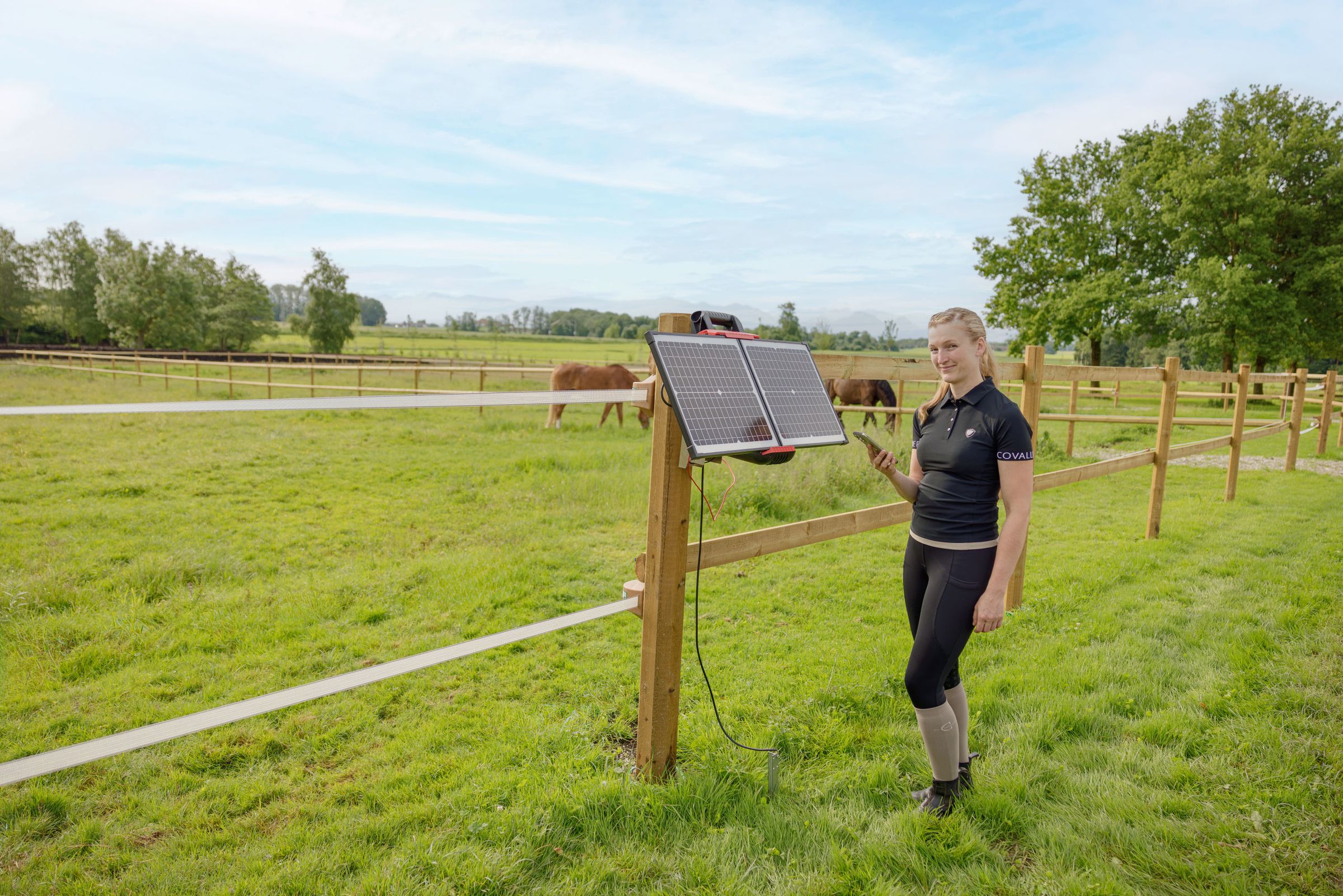

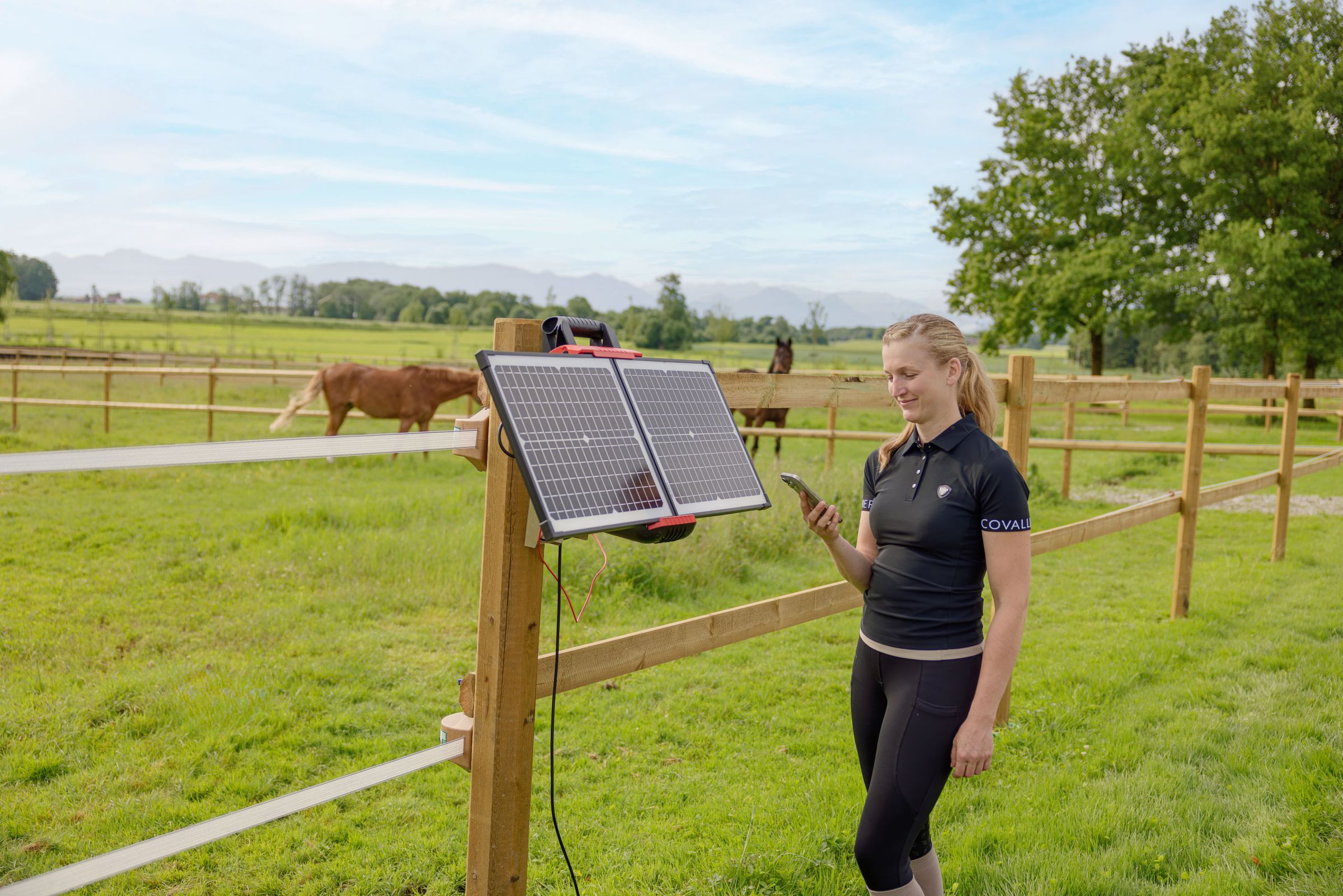

Functions: The Smart Energiser has an integrated connection to the cloud. This function enables distance-independent control and monitoring of the fence system via smartphone. The device is equipped with an I=ON-Low|0=OFF|II=ON-High switch.

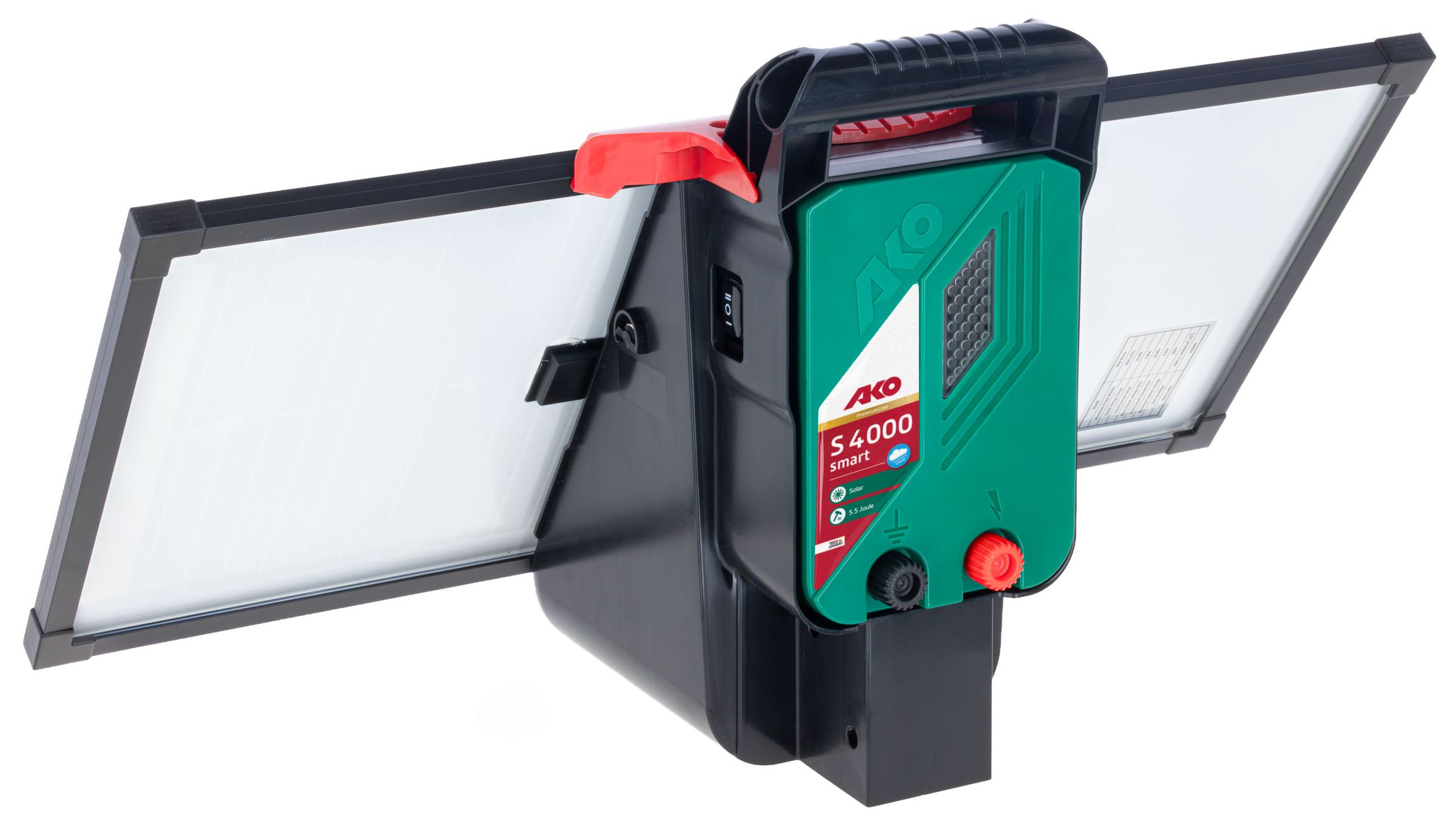

Display: The device is equipped with an LED bar graph display (12 LEDs). The lower "red" LED indicates the battery check. The lower "blue" LED lights up as soon as the solar module supplies power. The 10 LEDs above these indicate the output voltage.

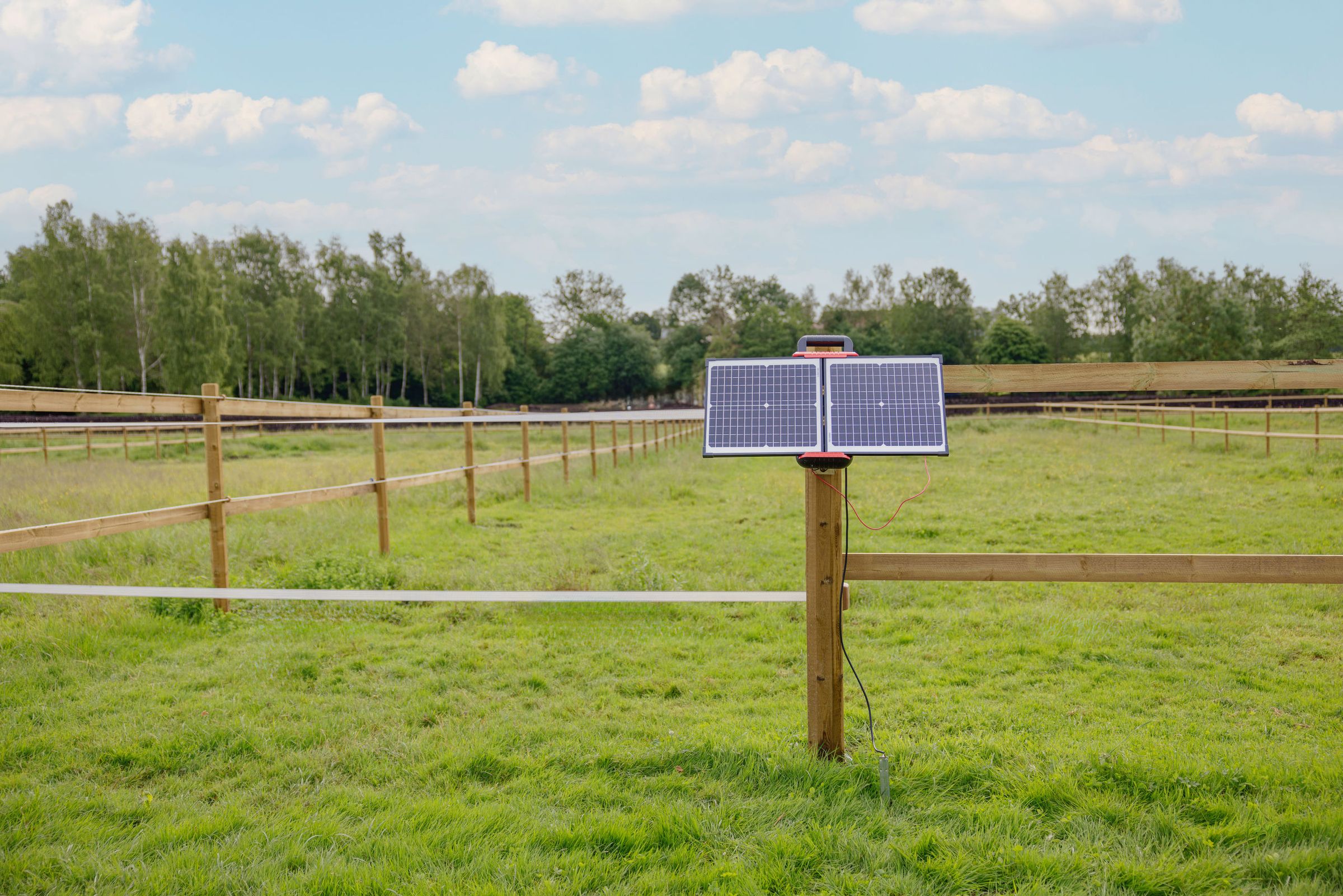

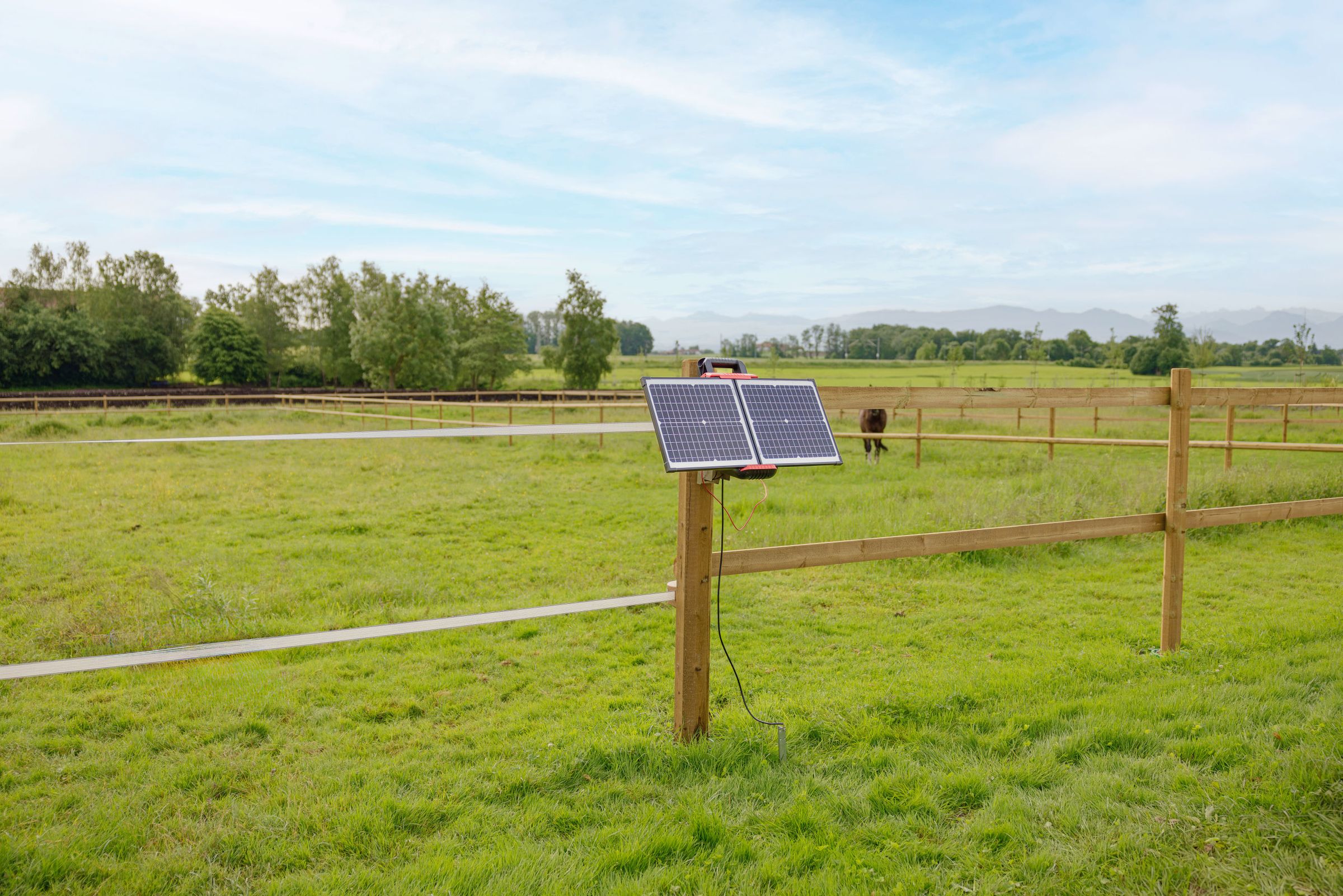

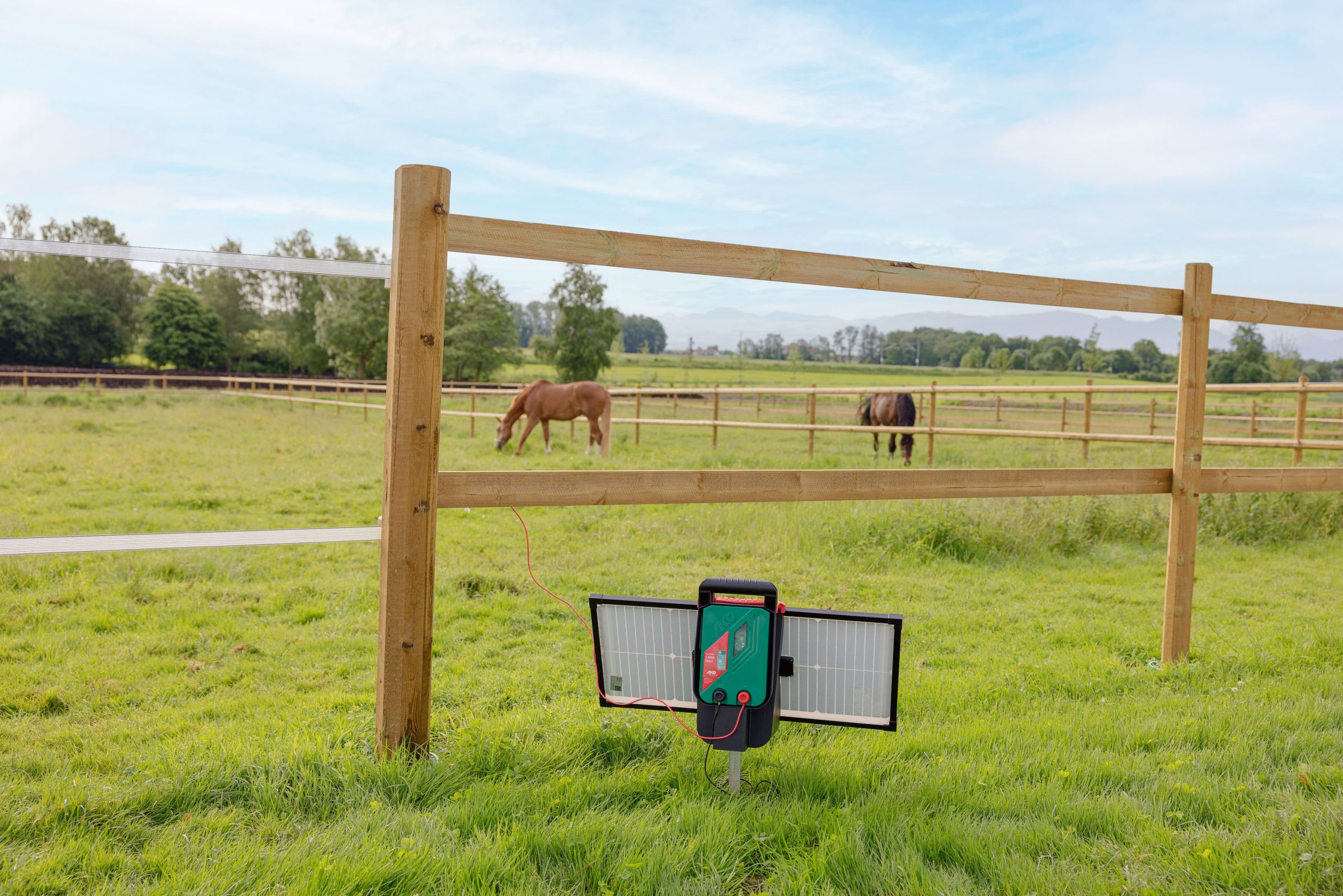

Housing and assembly: the housing made from UV-resistant plastic is weather-resistant and long-lasting. The carrying handle allows flexible positioning. The device can also be mounted on a metal or wooden post using the mounting fixtures.

optimised for permanent, maintenance-free operation right through the main pasture season

with High/Low/Off switch

integrated lightning protection

intelligent, modern battery management with deep discharge protection – device functions even during extended periods of bad weather

excellent level of efficiency – therefore a longer battery life

very robust, weather-resistant, water-tight casing with carrying handle

fast and easy to install

power saving switch for when battery voltage fails

additional power saving function when the fence status is good

microprocessor controlled

very bright, clearly visible LED light

corresponds to applicable EU safety standards

Functions: Herding the animals during the run

directly integrated cloud connection

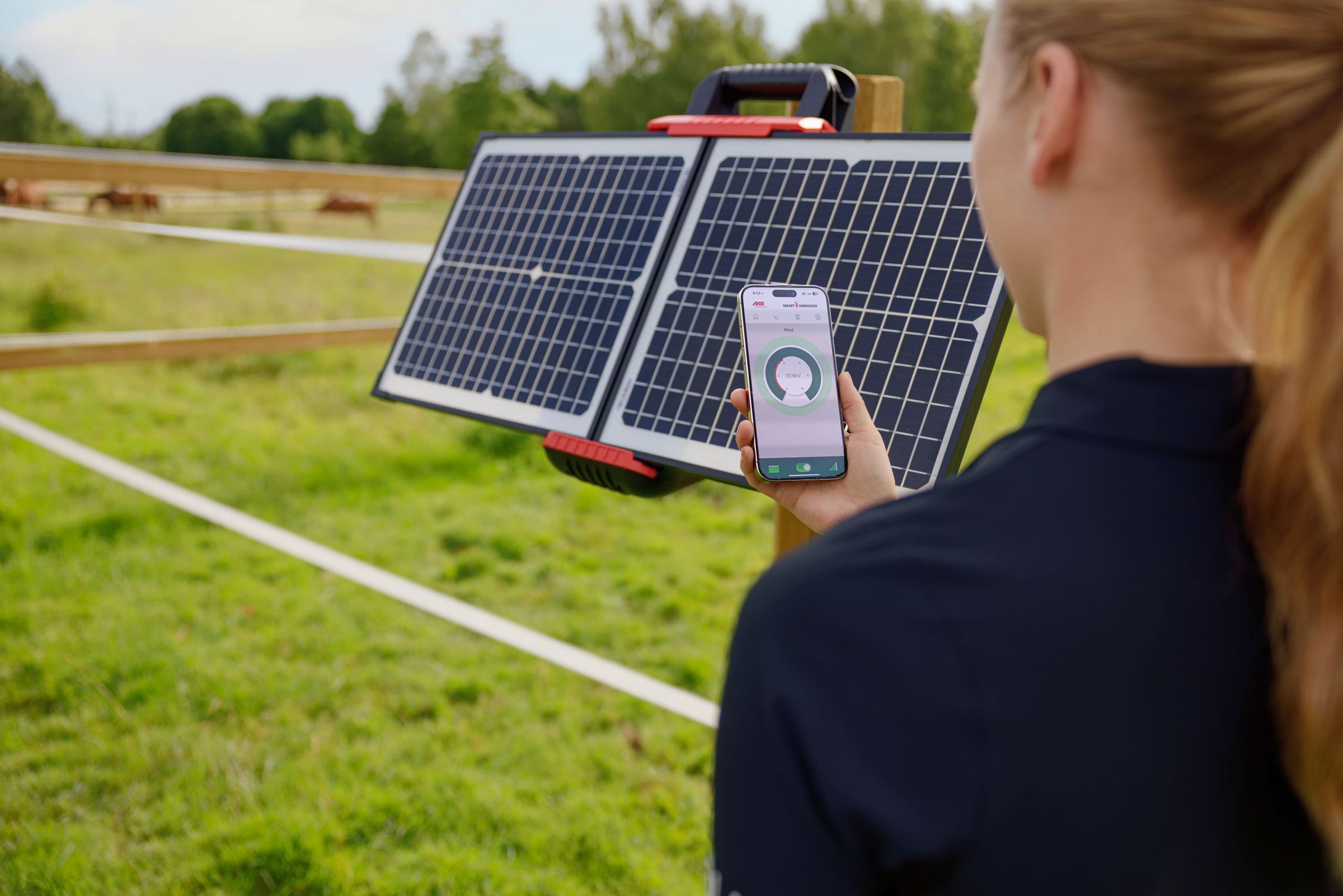

distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems

permanently free mobile data transfer to the app

if the protection voltage falls below the pre-set minimum level, the user is notified with a real-time alert in the free app on their smartphone

Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com

The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
