Impact force and fence length: the AKO Power Station XDi 10000 smart is equipped with a charging energy of 15 Joules and a maximum voltage of 11,200 V. The device is used for fence systems up to 65 km without vegetation.
Power supply and animals: the device is a 12/ 230 V DUO fence device that can be operated with a 12 V connection cable or a 230 V mains adapter. Ideal for horses, bulls, cattle, sheep, goats, wild boar and wolves.

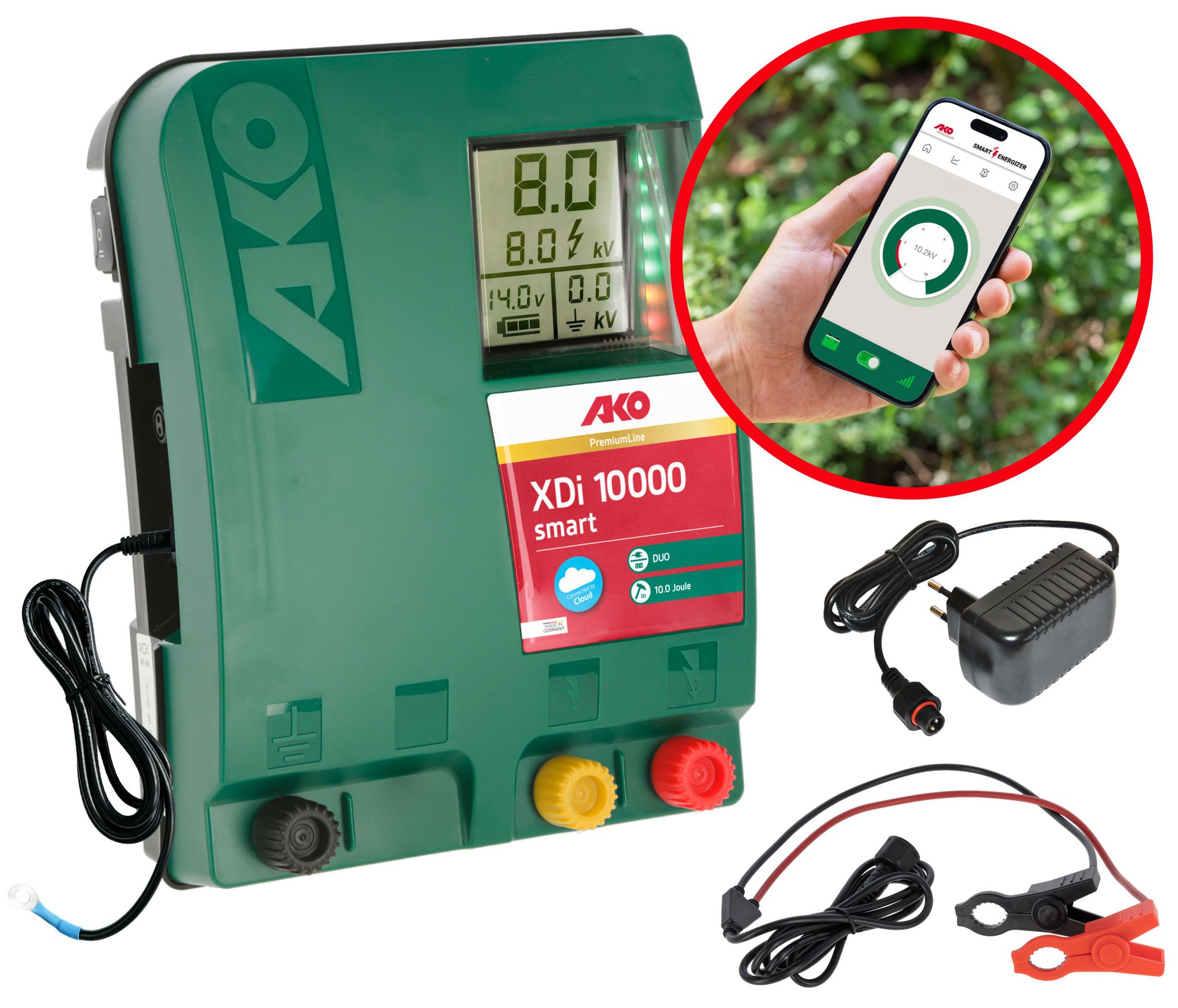

Functions: The Smart Energiser has an integrated connection to the cloud. This function enables distance-independent control and monitoring of the fence system via smartphone. The device is equipped with an I=ON-Low|0=OFF|II=ON-High switch.

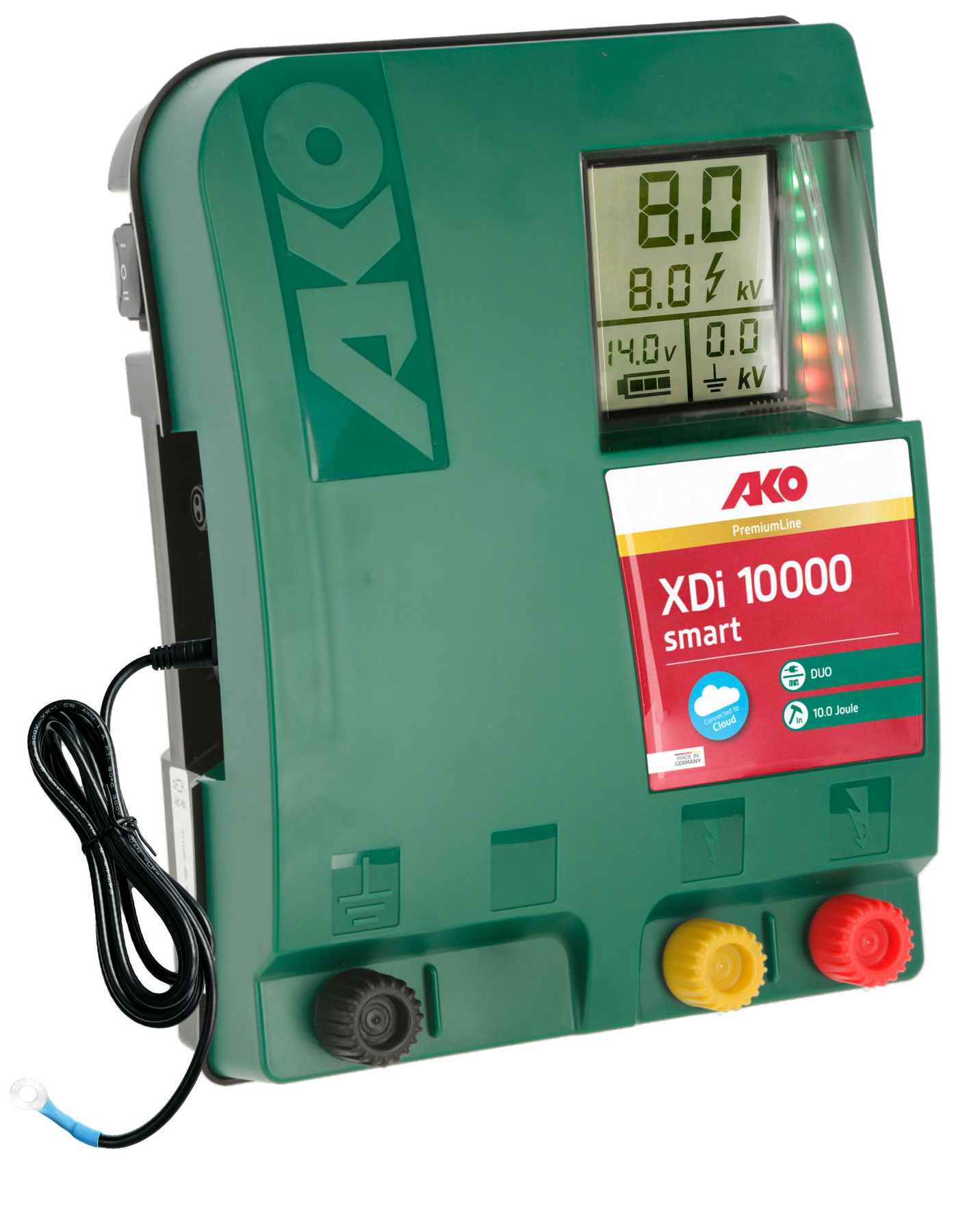

Display: the device is equipped with a digital display and a multi-coloured LED bar graph display (11 LEDs). The lower "red" LED indicates the battery check. The 10 LEDs above (red/yellow/green) are used for visual monitoring of the output voltage. Red =< 2,000 V | Yellow/green => 2,000 V.
Housing and assembly: the robust housing made from UV-resistant plastic is weather-resistant and long-lasting. An integrated fitting allows wall mounting. If installed outdoors, the device must also be protected from rain and sunshine.
extra-large, clear, permanently illuminated digital display (fence and earth voltage & "smart" connection quality)
multi-colour, brightly lit LED bar graph display for quick recognition of the current fence status (fence and earth voltage)
I-0-II level switch (I=ON-Low / 0=OFF / II=ON-High)
equipped with 2 fence outputs (high/low)
fence pulse ideally adapted to the fence load, maximum protection certainty with minimum energy consumption
optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.
AKO XDi devices automatically adapt to the fence status, ensuring the highest protection certainty, and making your work easier by reducing vegetation growth to a certain degree
delayed shock strength adjustment makes touching the fence safer for people and animals
the fence is constantly monitored by an alarm function, which triggers an alarm and slows the pulse sequence if the fence is touched for an extended period of time
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
microprocessor controlled
integrated hanging device for wall mounting
corresponds to applicable EU safety standards
directly integrated cloud connection
distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems
permanently free mobile data transfer to the app
if the protection voltage falls below the pre-set minimum level, the user is notified with a real-time alert in the free app on their smartphone
recommended solar module: 375999 (115 W), connection directly to the 12-Volt battery, optionally with ground anchor 442386 or fixing set 442386 for metal box
Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com
