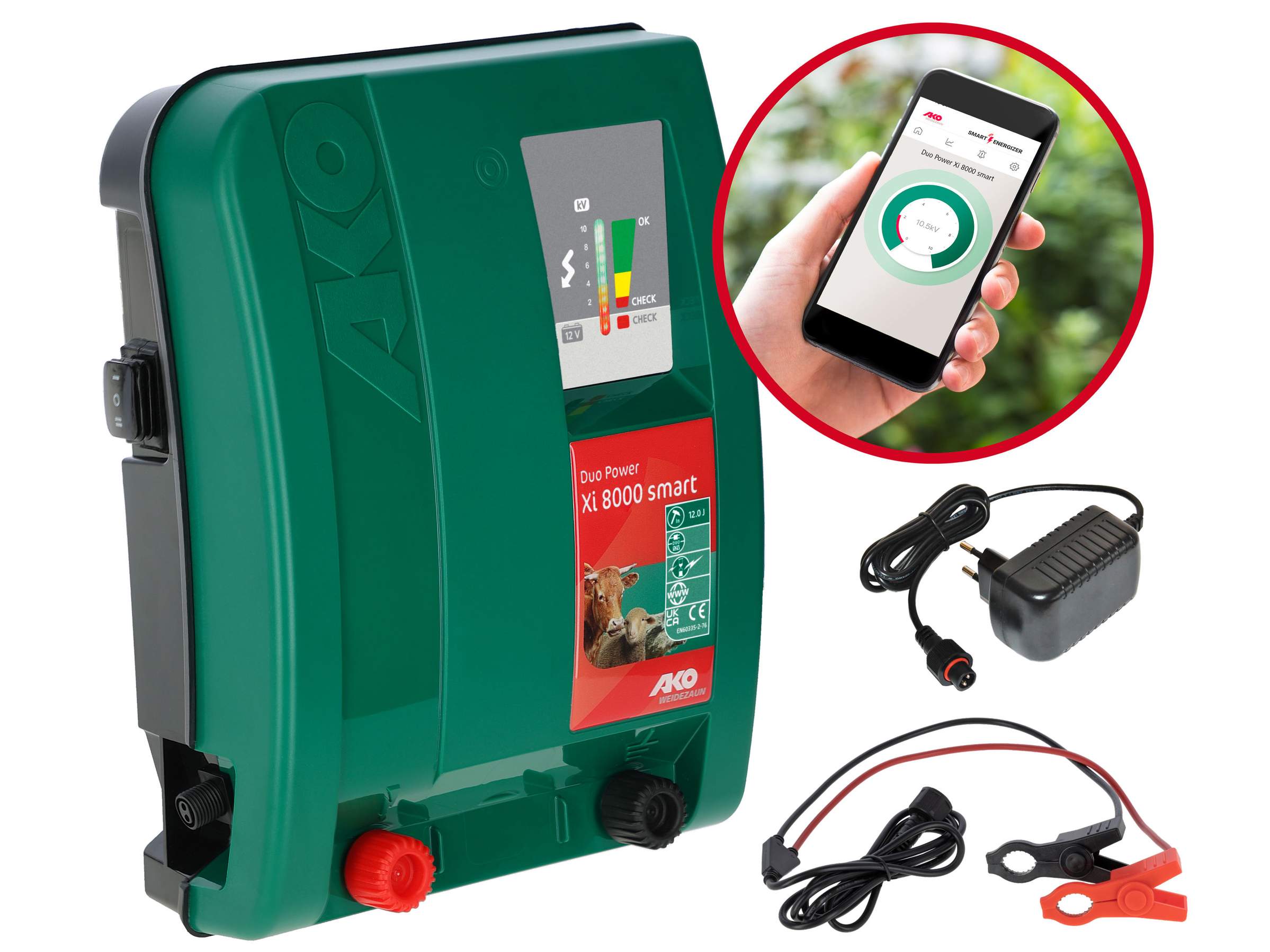

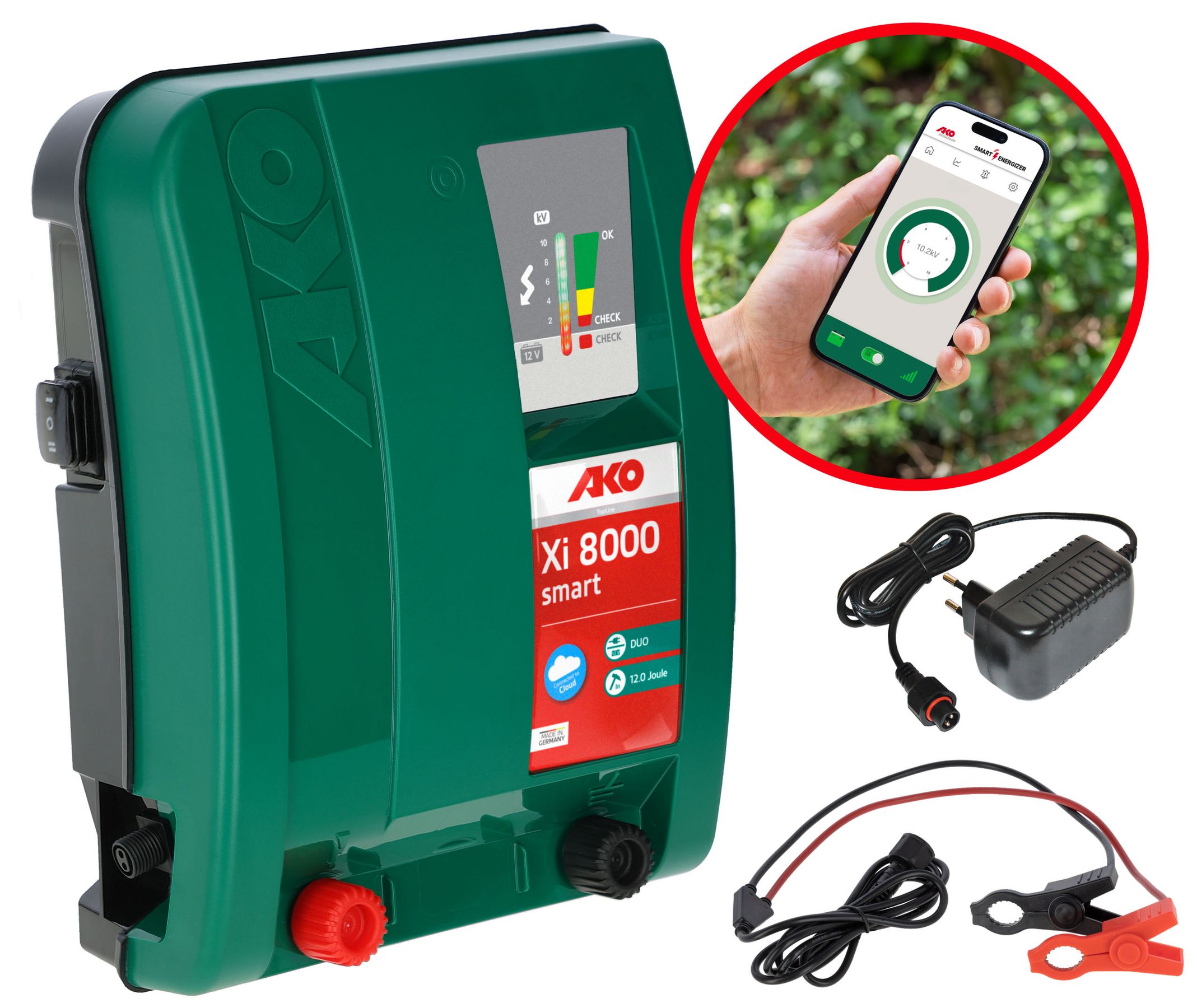

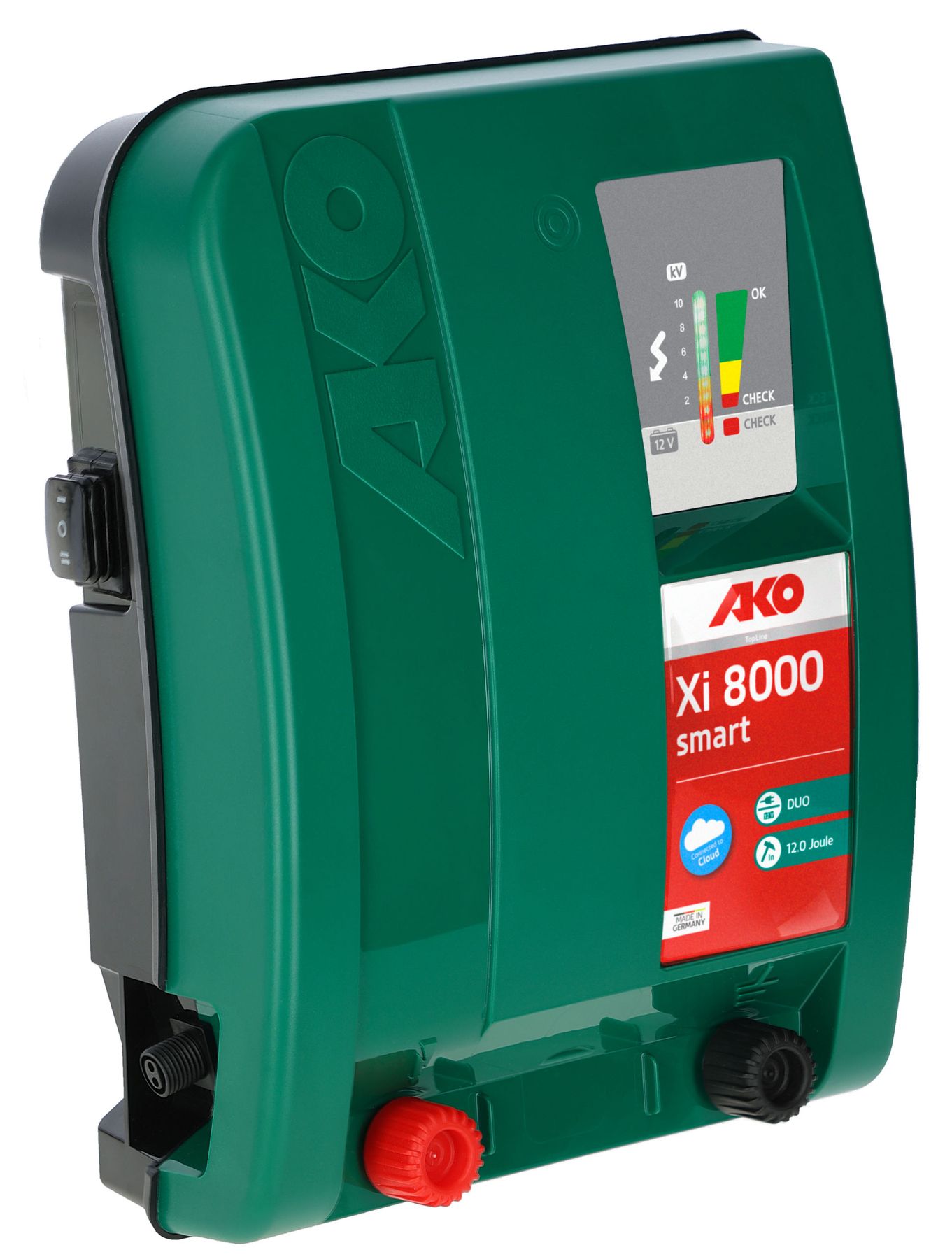

Duo Power Xi 8000 smart

The AKO Duo Power Xi 8000 smart combines maximum power with smart technology. With 12 Joules of charging energy, cloud connection, free mobile data transfer and a flexible 12/230 V power supply, it offers maximum power for your pasture up to a length of 50 km - at all times and in all places!

smart Energiser - can be controlled via smartphone app and computer browser
extremely powerful 12/230 Volt DUO fence device for mobile or stationary use
can be used even with heavy vegetation

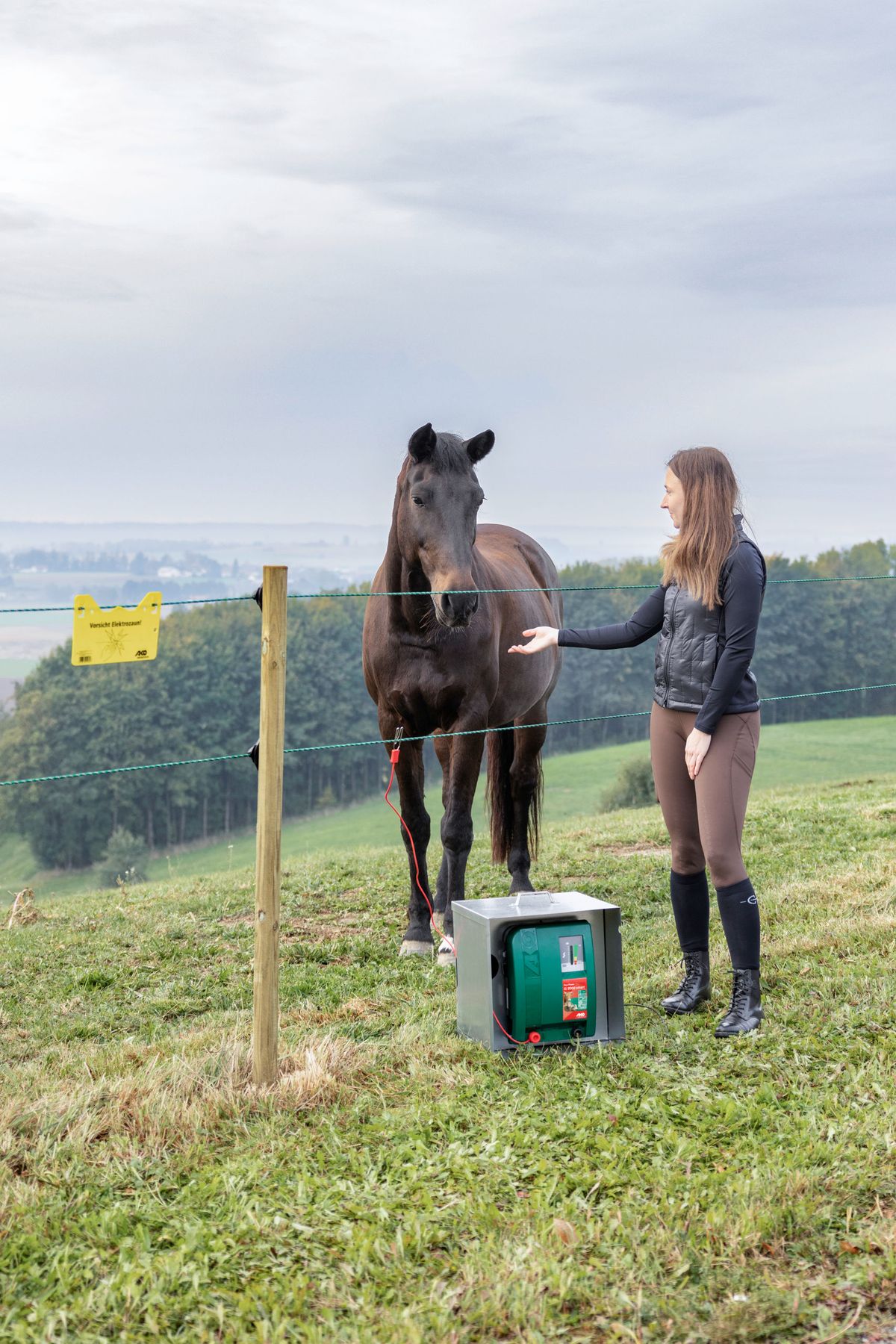

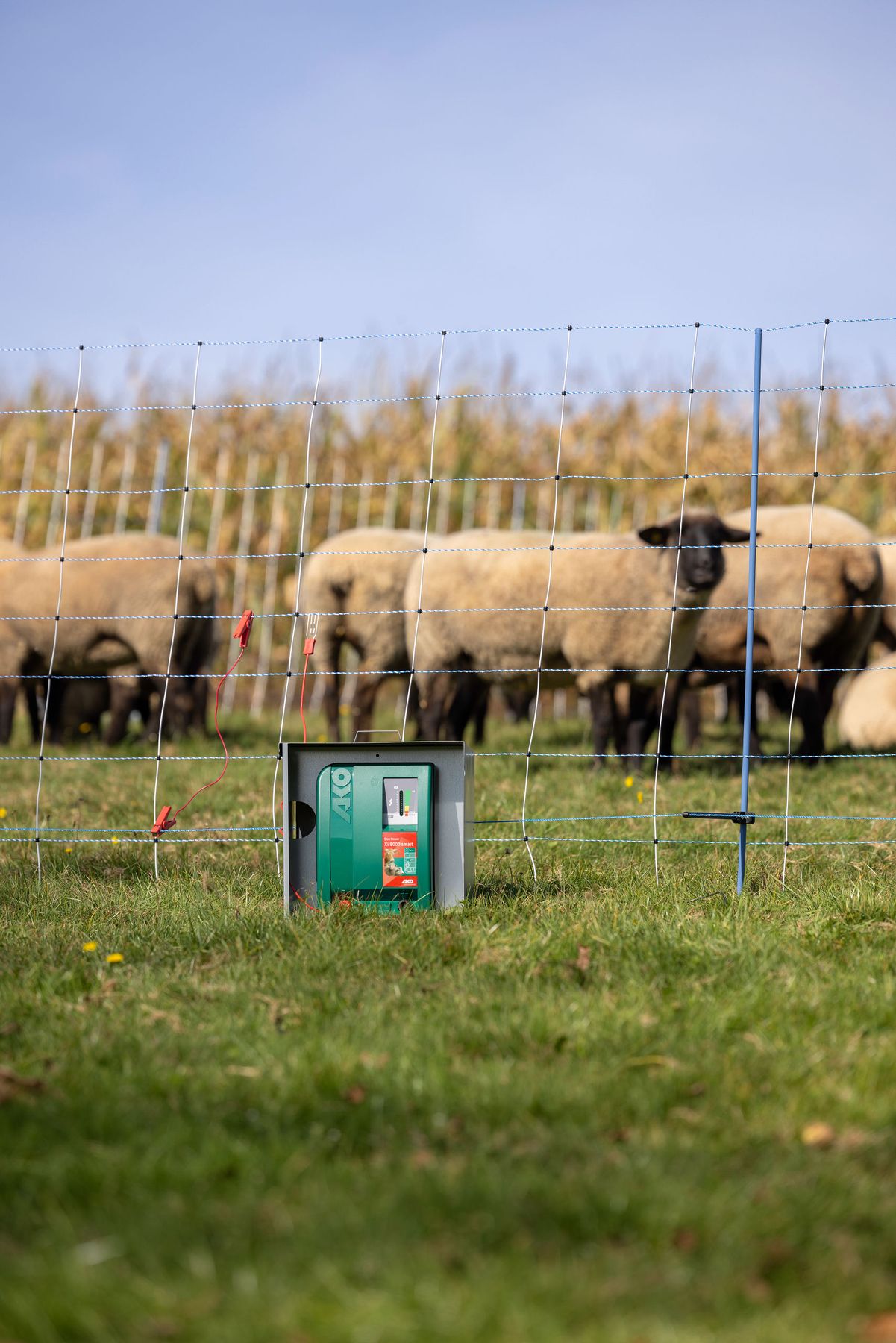

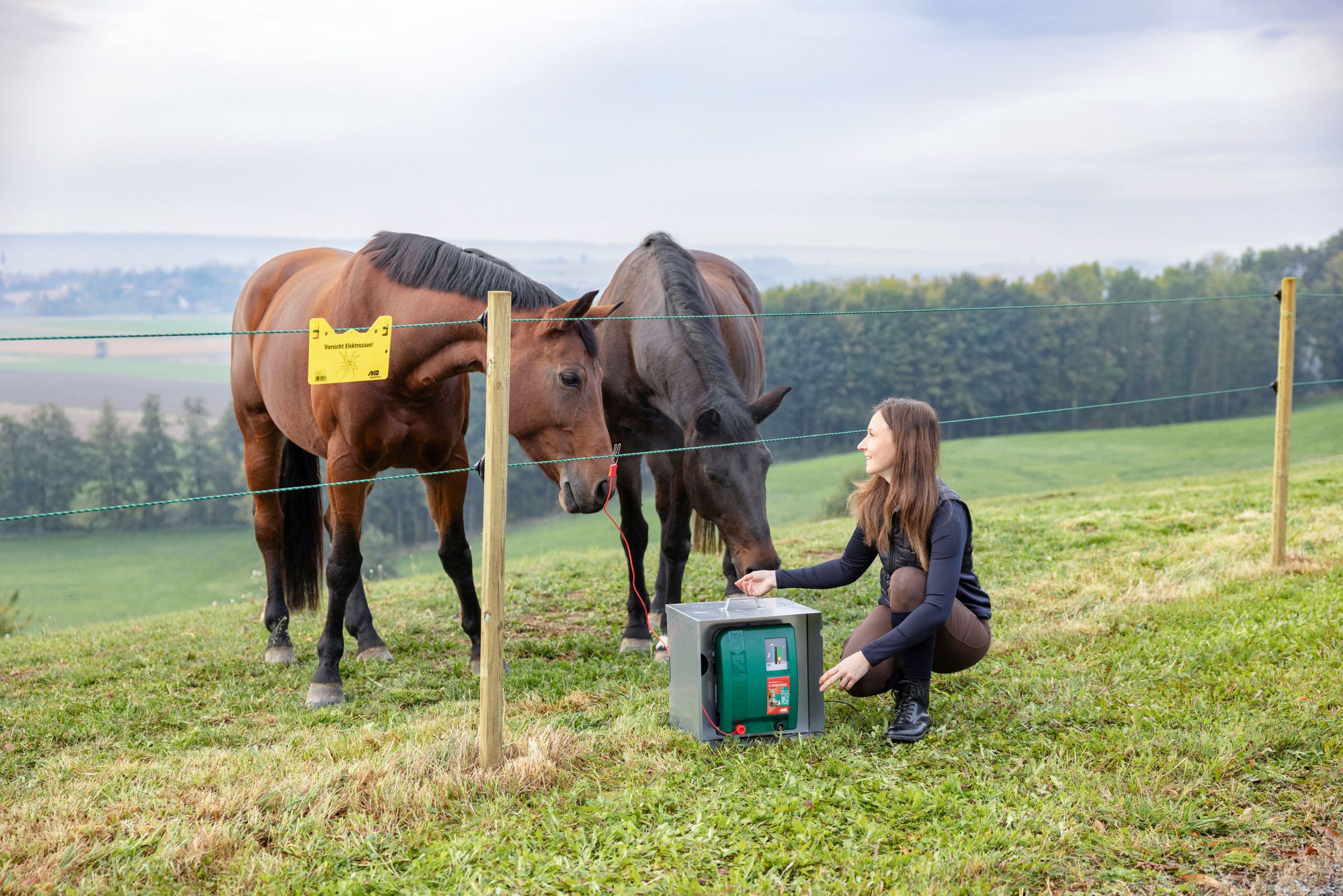

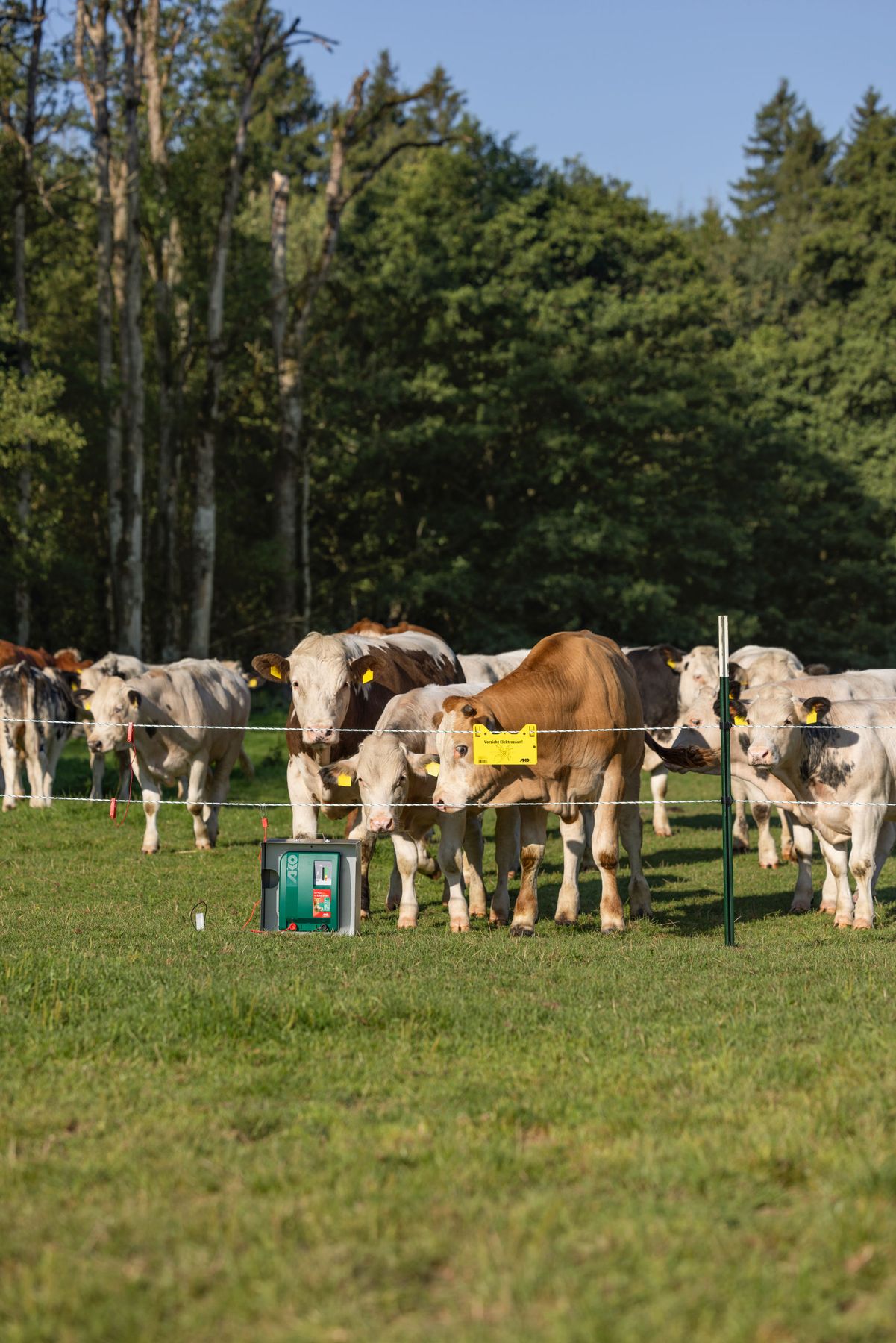

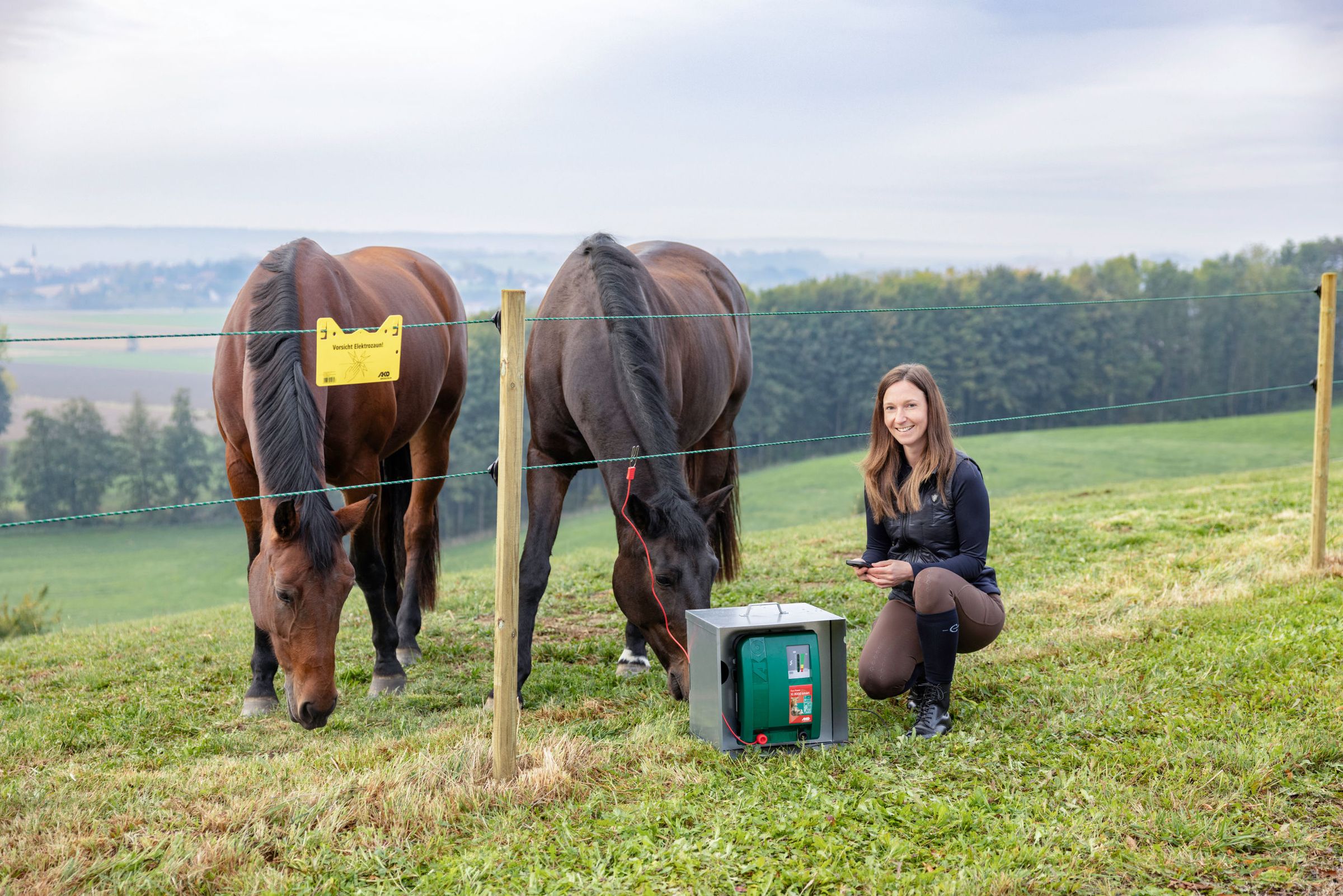

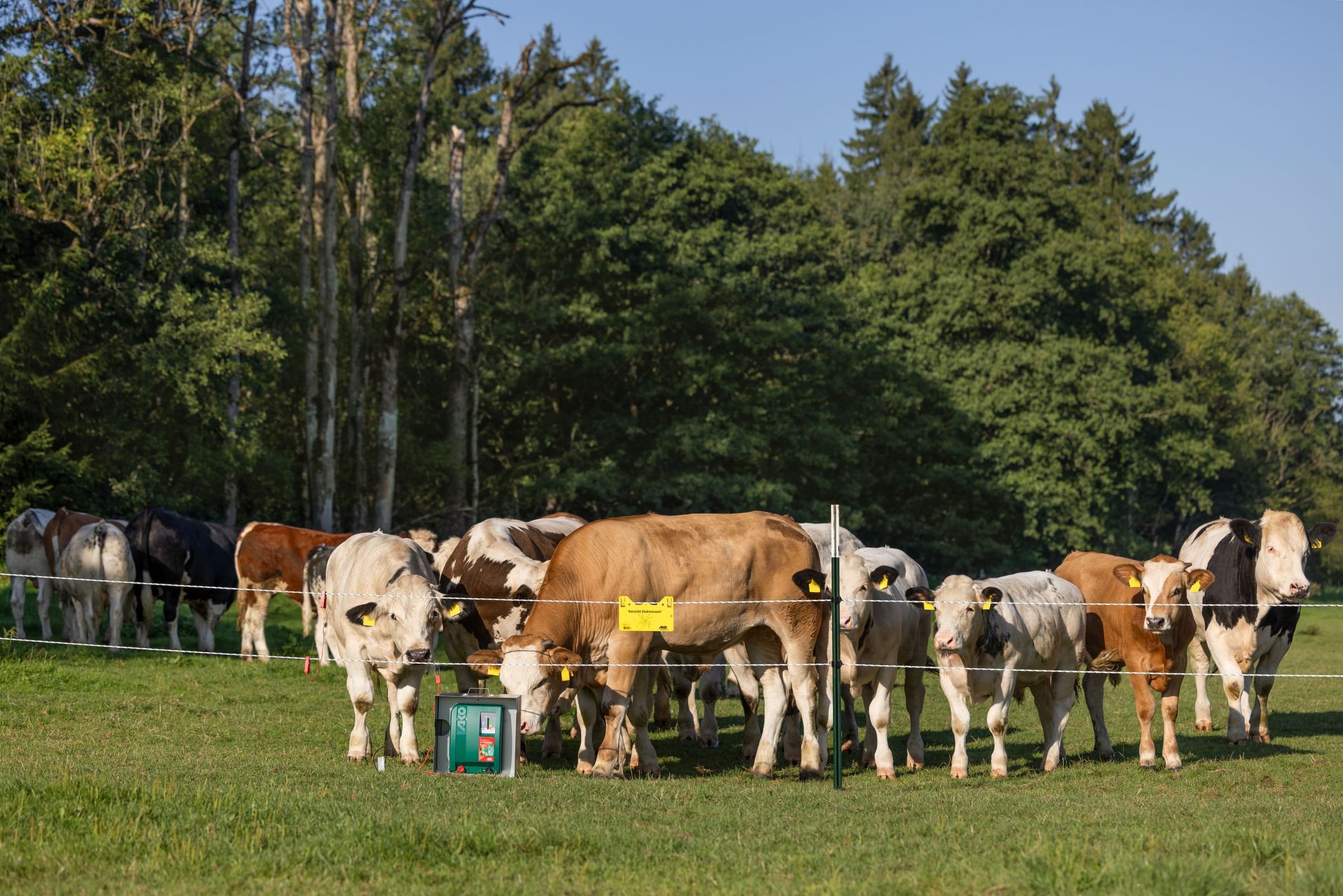

our all-round device – ideal for horses, bulls, sheep and for deterring wild boars and wolves
5-year warranty

multi-colour LED bar graph display for output voltage and battery control

Retailer web shop

Ref. no.	PU	Pallet	€
372879	1	72 PAL	599.00

Model	Xi 8000 smart
Ref. no.	372879
Stored Energy	12 J
max. discharge energy	8 J
max. voltage	11200 V
Voltage in Open Circuit	10200 V
Voltage at 500 Ohms	8700 V
Voltage at 100 Ohms	4500 V
theoretical fence length as per VDE	240 km
max. fence length without vegetation	50 km
max. fence length with medium vegetation	17 km
max. fence length with high vegetation	7 km
Approx. Number of Electrifiable Nets	30
Qty 1 m earth posts	6
Qty 2 m earth posts	3
Power Consumption	165 mA, 570 mA

Impact force and fence length: the AKO Duo Power Xi 8000 smart is equipped with a charging energy of 12 J and a maximum voltage of 11,200 V. The device is used for fence systems up to 50 km without vegetation.

Power supply and animals: the device is a 12/ 230 V DUO fence device that can be operated with a 12 V connection cable or a 230 V mains adapter. Ideal for horses, cattle, sheep, wild boar and wolves.

Functions: The Smart Energiser has an integrated connection to the cloud. This function enables distance-independent control and monitoring of the fence system via smartphone. The device is equipped with an I=ON-Low|0=OFF|II=ON-High switch.

Display: the device is equipped with a multi-coloured LED bar graph display (11 LEDs). The lower "red" LED indicates the battery check. The 10 LEDs above (red/yellow/green) are used for visual monitoring of the output voltage. Red =< 2,000 V | Yellow/green => 2,000 V.

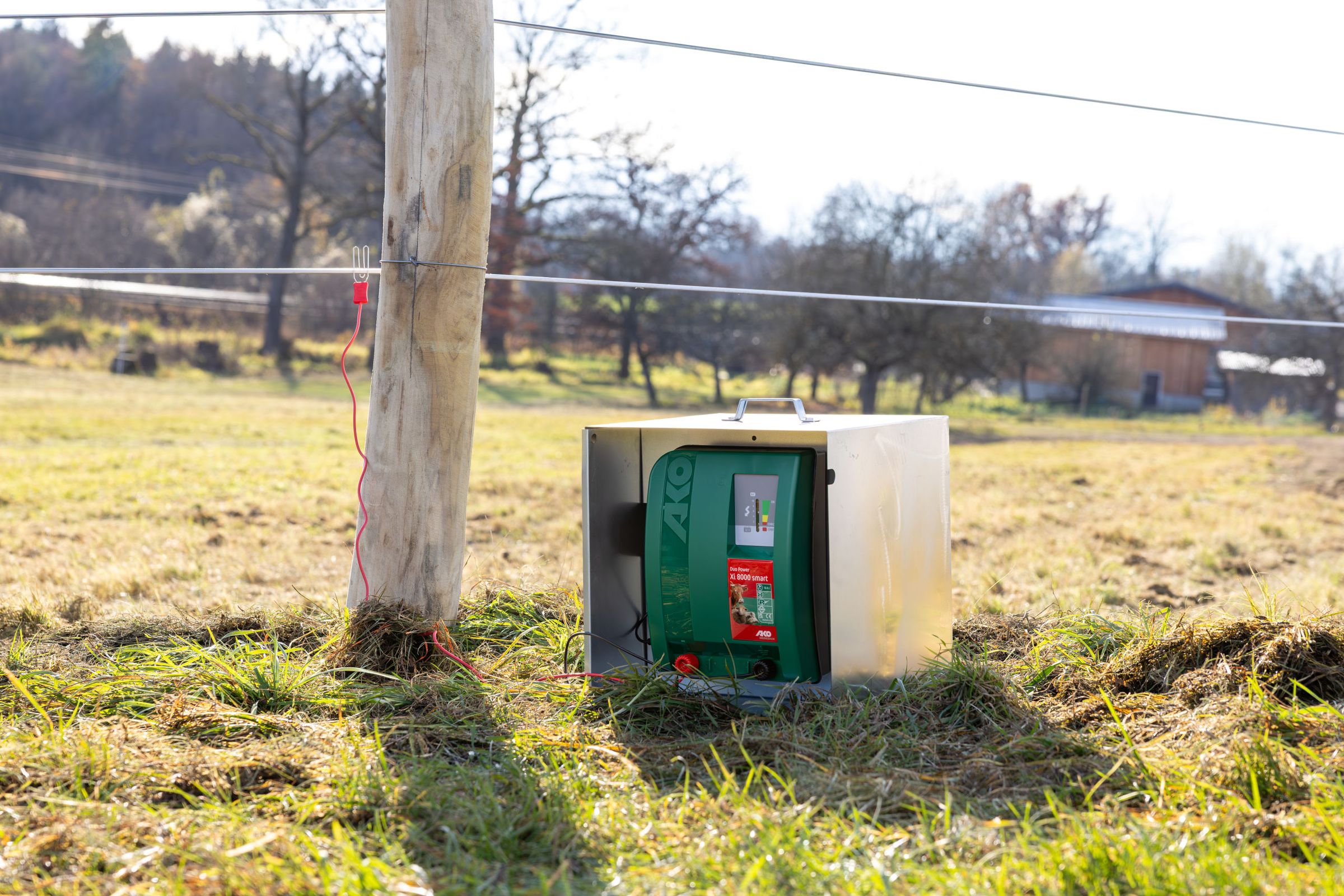

Housing and assembly: the robust housing made from UV-resistant plastic is weather-resistant and long-lasting. An integrated fitting allows wall mounting. If installed outdoors, the device must also be protected from rain and sunshine.

12/230 Volt DUO Unit – maximum flexibility combined with powerful output

multi-colour, illuminated bar graph display (10 LEDs) for monitoring the output voltage

separate LED for battery warning (red)

optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.

deep discharge protection for the 12 volt battery

microprocessor controlled

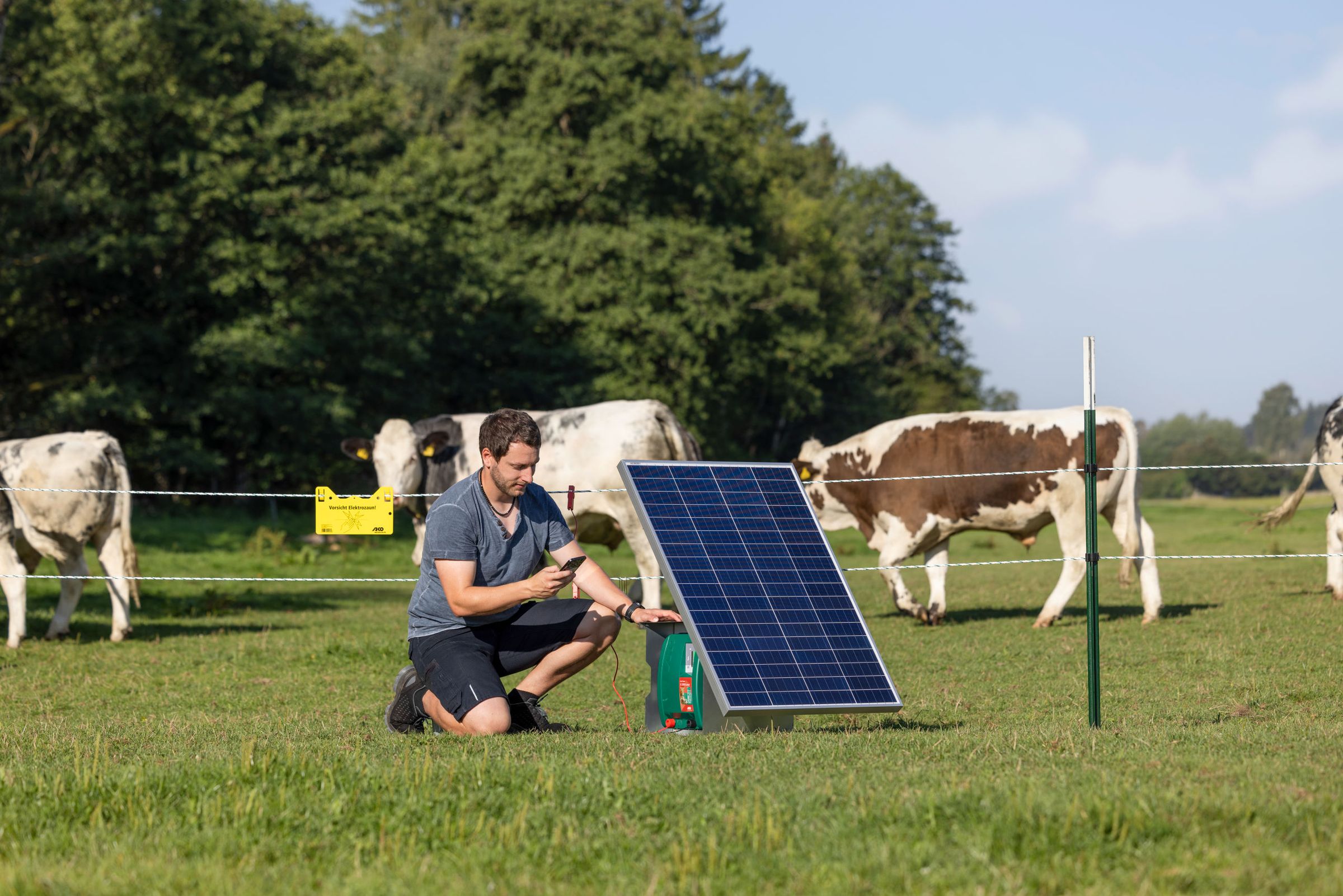

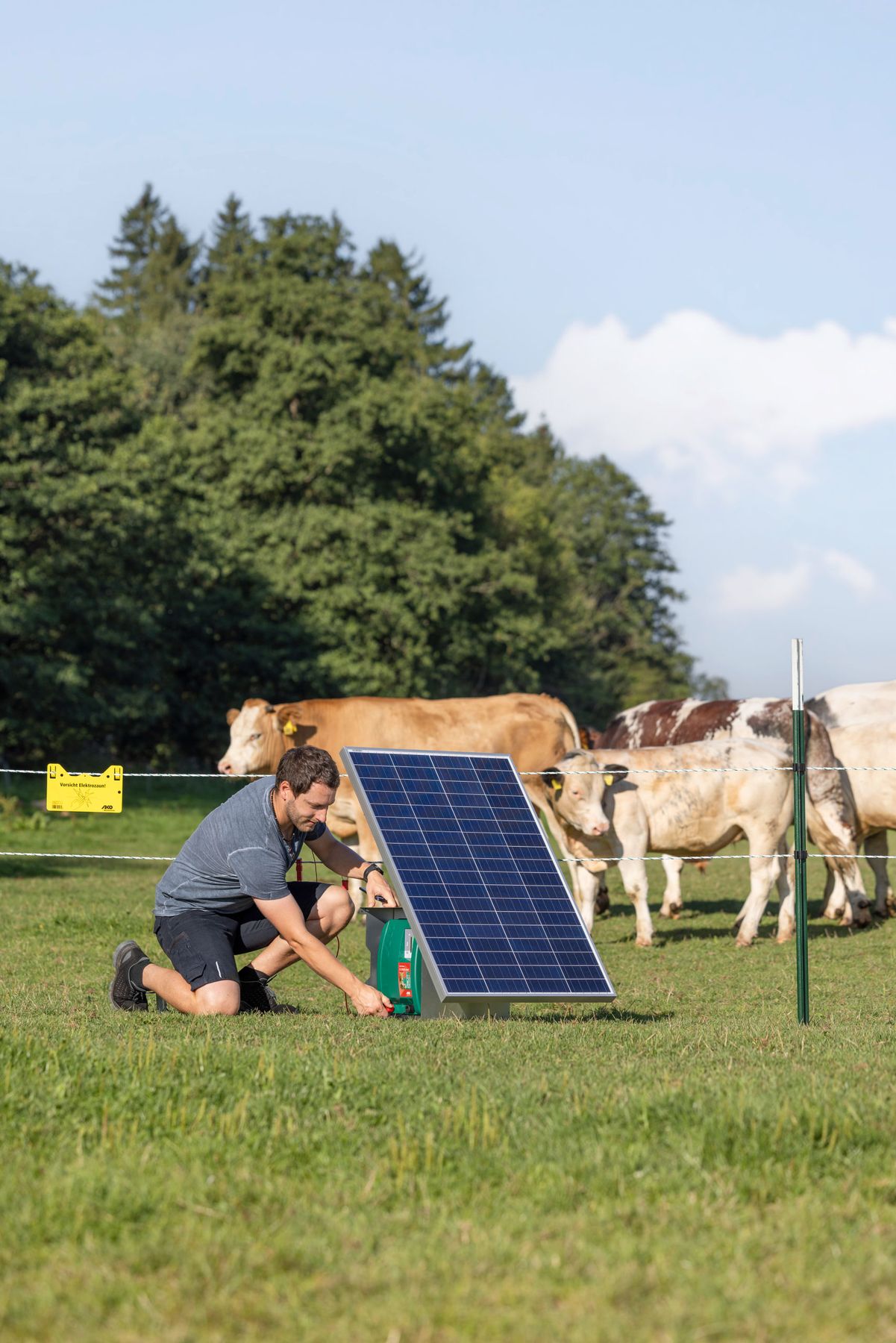

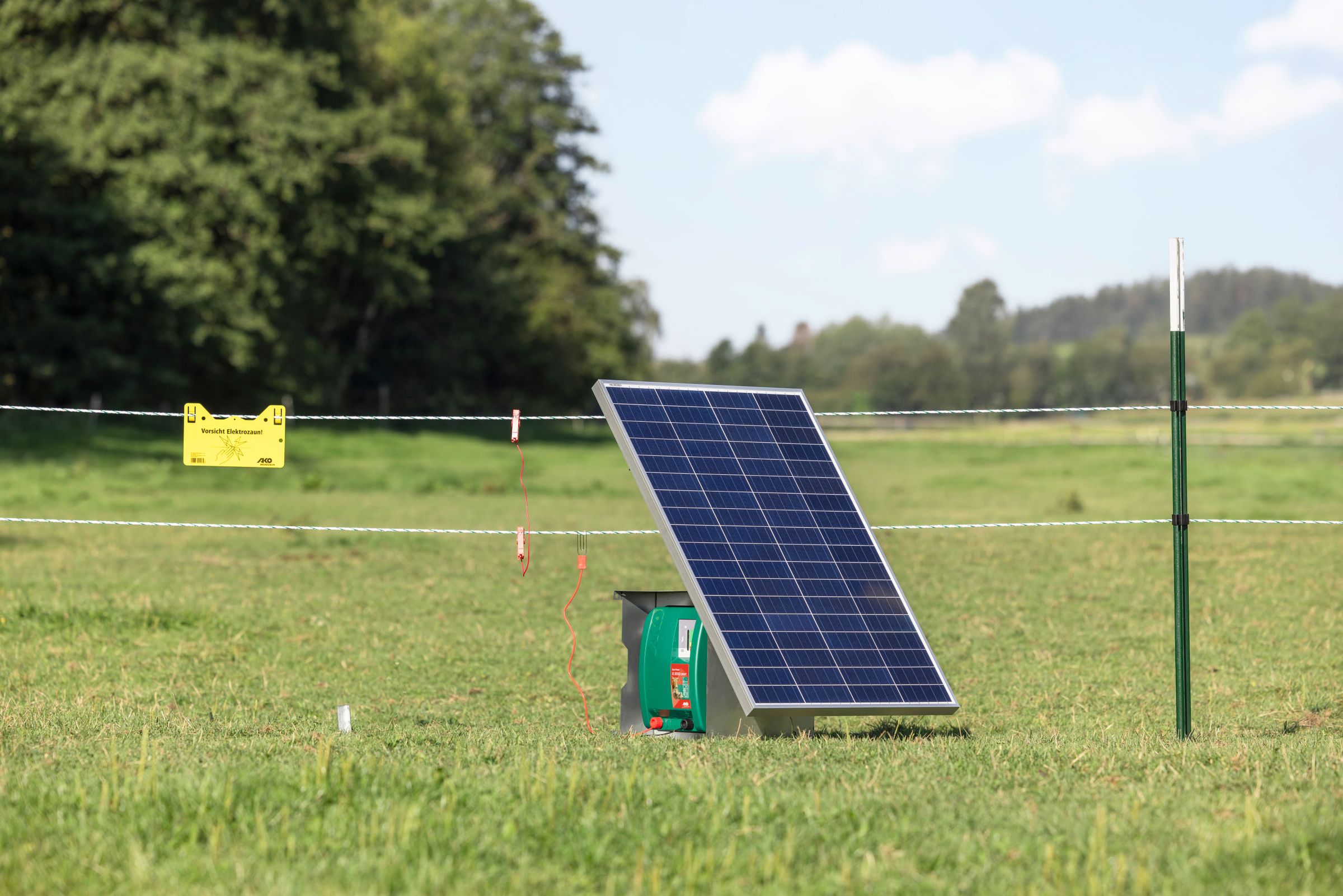

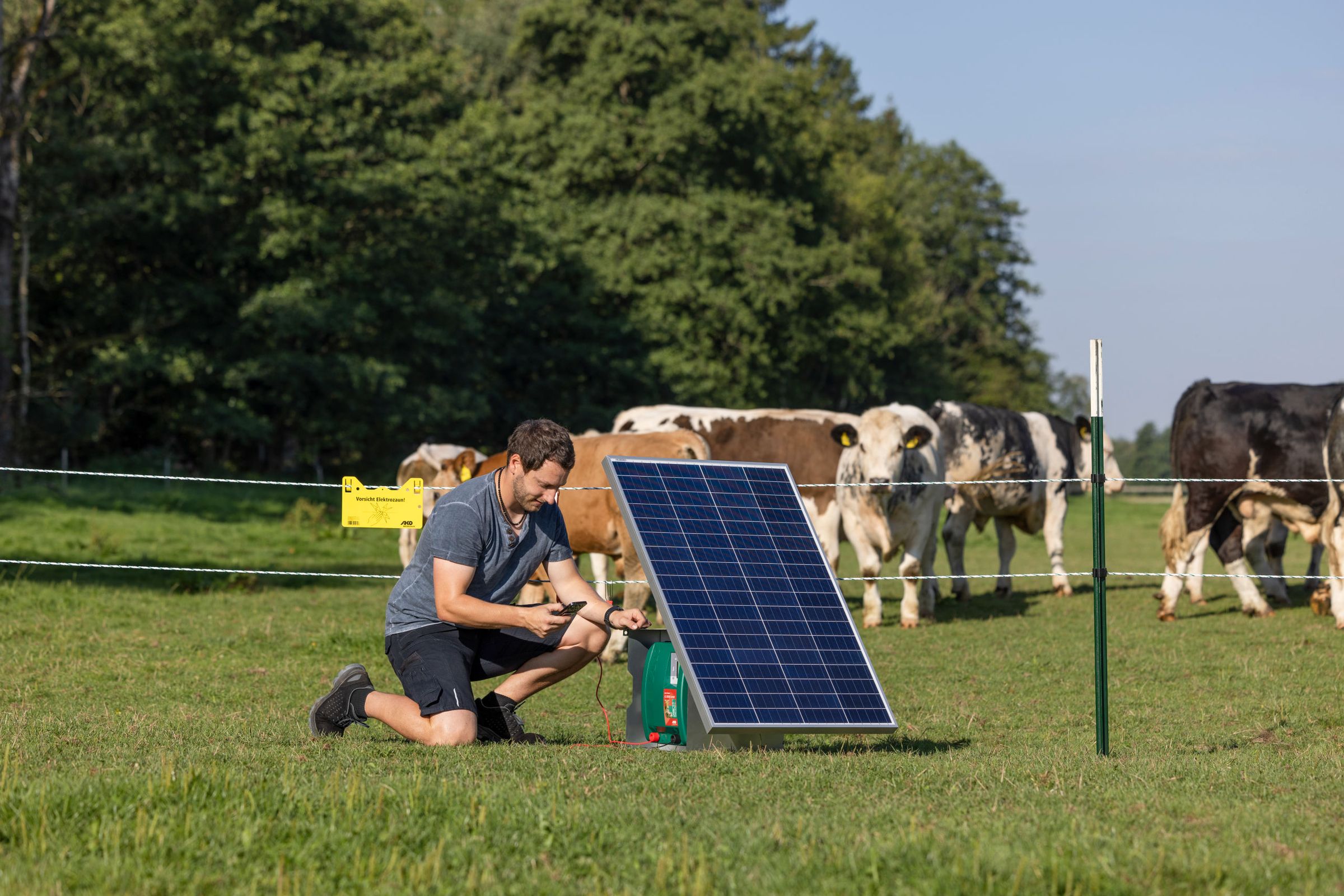

solar backup possible

robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics

integrated hanging device for wall mounting

corresponds to applicable EU safety standards

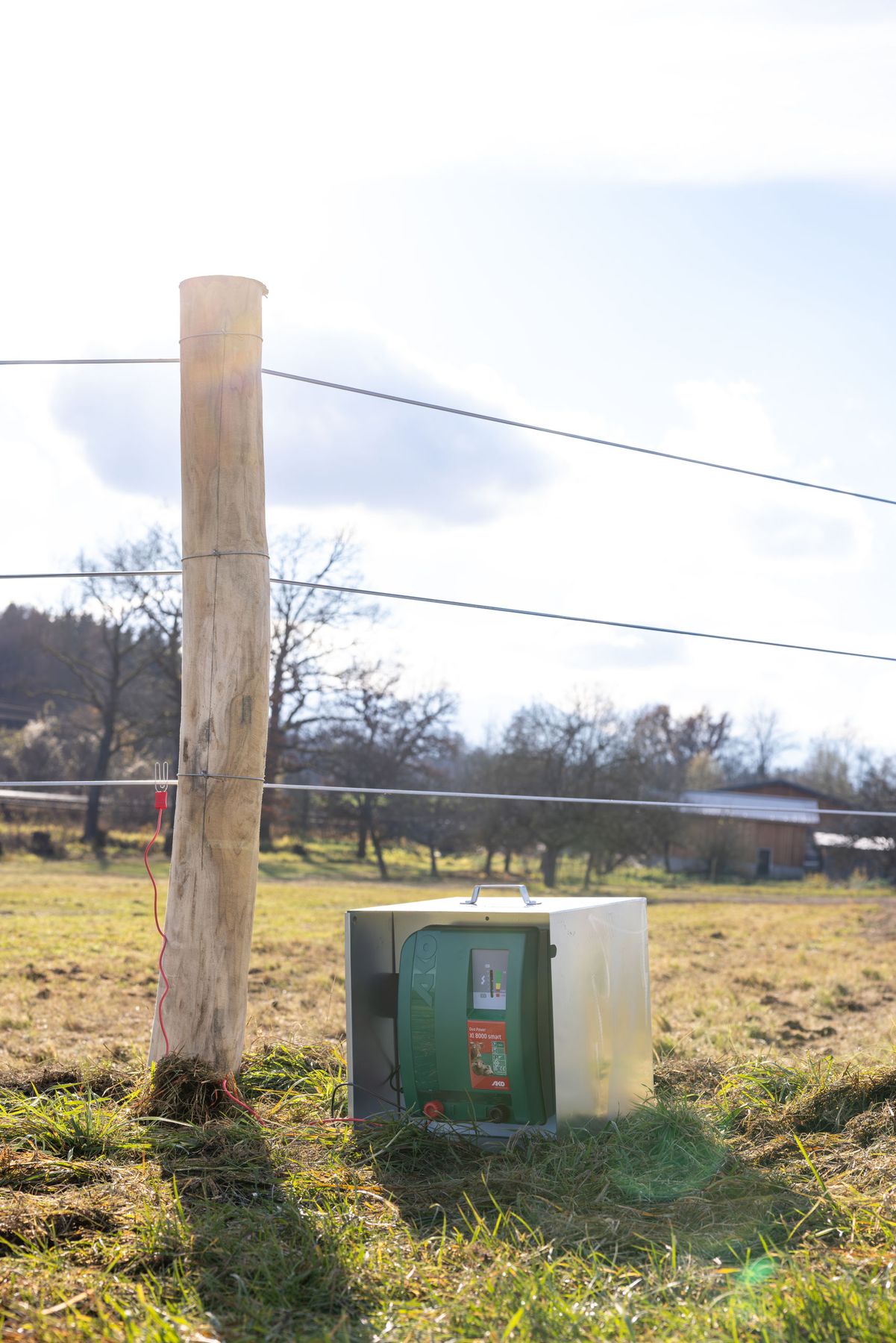

(suitable for metal box 44656 and 44650)

directly integrated cloud connection

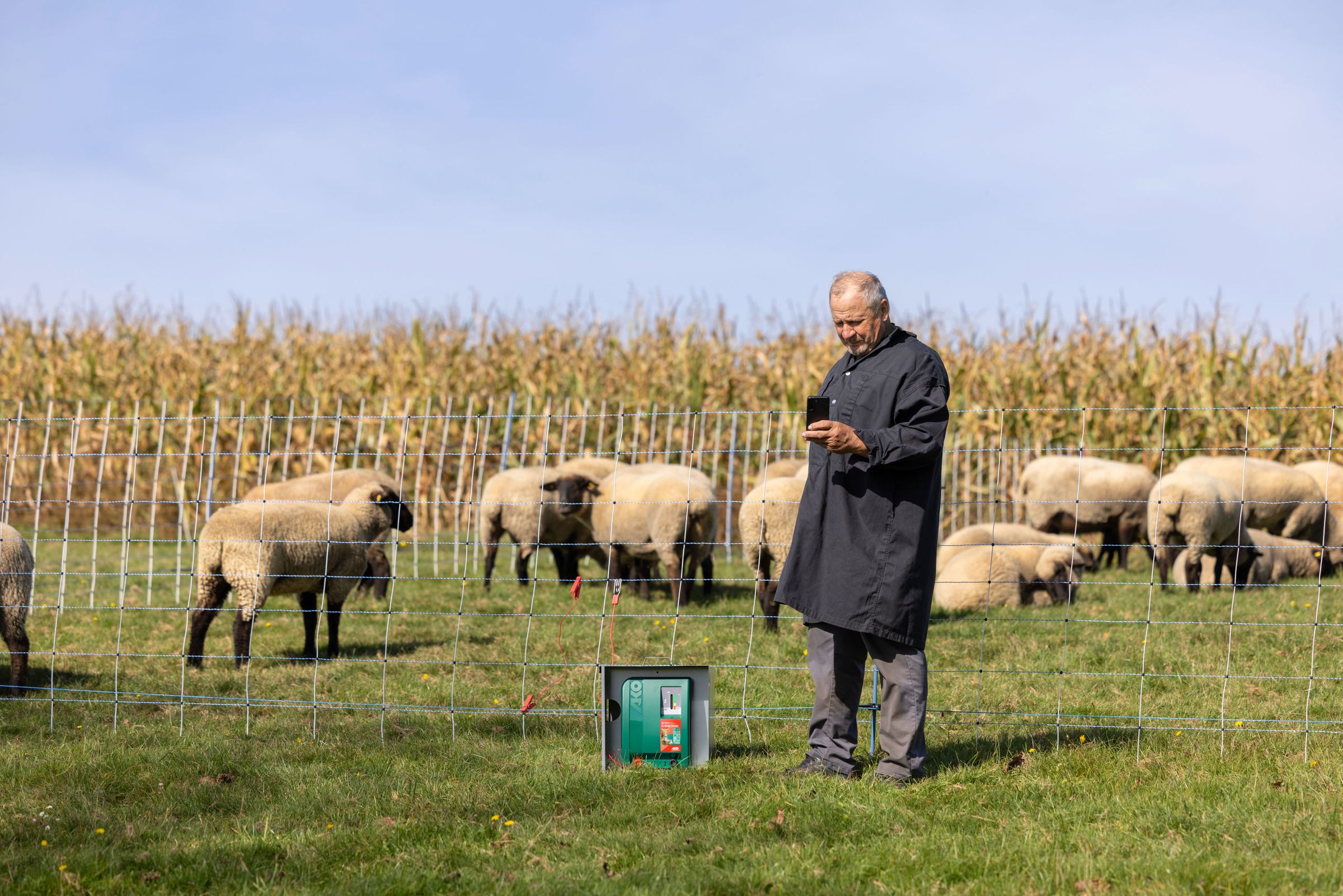

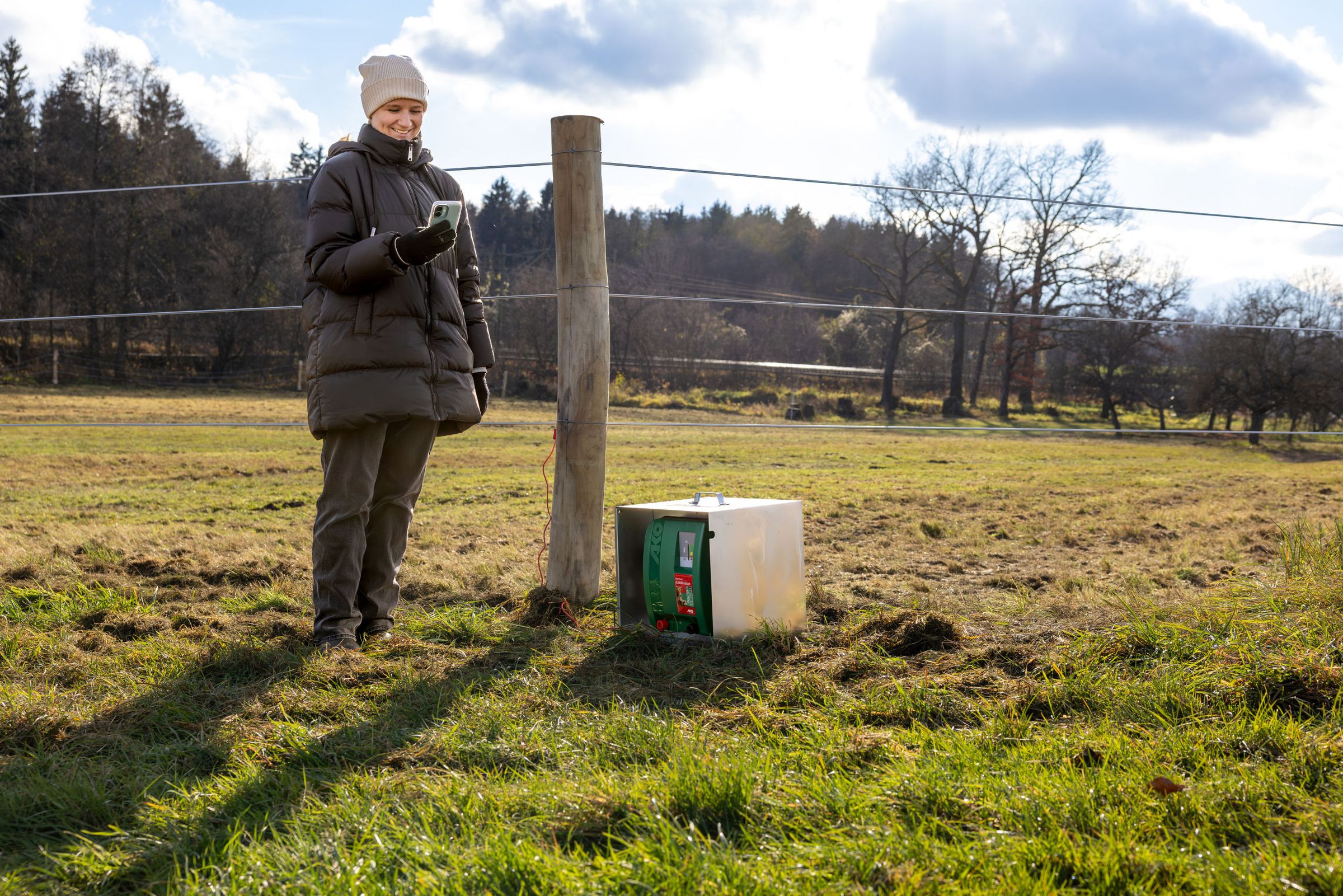

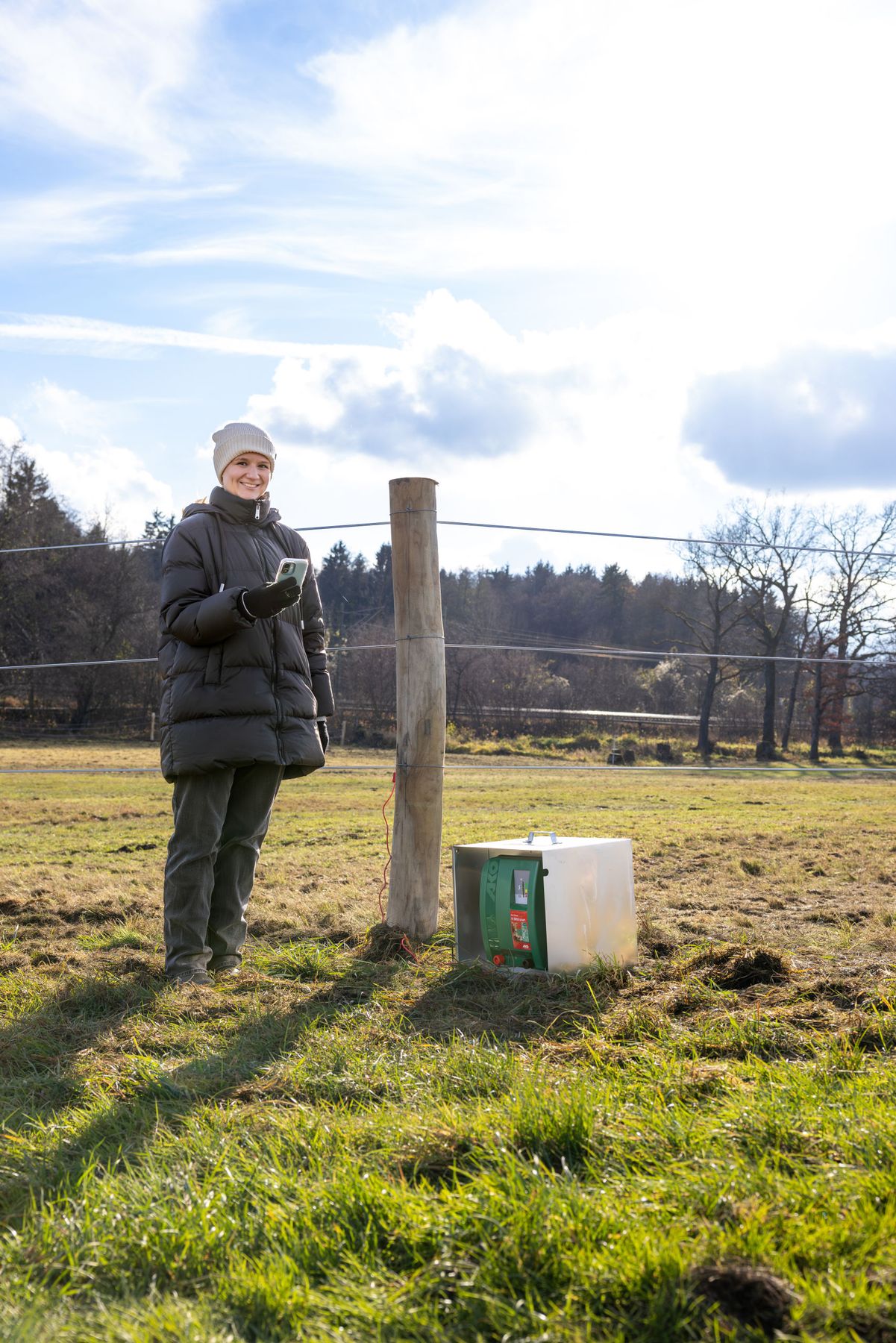

distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems by smartphone

permanently free mobile data transfer to the app

with High/Low/Off switch

Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com

The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
