Duo Power X 6000 smart

The AKO Duo Power X 6000 smart combines maximum power with smart technology. With 7.50 Joules of charging energy, cloud connection, free mobile data transfer and a flexible 12/230 V power supply, it offers maximum power for your pasture up to a length of 40 km.

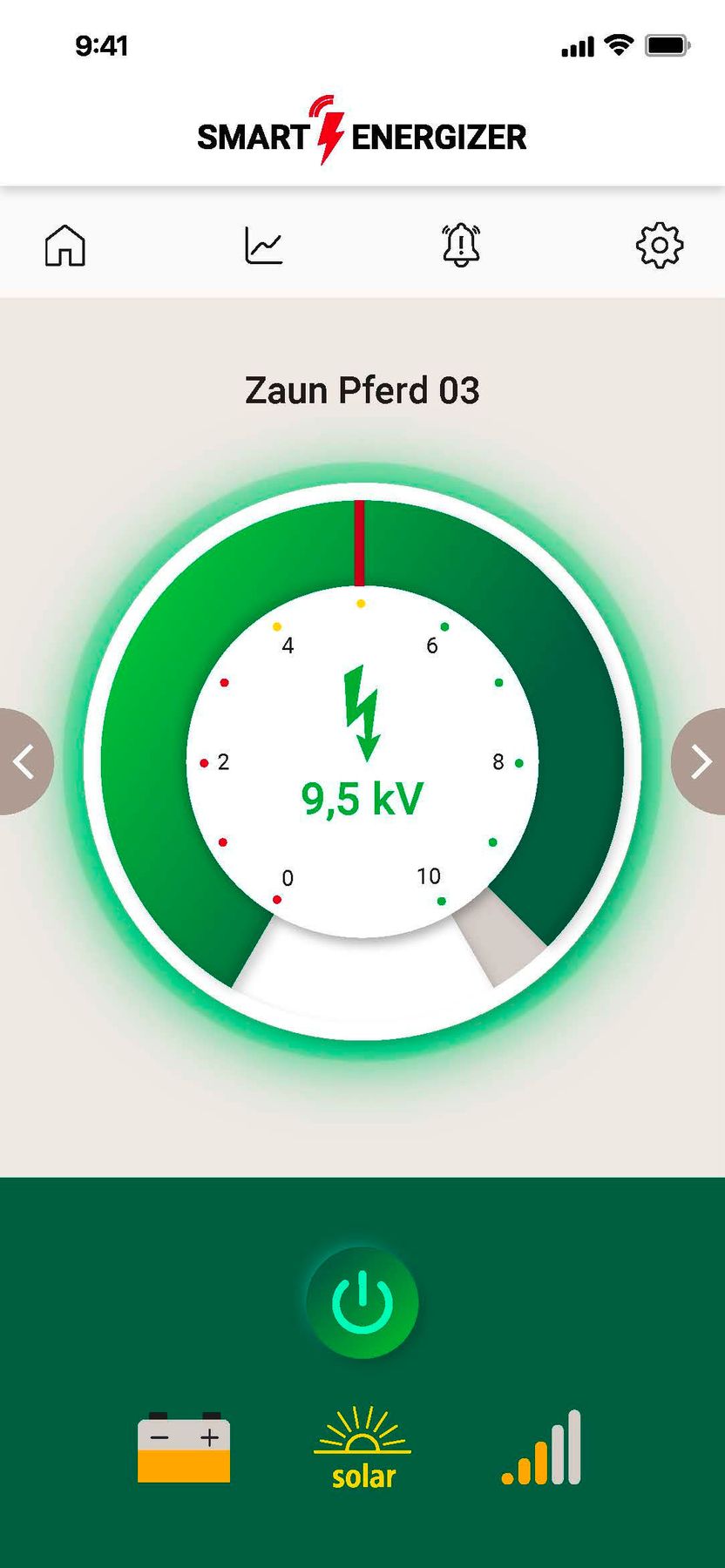

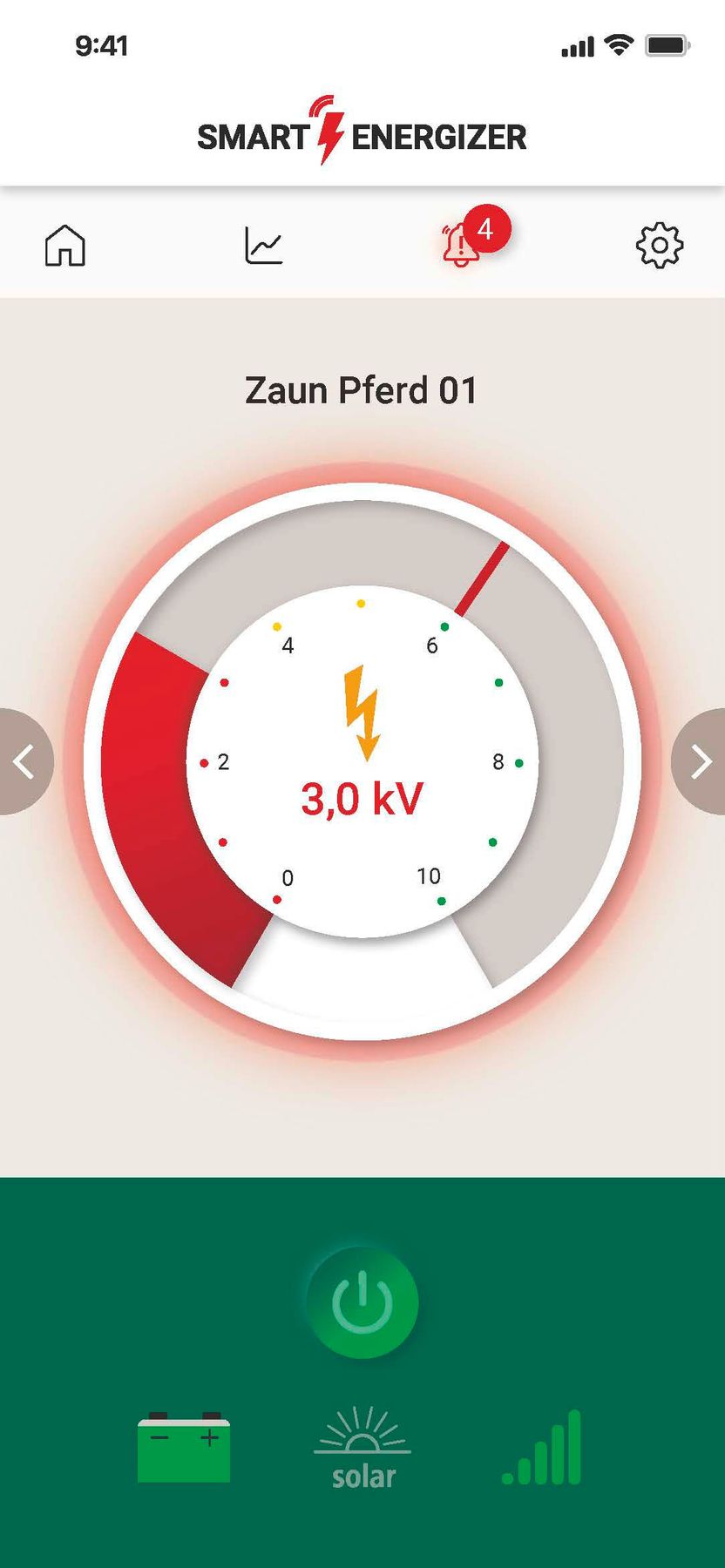

smart Energiser - can be controlled via smartphone app and computer browser
12/230 Volt DUO fence device – maximum flexibility combined with powerful output energy

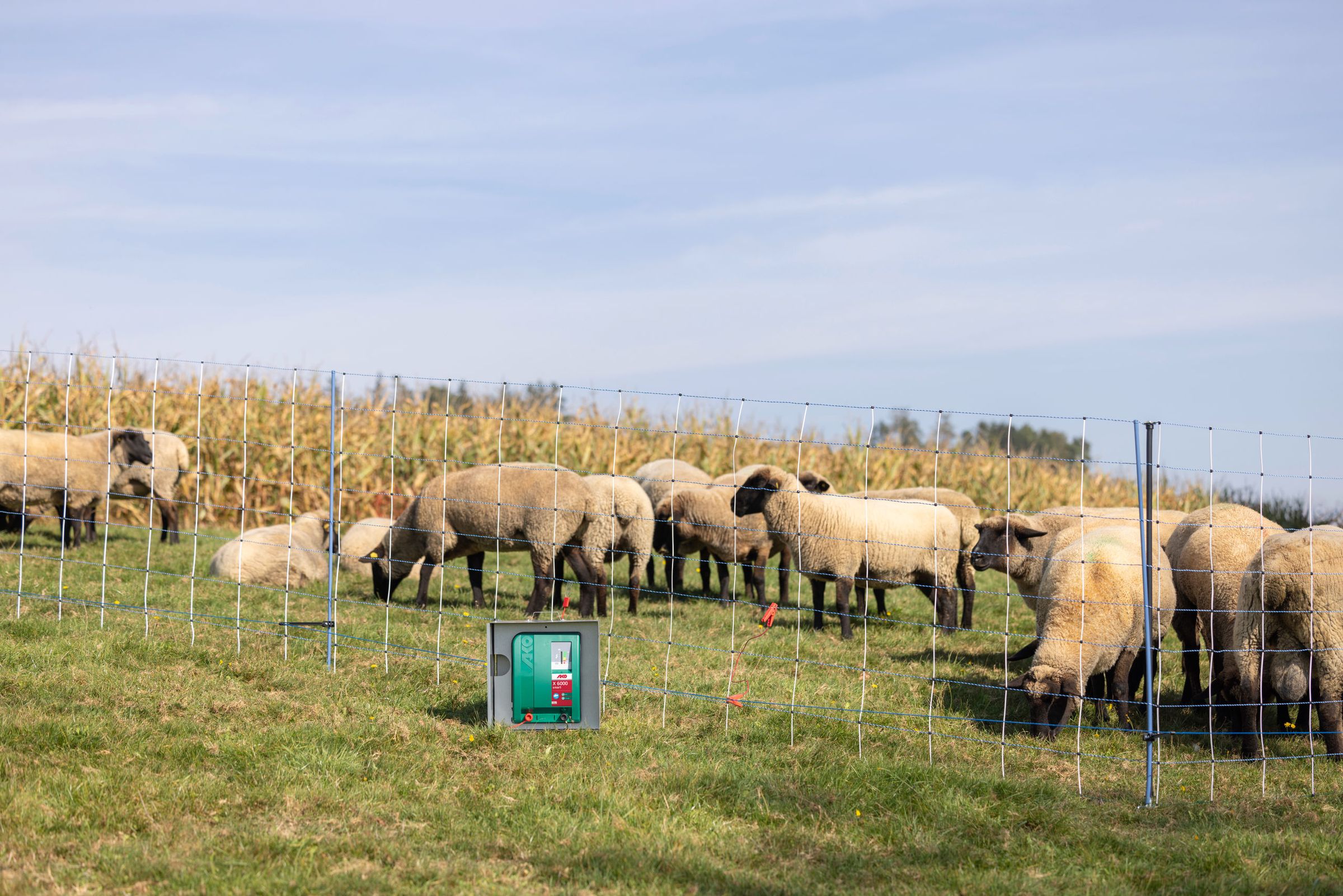

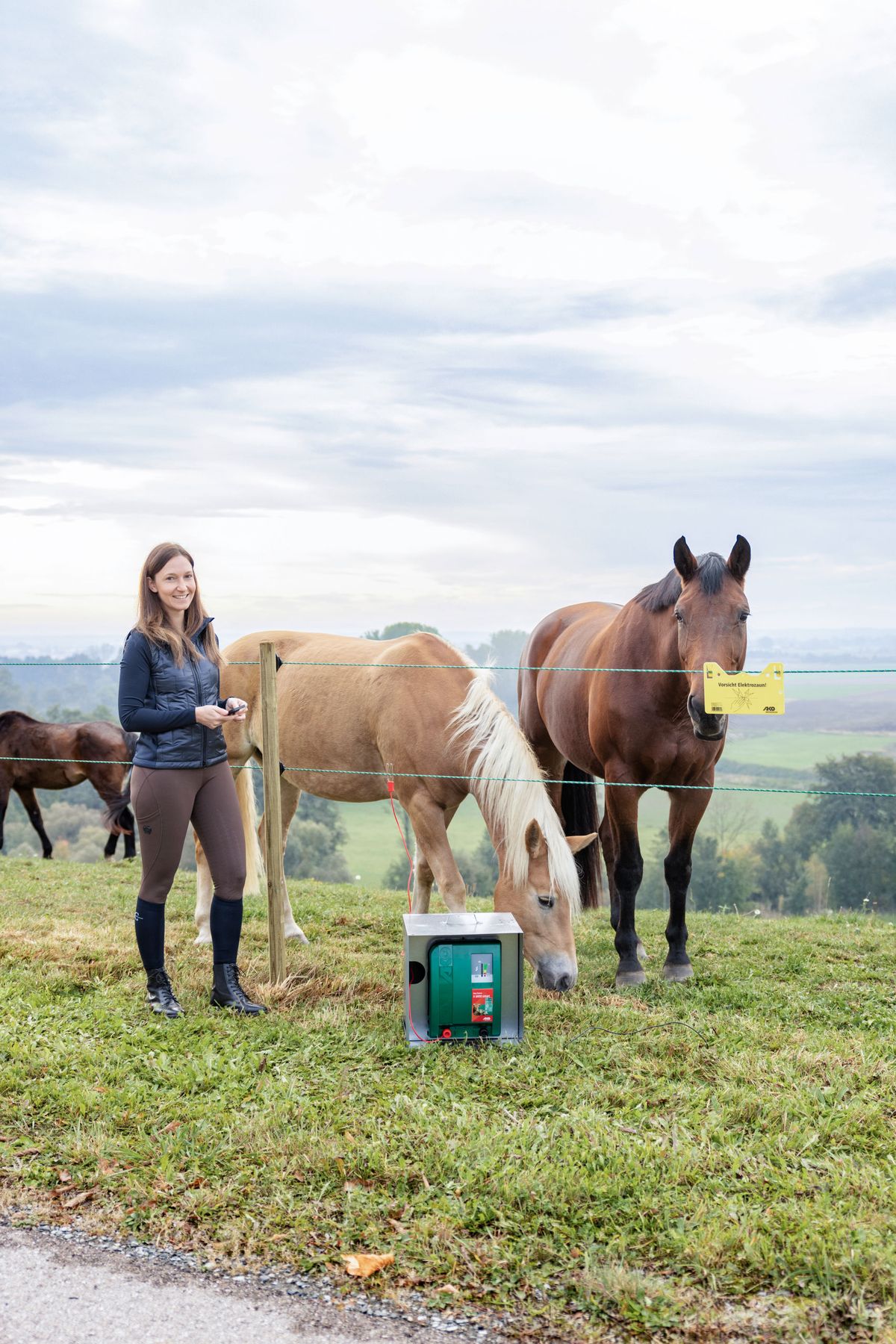

ideal for horses, cattle, sheep, goats and deterring wild boars and wolves
can be used with medium to heavy vegetative growth
5-year warranty

multi-colour LED bar graph display for output voltage and battery control

Retailer web shop

Ref. no.	PU	Pallet	€
372876	1	72 PAL	499.00

Model	X 6000 smart
Ref. no.	372876
Stored Energy	7.5 J
max. discharge energy	5 J
max. voltage	12000 V
Voltage in Open Circuit	10000 V
Voltage at 500 Ohms	9000 V
Voltage at 100 Ohms	3600 V
theoretical fence length as per VDE	130 km
max. fence length without vegetation	40 km
max. fence length with medium vegetation	11 km
max. fence length with high vegetation	6 km
Approx. Number of Electrifiable Nets	20
Qty 1 m earth posts	2
Qty 2 m earth posts	1
Power Consumption	140 mA, 380 mA

Impact force and fence length: the AKO Duo Power X 6000 is equipped with a charging energy of 7.50 J and a maximum voltage of 12,000 V. The device is used for fence systems up to 40 km without vegetation.

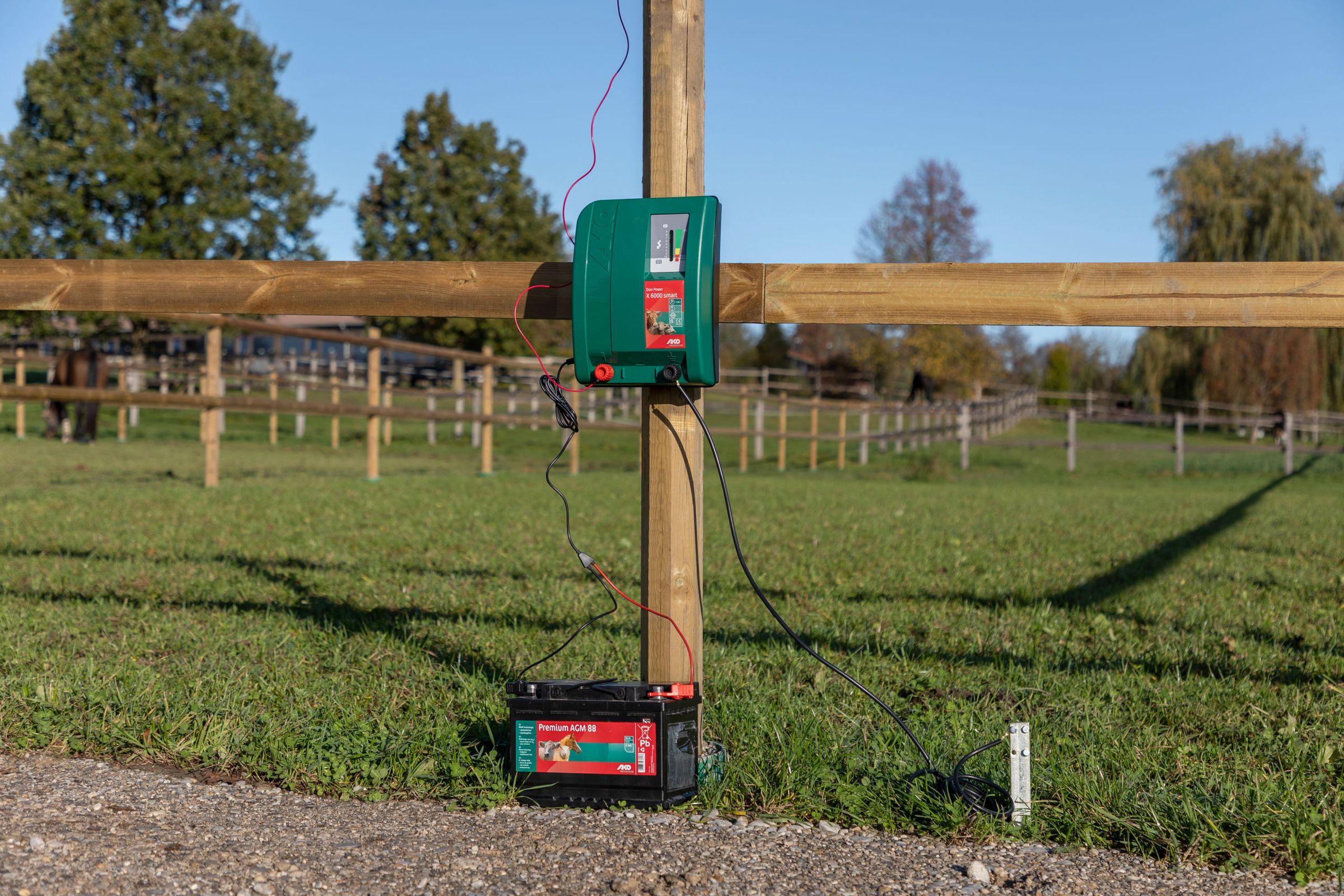

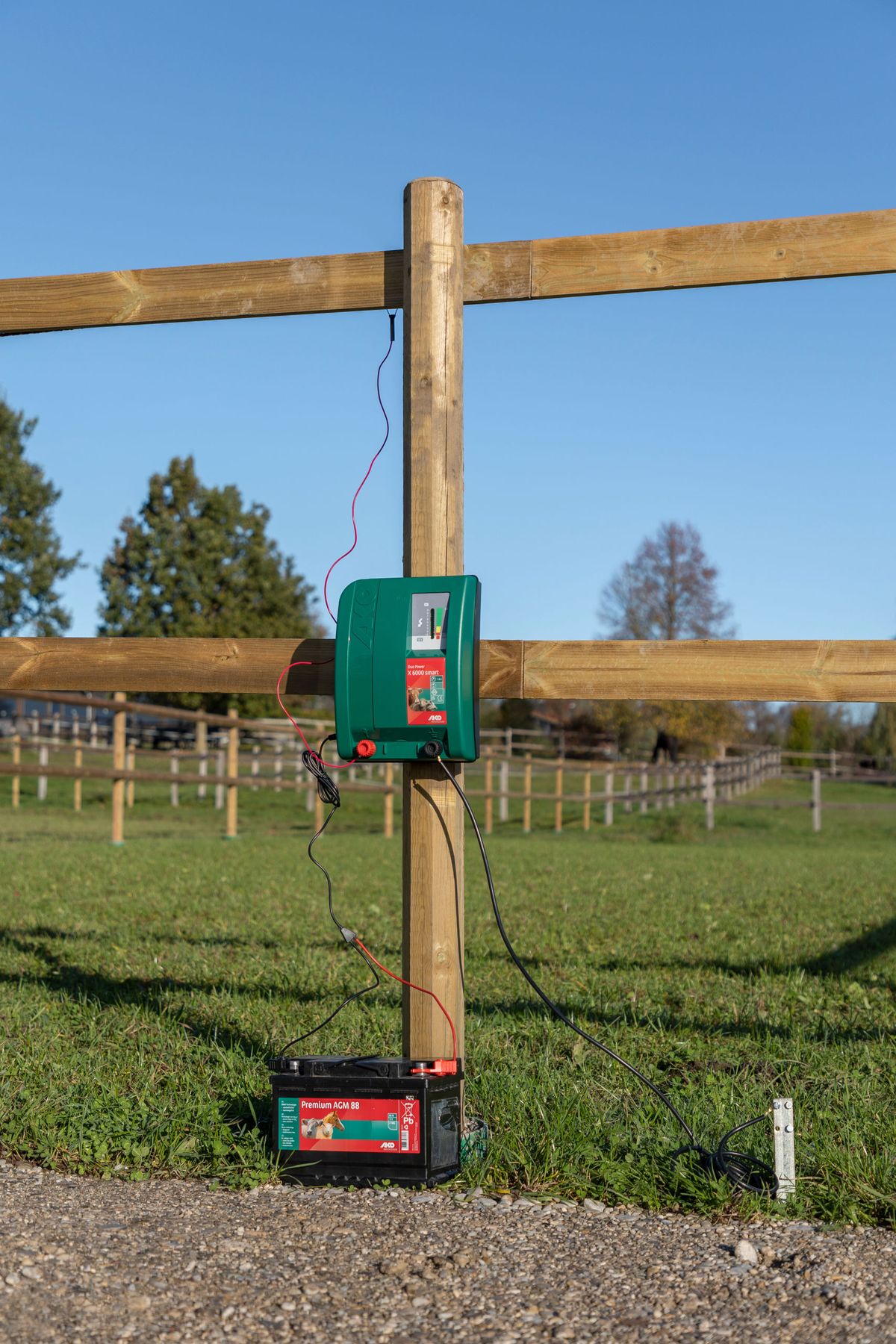

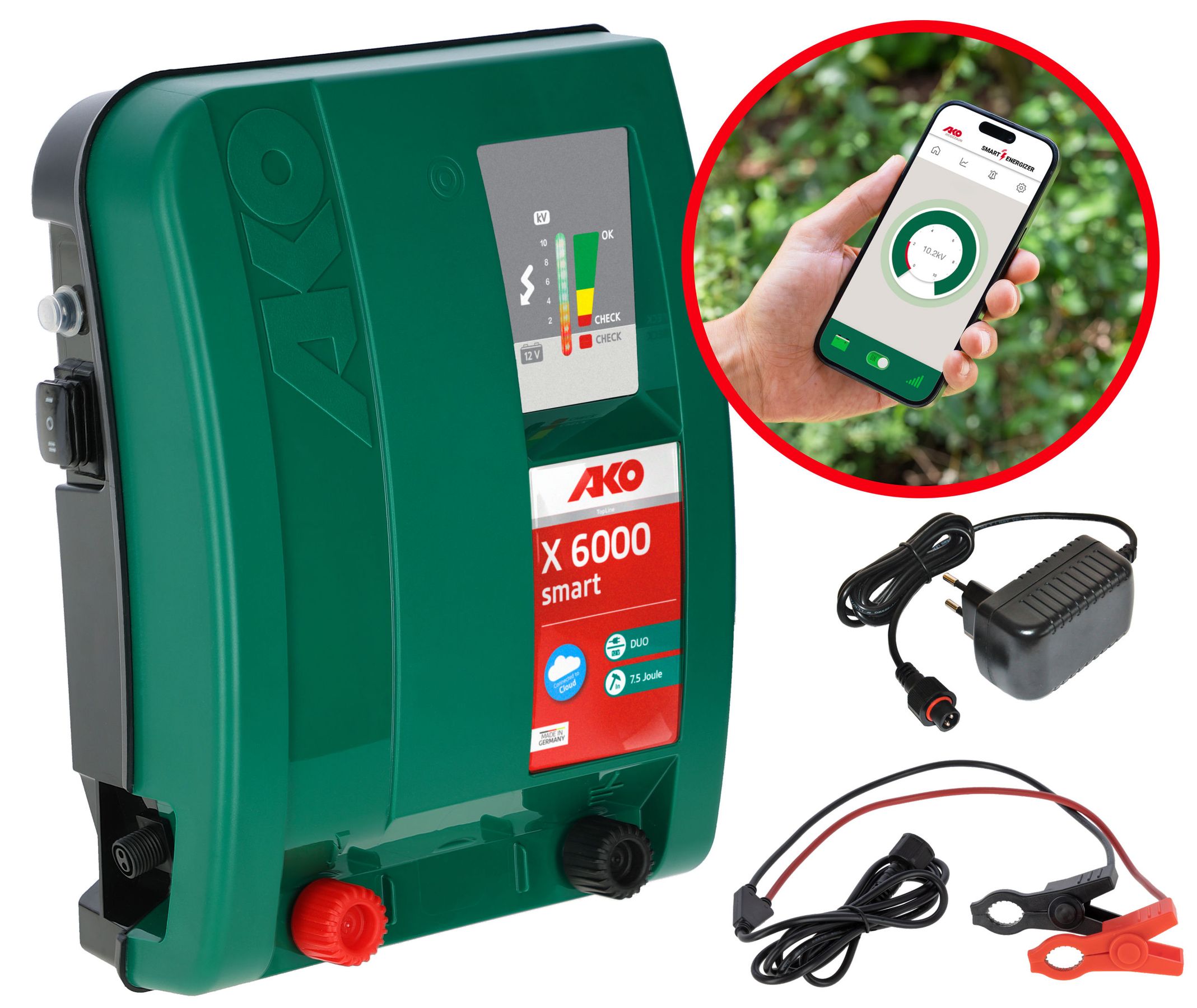

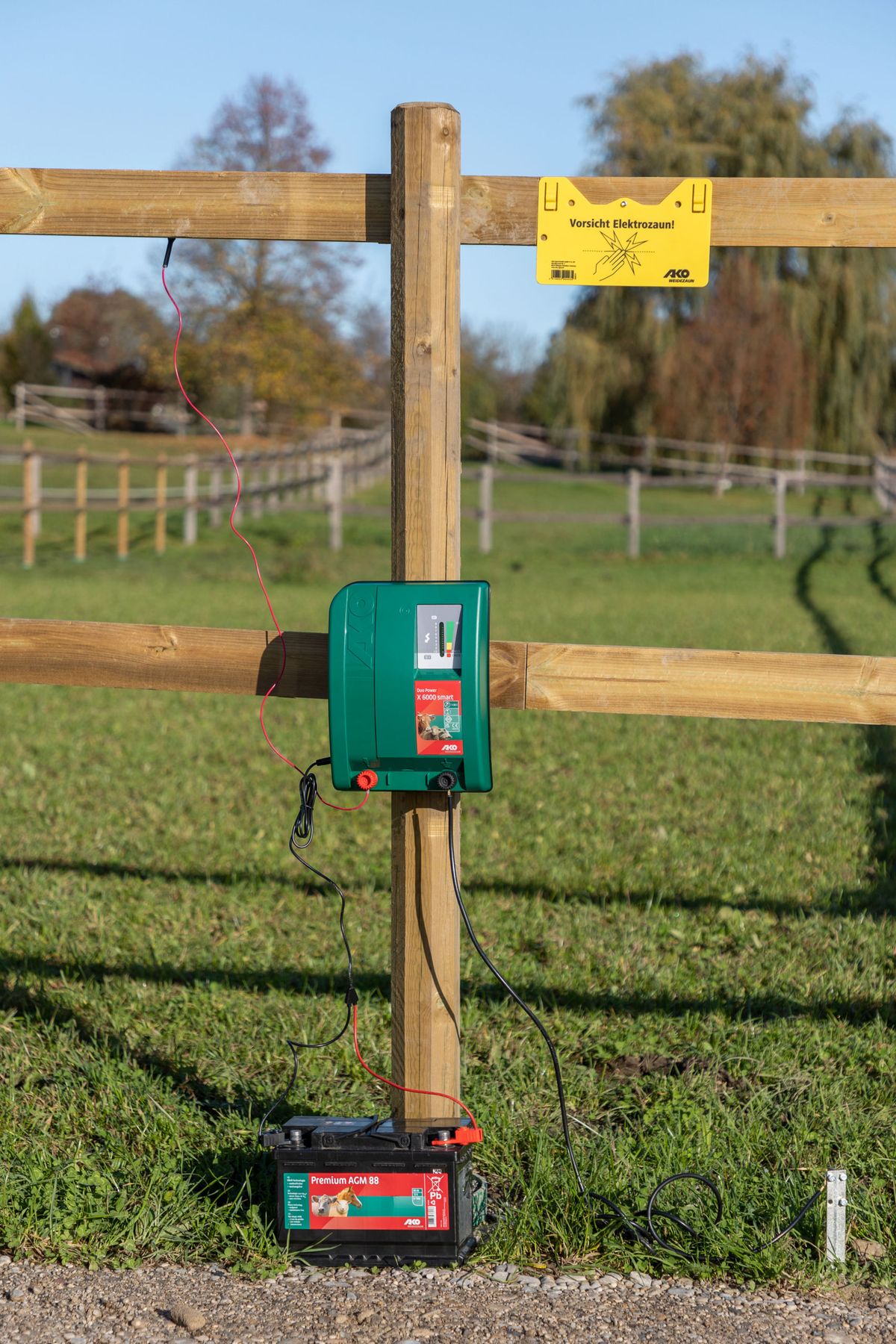

Power supply and animals: the device is a 12/ 230 V DUO fence device that can be operated with a 12 V connection cable or a 230 V mains adapter. Ideal for horses, cattle, sheep, wild boar and wolves.

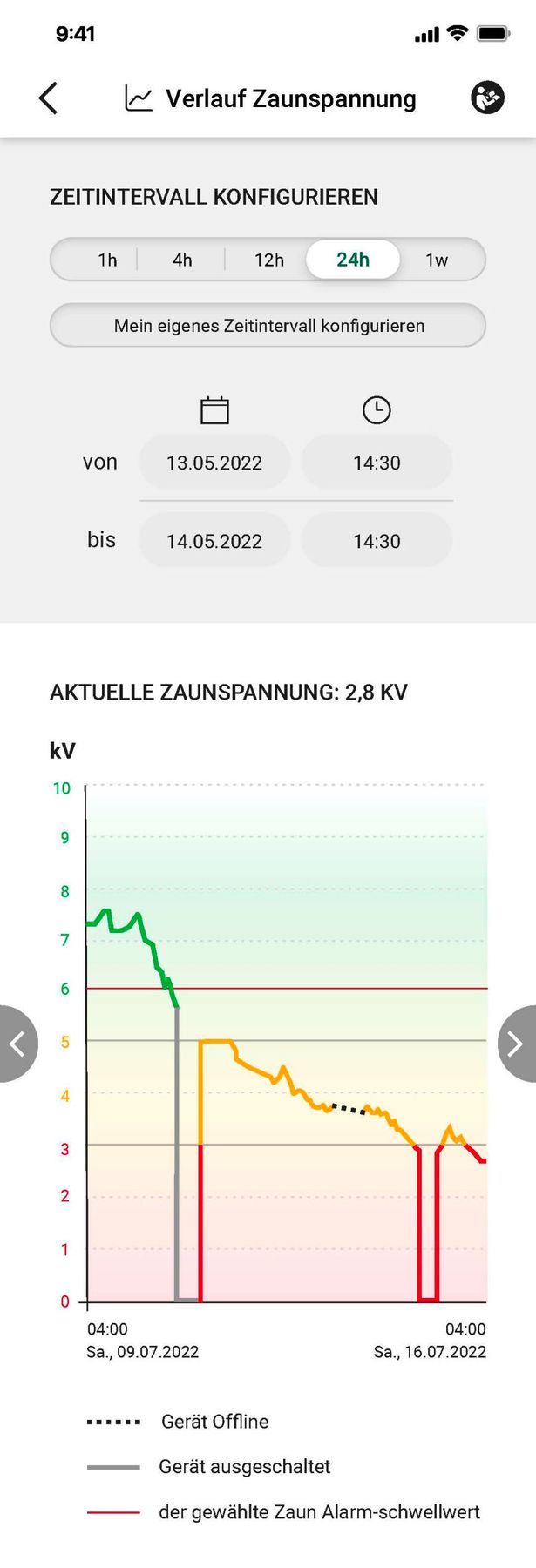

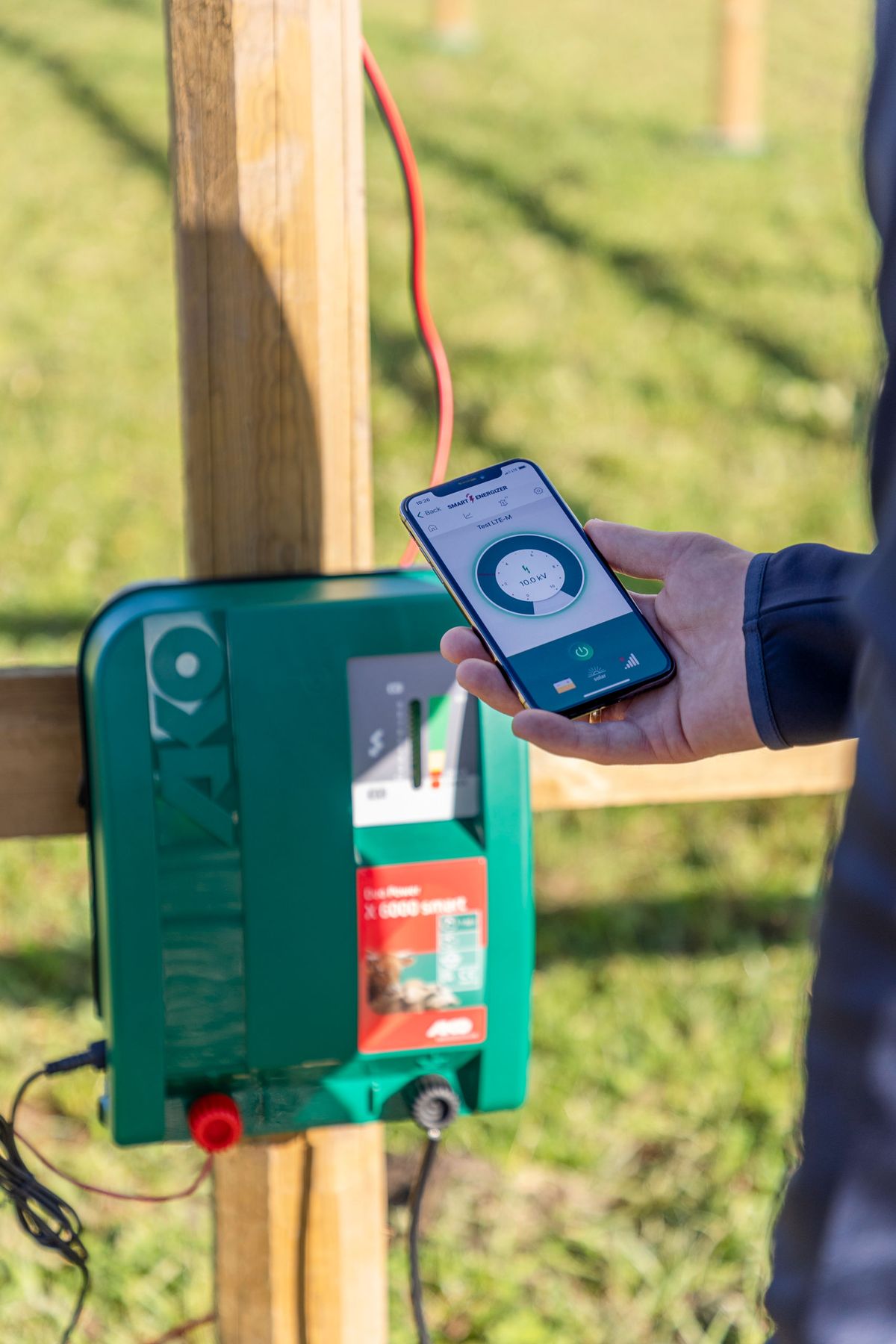

Functions: The Smart Energiser has an integrated connection to the cloud. This function enables distance-independent control and monitoring of the fence system via smartphone. The device is equipped with an I=ON-Low|0=OFF|II=ON-High switch.

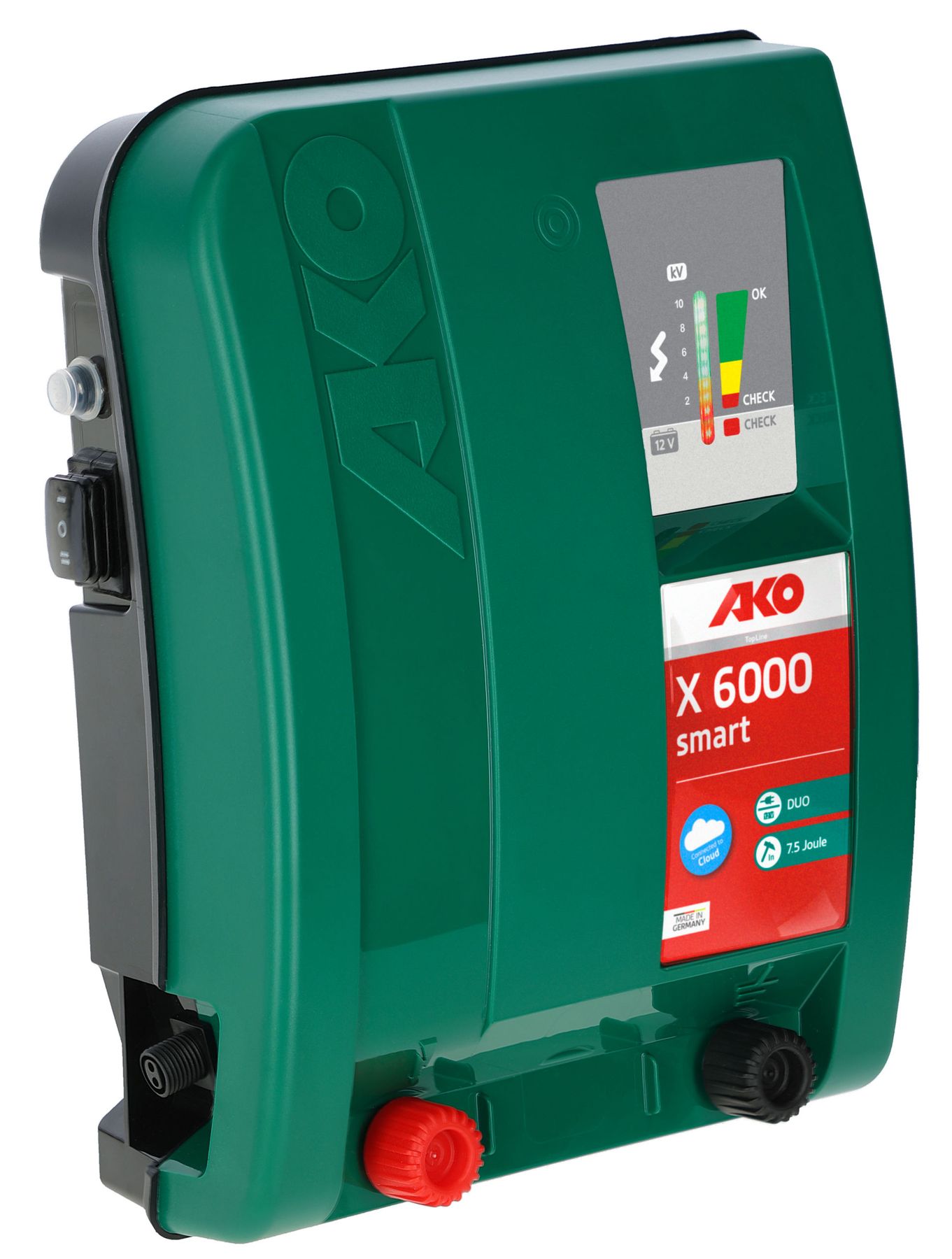

Display: the device is equipped with a multi-coloured LED bar graph display (11 LEDs). The lower "red" LED indicates the battery check. The 10 LEDs above (red/yellow/green) are used for visual monitoring of the output voltage. Red =< 2,000 V | Yellow/green => 2,000 V.

Housing and assembly: the robust housing made from UV-resistant plastic is weather-resistant and long-lasting. An integrated fitting allows wall mounting. If installed outdoors, the device must also be protected from rain and sunshine.

multi-colour, illuminated bar graph display (10 LEDs) for monitoring the output voltage

separate LED for battery warning (red)

optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.

deep discharge protection for the 12 volt battery

microprocessor controlled

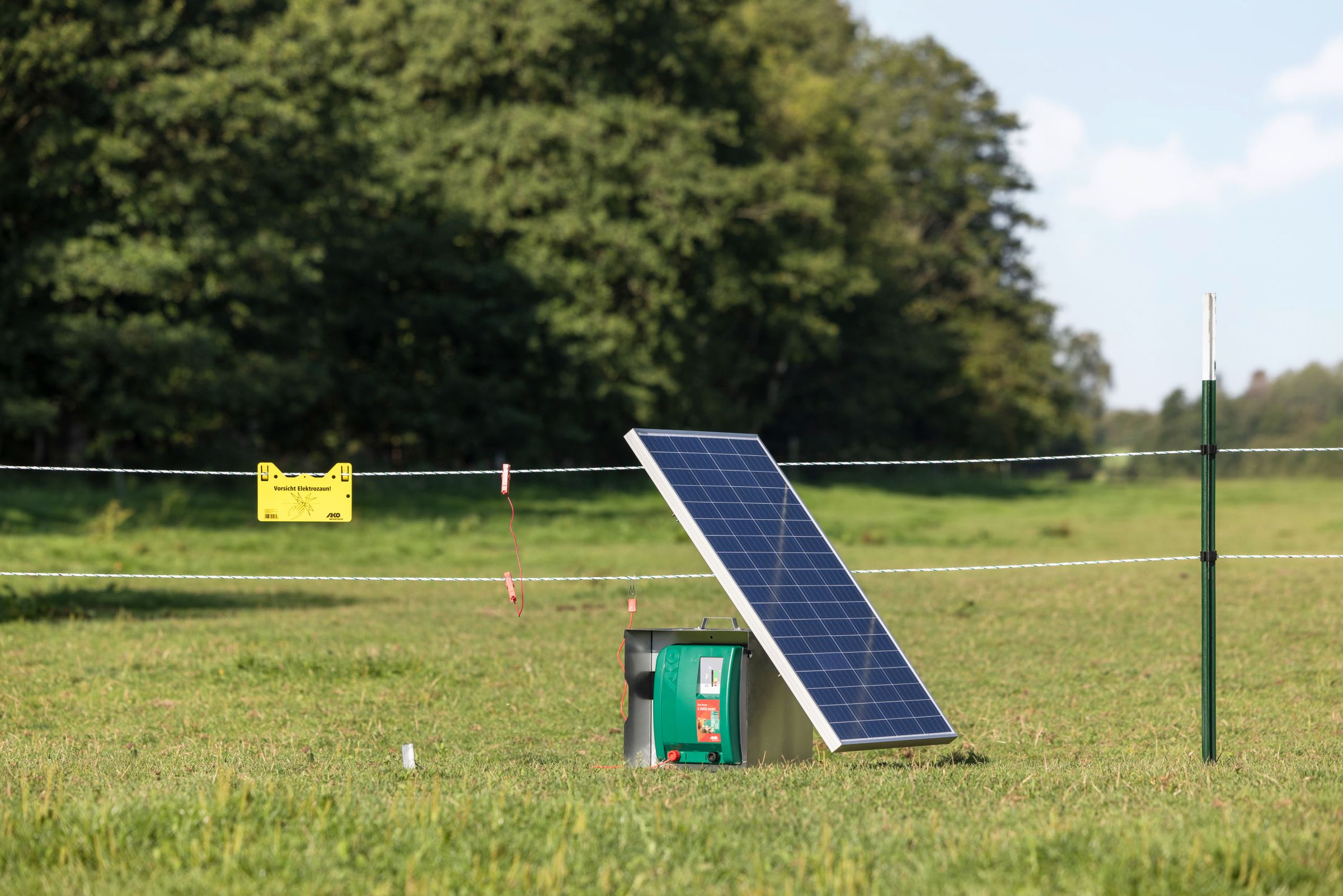

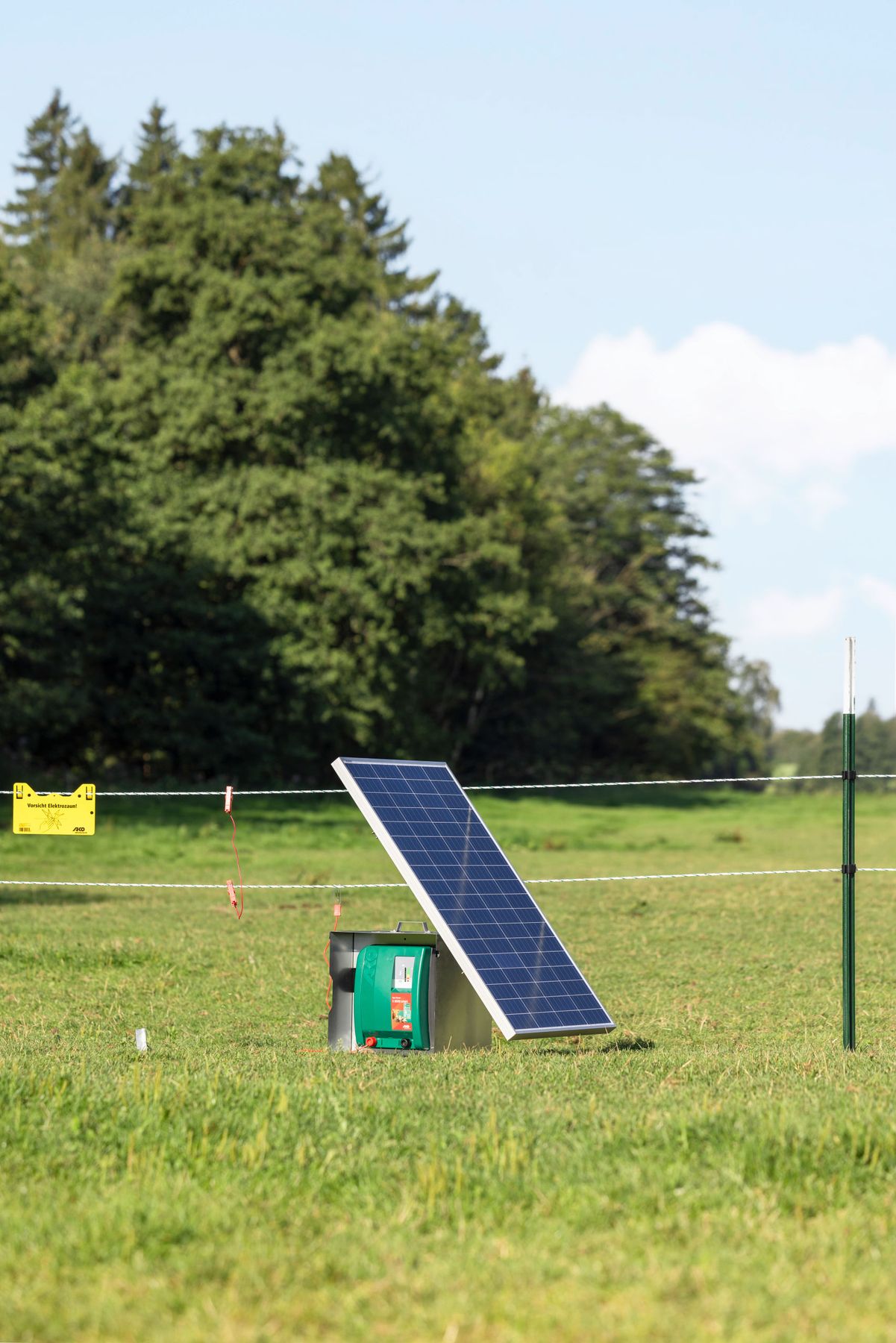

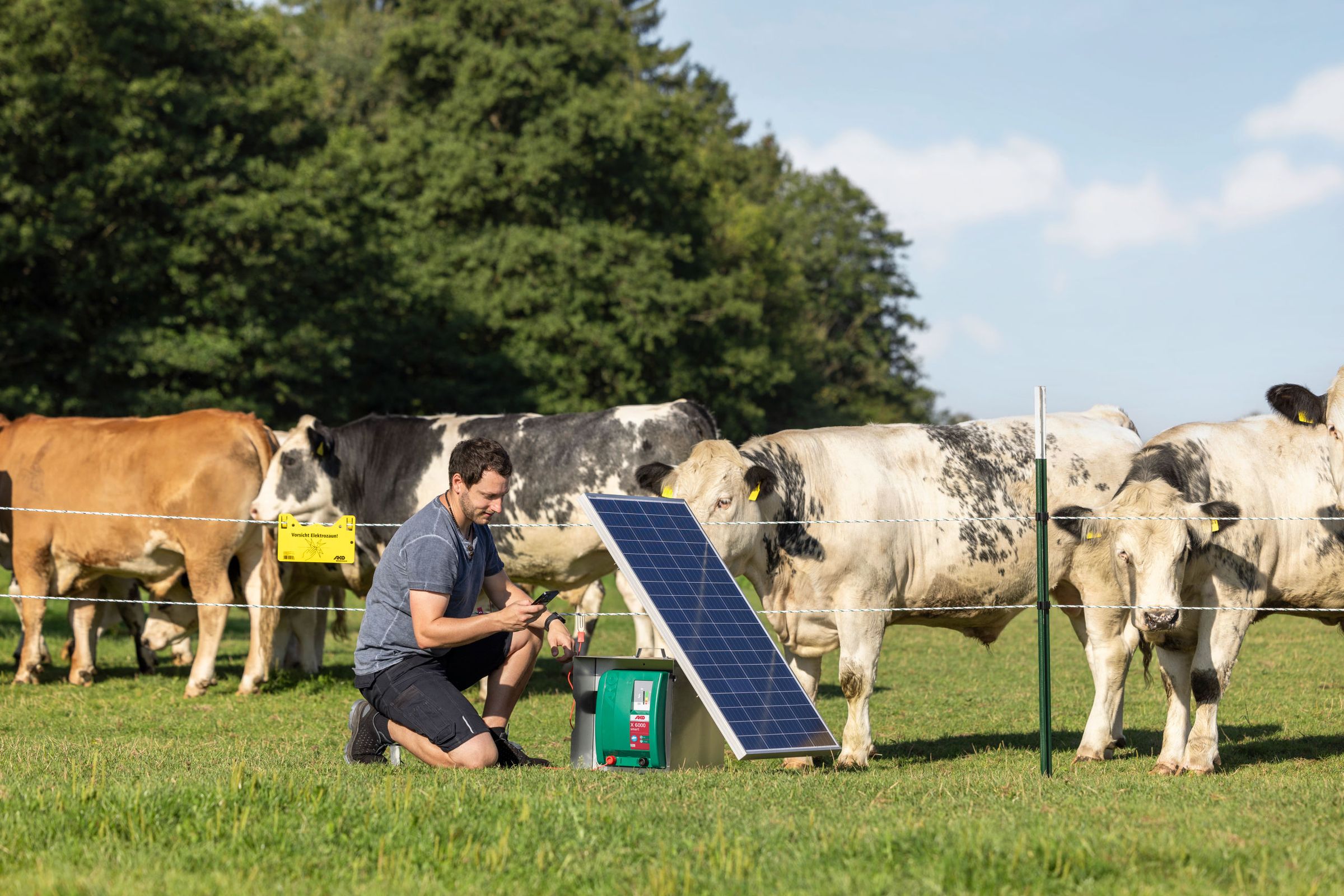

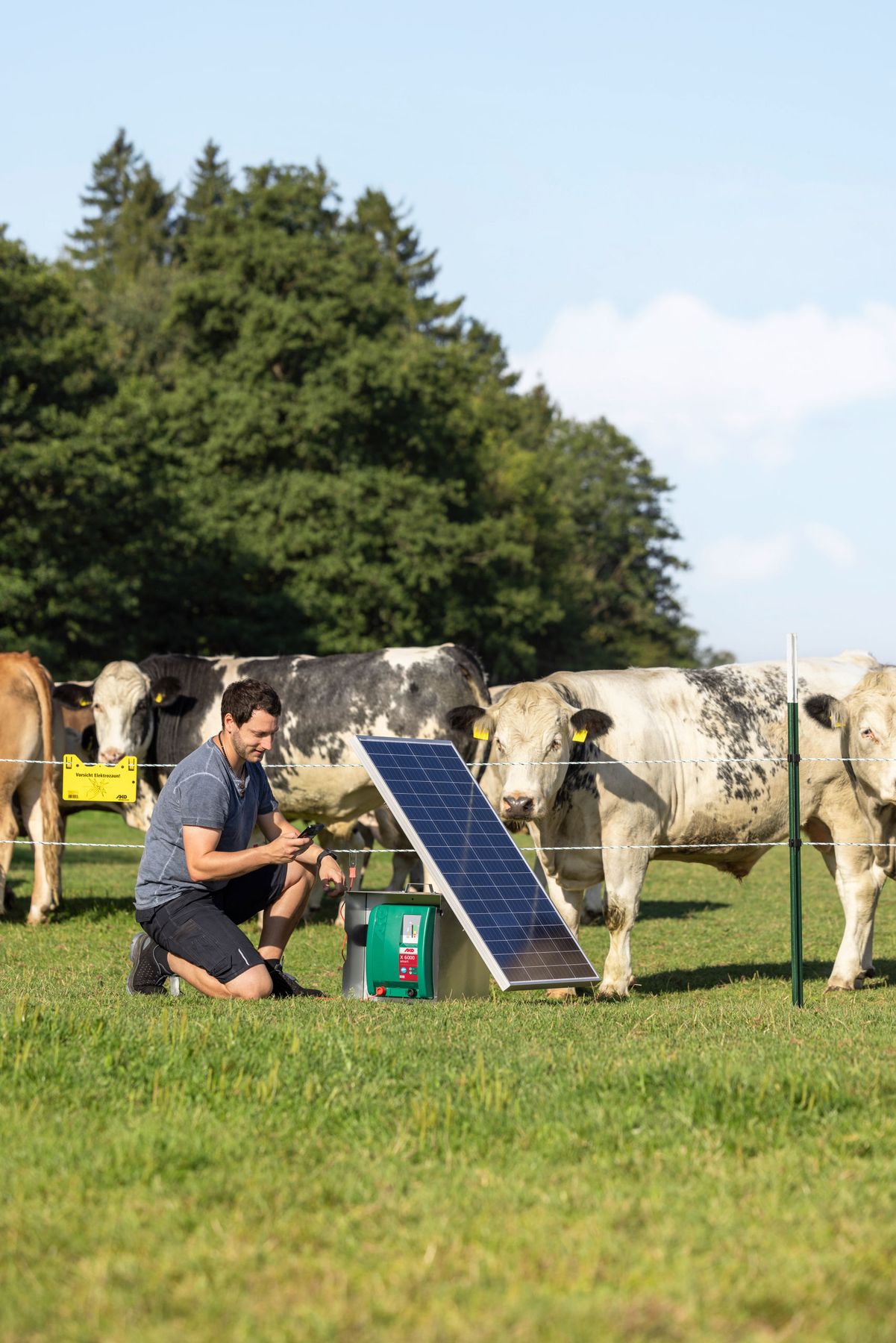

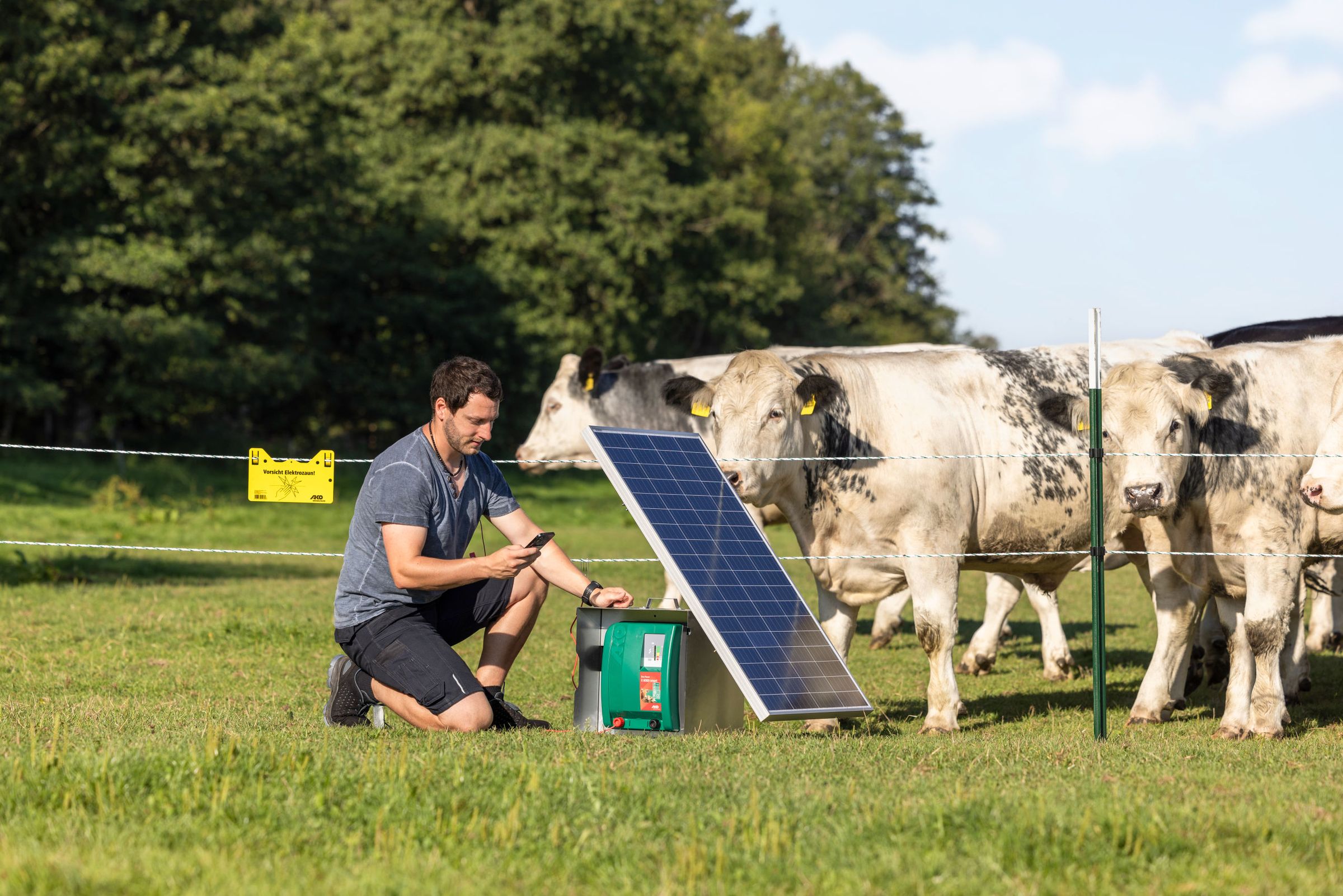

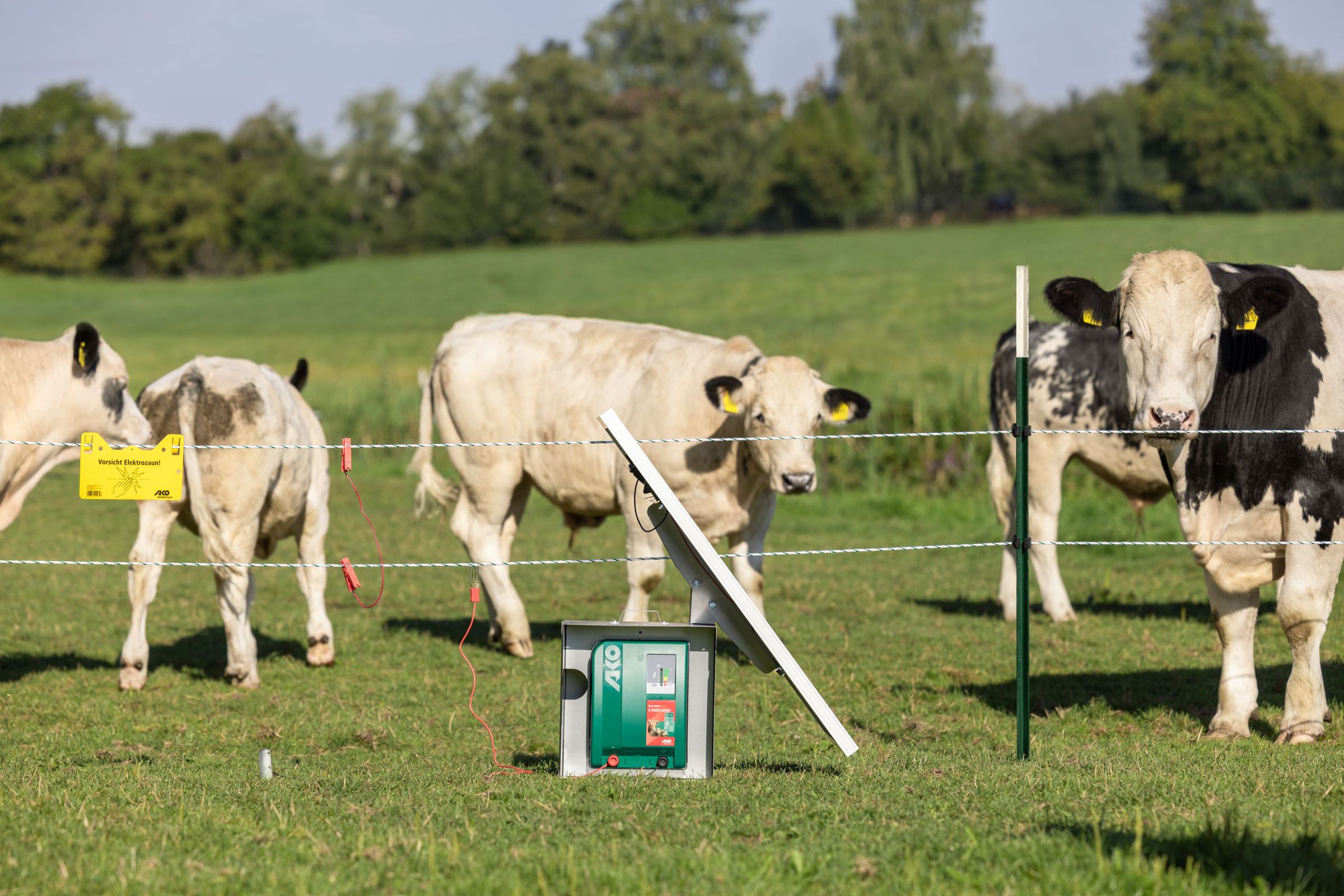

solar backup possible

robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics

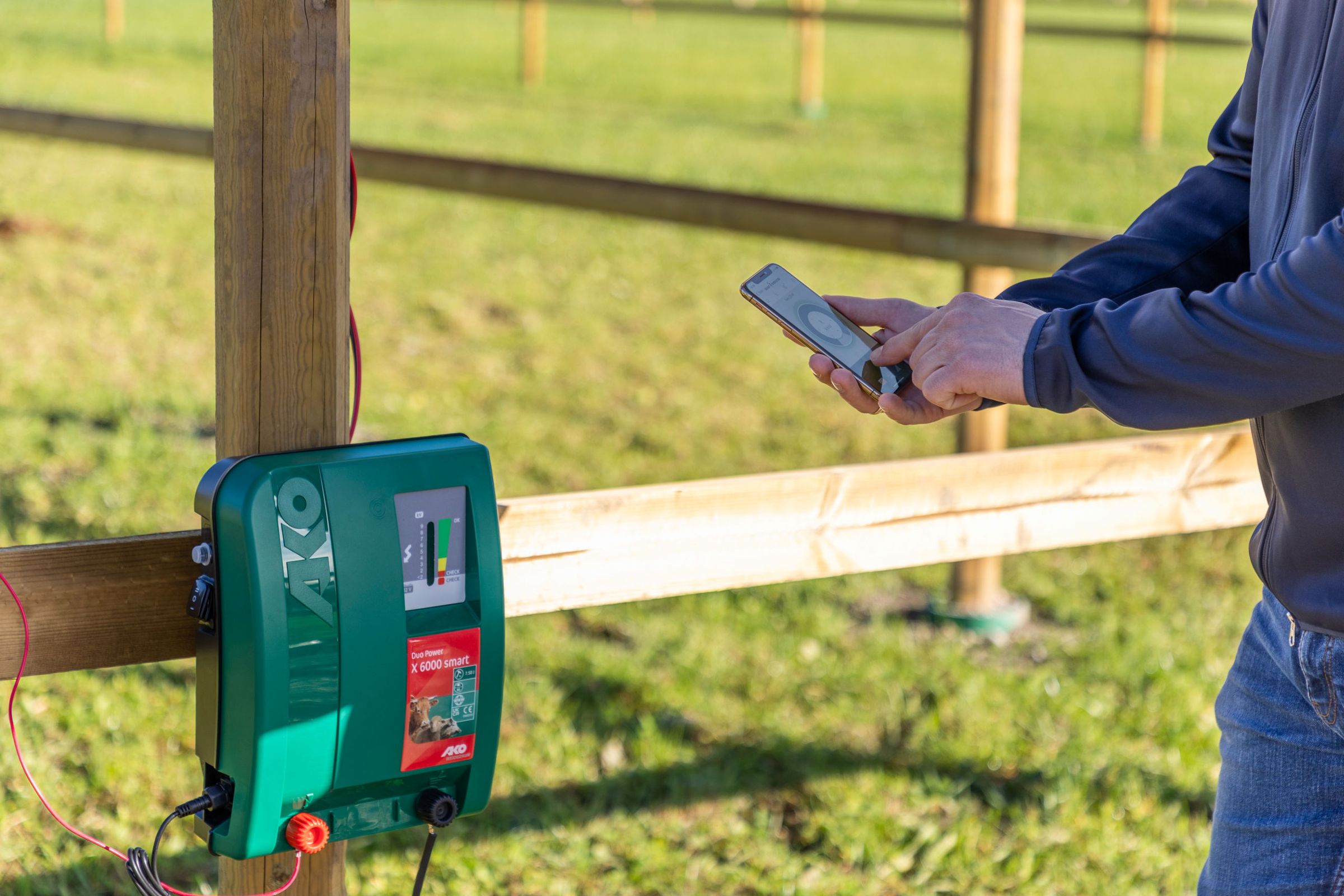

integrated hanging device for wall mounting

corresponds to applicable EU safety standards

(suitable for metal box 44656 and 44650)

directly integrated cloud connection

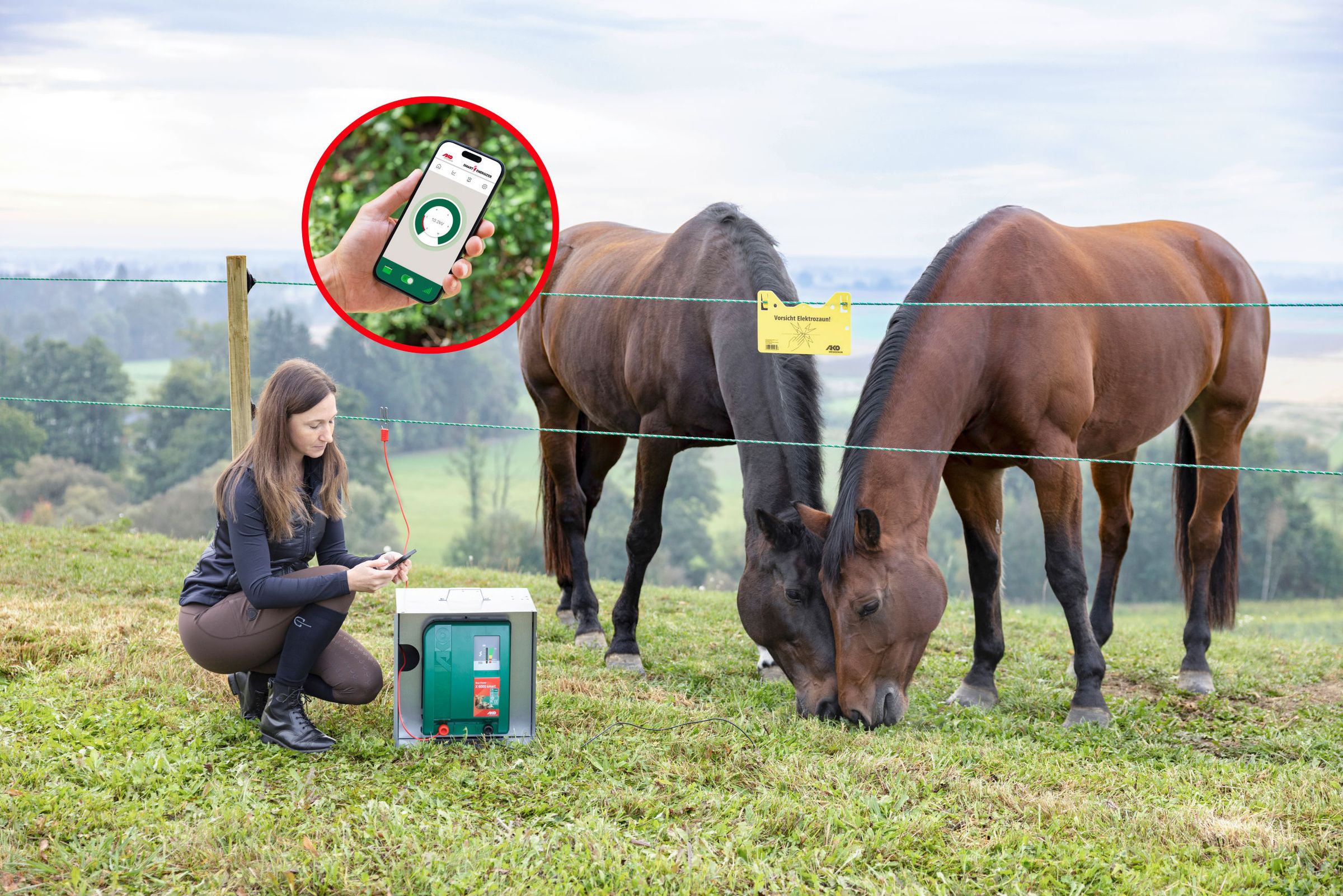

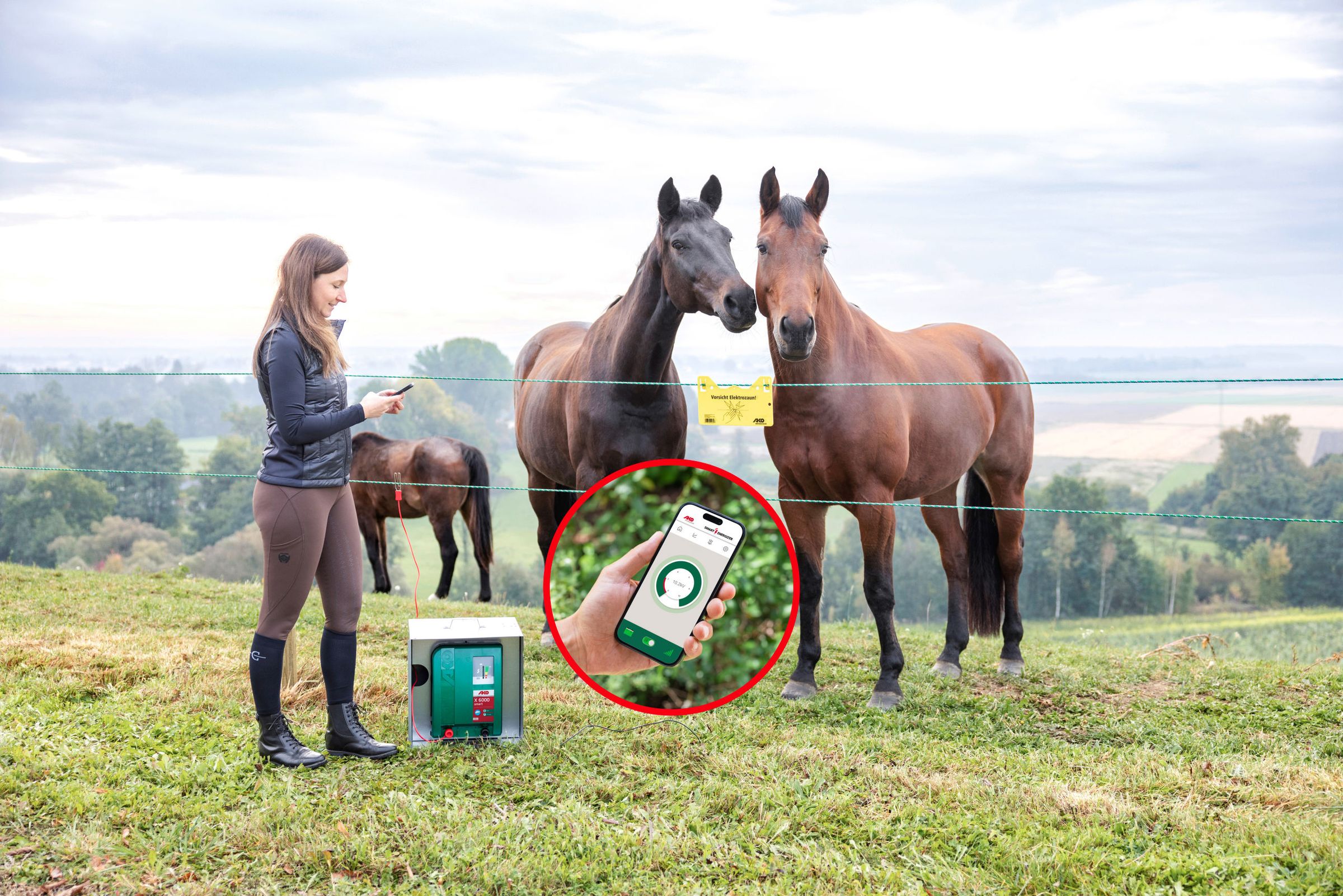

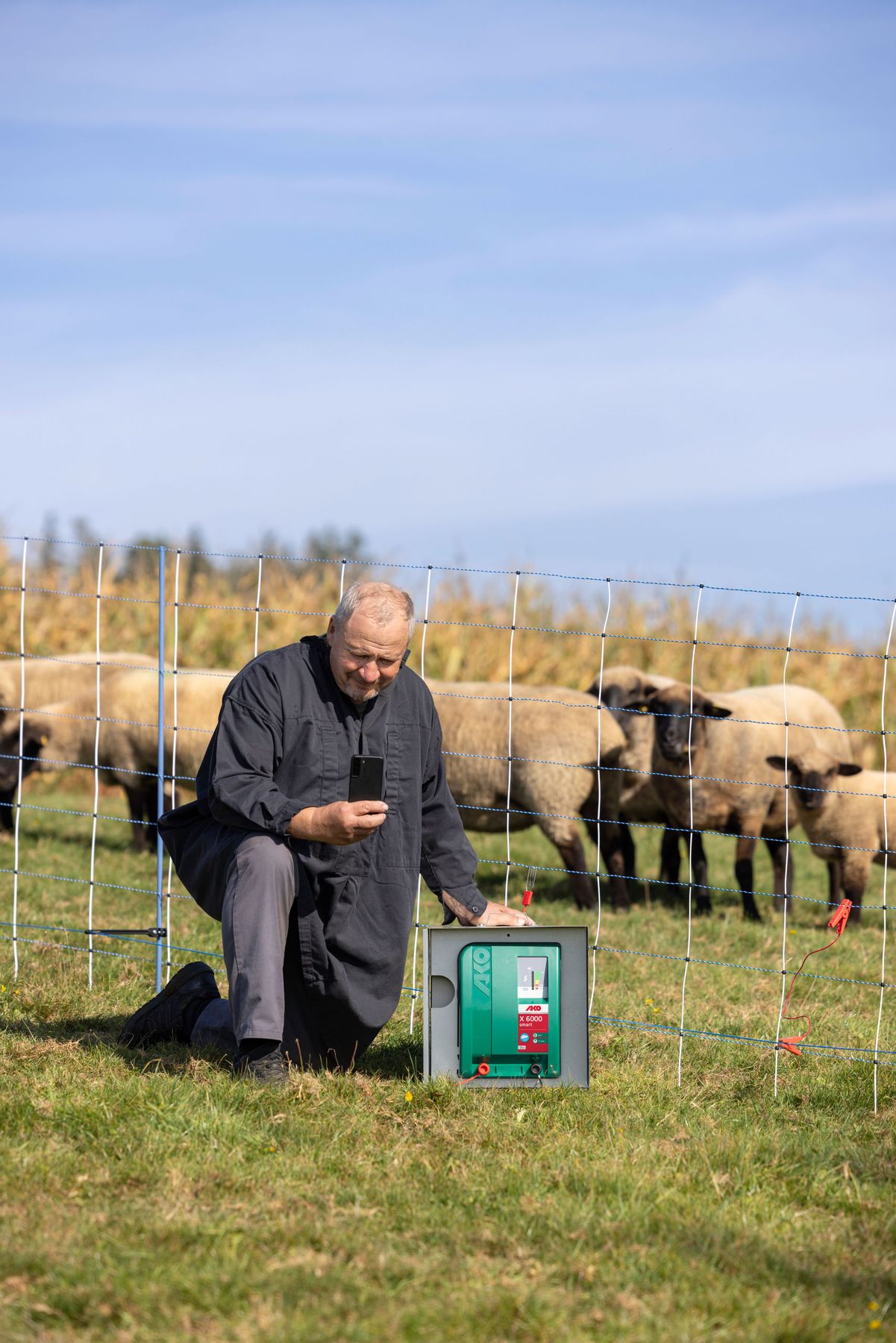

distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems by smartphone

permanently free mobile data transfer to the app

with High/Low/Off switch

Distributor: AKO Agrartechnik GmbH, DE, 88239, Wangen-Geiselharz, Karl-Maybach-Str. 4, Email address is loading., www.ako-agrar.com

The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
