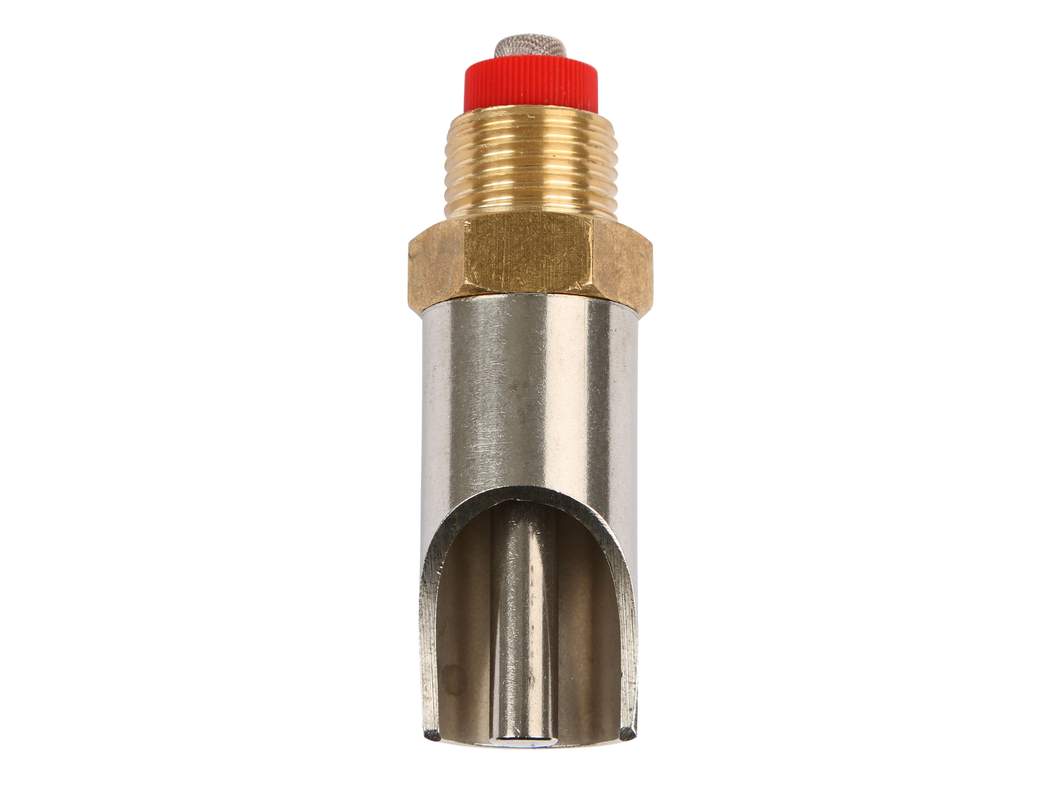

Bite Nipple
- stainless steel with brass threaded piece
- with stainless steel screen
- with acid-resistant EPDM sealing ring
- suitable for: high pressure and low pressure
| Ref. no. | Total length | Fitted length | Ø external thread | Ø nipple | Ø pin | Water flow rate l/min (3 bar) | MOQ | Pieces / unit | PU | € |
|---|---|---|---|---|---|---|---|---|---|---|
| 22334 | 87.5 mm | 49 mm | 1/2" | 3/4" | 9 mm | 3 L/min | 5 pieces | 5 / pouch | 1/5/10/100 | 3.89 |
| 22363 | 75.5 mm | 42 mm | 1/2" | 1/2" | 9 mm | 2 L/min | 5 pieces | 5 / pouch | 1/5/50 | 3.89 |
| 22364 | 87.5 mm | 49 mm | 3/4" | 3/4" | 9 mm | 3 L/min | 5 pieces | 5 / pouch | 1/5/50 | 4.29 |
| 22385 | 68 mm | 33 mm | 1/2" | 3/8" | 7 mm | 2.5 L/min | 5 pieces | 5 / pouch | 1/5/10/100 | 3.49 |
The prices shown are the manufacturer's recommended retail prices for Germany (including VAT).
