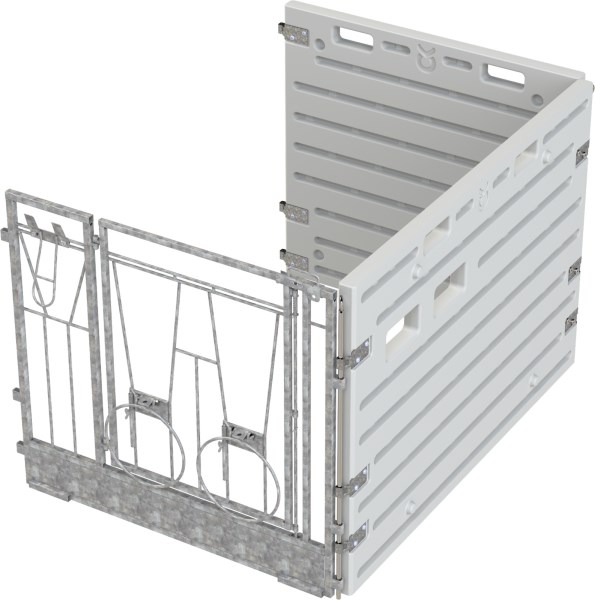

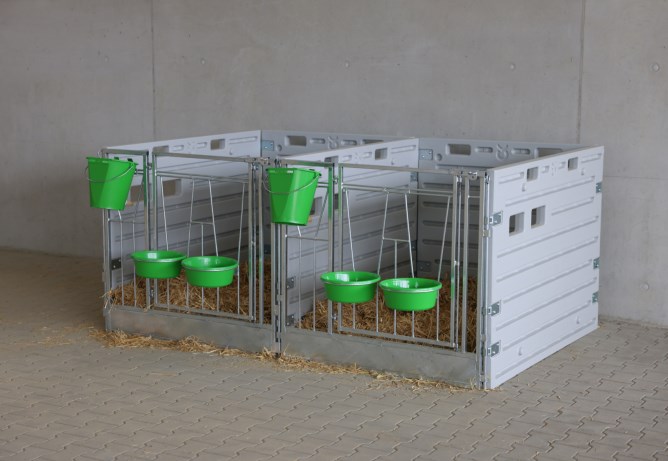

Modular Calf Box

The new modular calf boxes from Kerbl give you maximum flexibility and efficiency of labour.

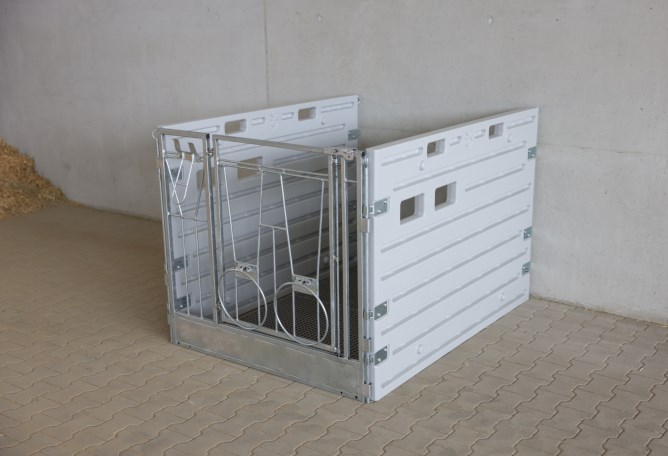

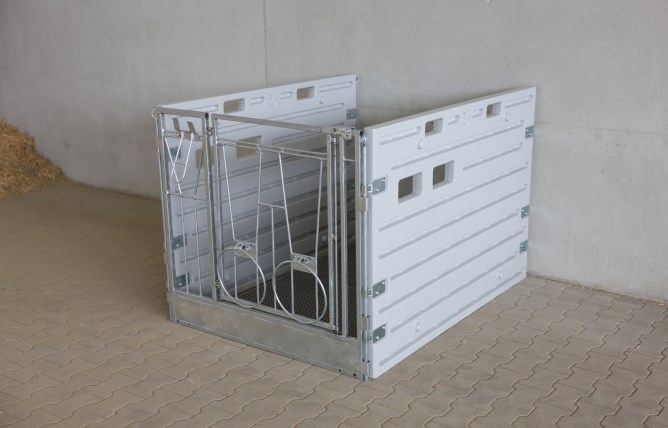

The boxes can be stacked free-standing or attached to a wall.

The panels are quickly and easily set up by a single person, and can be combined into one or more boxes.

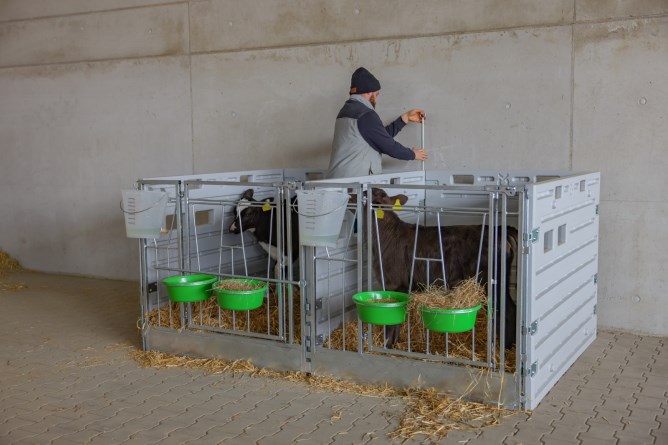

You can start with individual pens, and easily create small groups by removing the side walls between adjacent boxes.

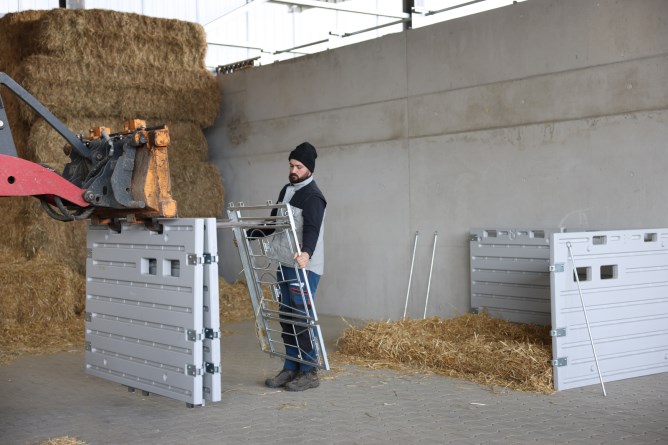

Dismantling and cleaning are just as quick as they are easy. The handles on the panels are large enough to fit onto pallet forks. The panel surfaces are easy to clean.

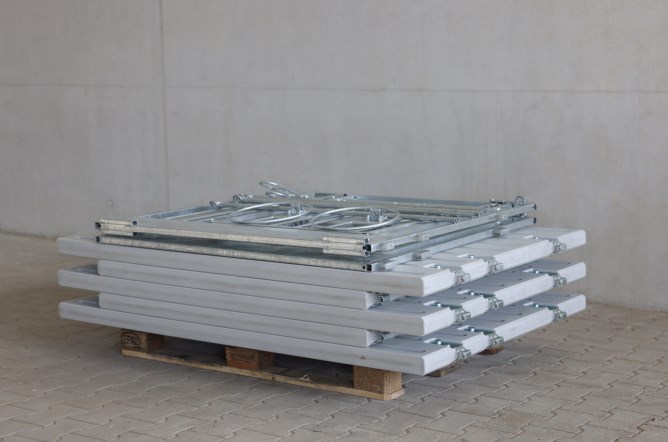

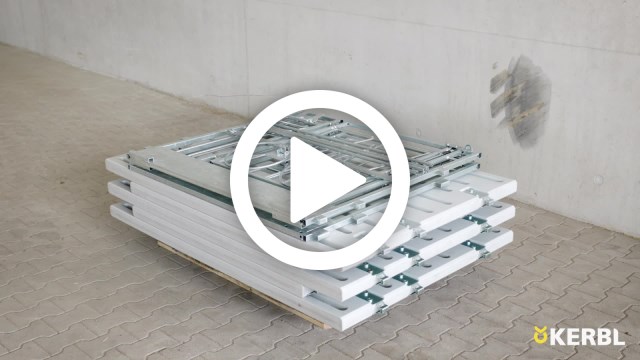

The new unique stacking system allows space-saving sorting and storage of the panels, including the door element.

  • new unique stacking system

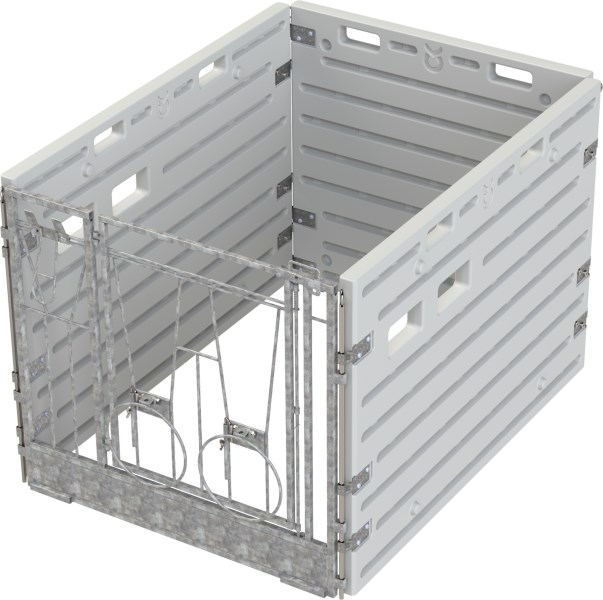

  • one box offers approx. 1.8 m2 of space (1.60 x 1.15 m)

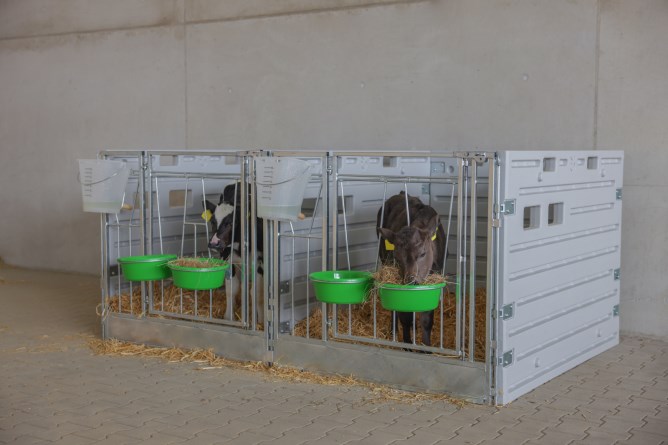

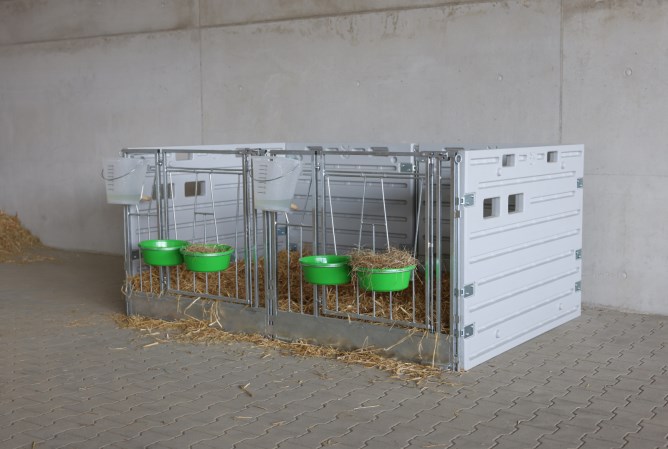

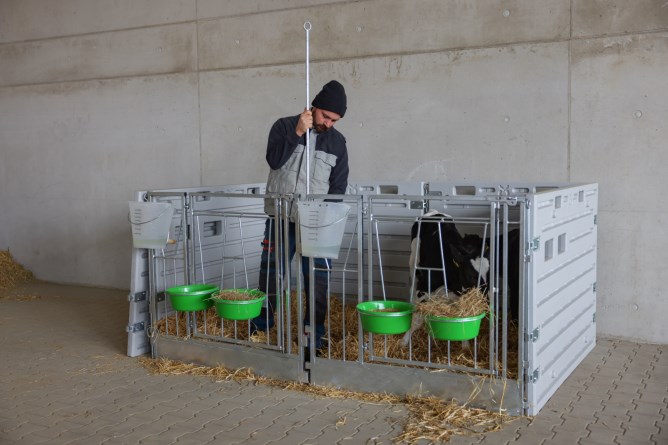

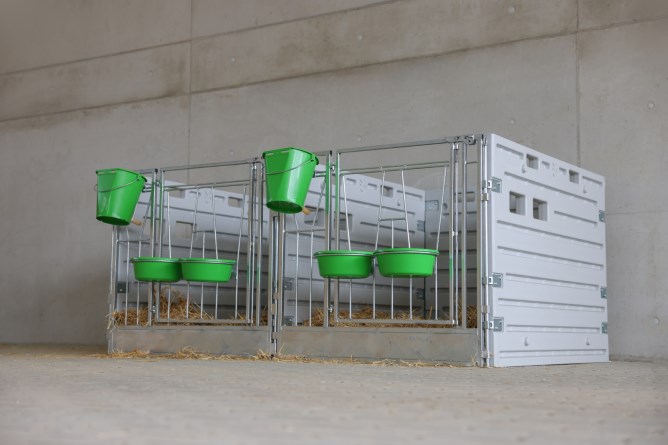

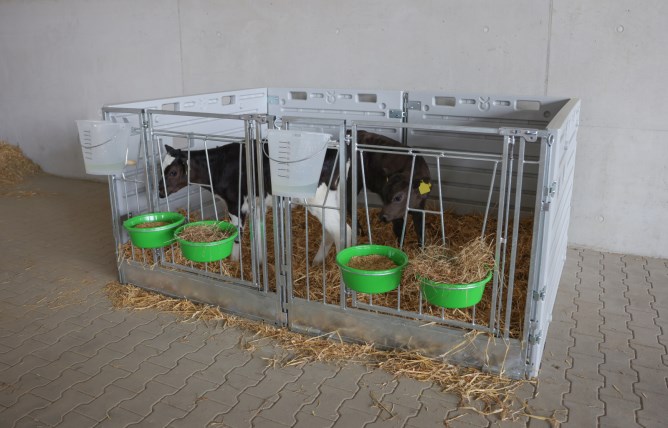

  • up to three boxes can be combined to create a group bay
  • robust plastic with stiffening ribs
  • easy-to-clean walls with smooth surface
  • social contact opening in the area of the side walls allows the calf contact with other calves

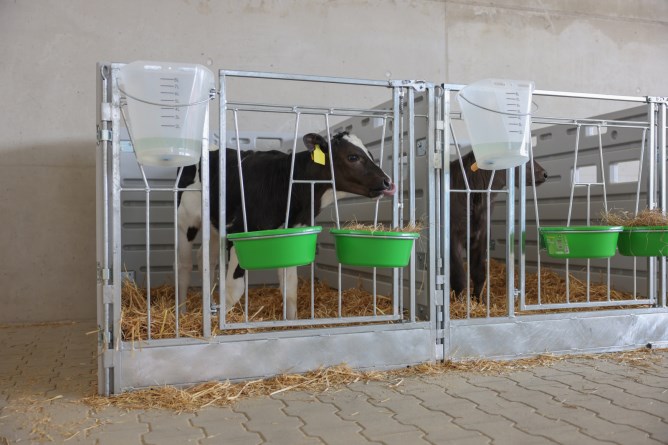

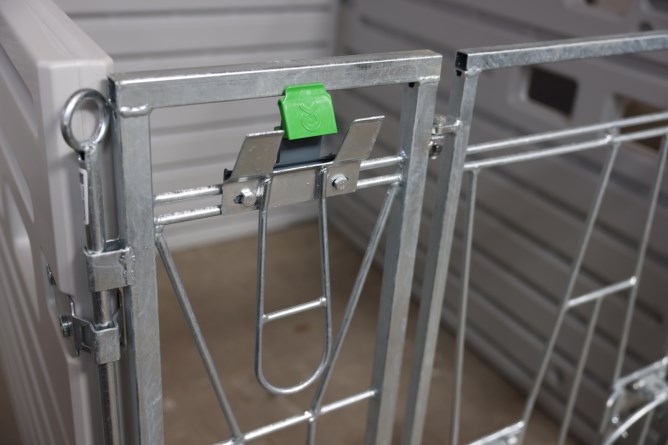

  • front element with swivel-mounted revolving door and fixed drinking area, perfect for teaching calves to suckle

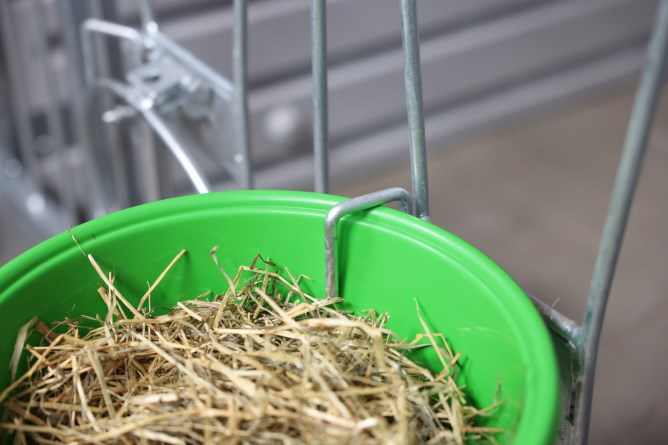

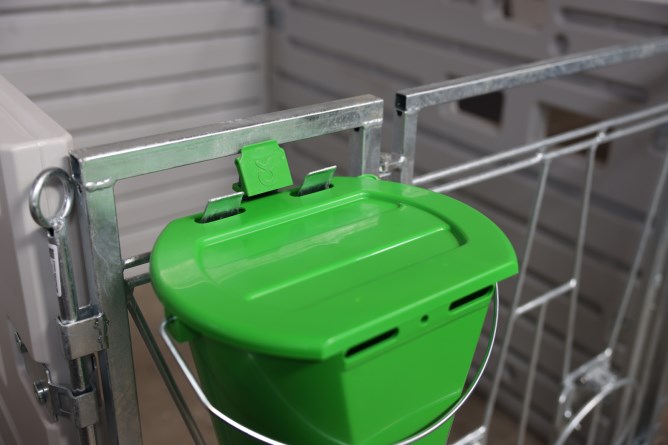

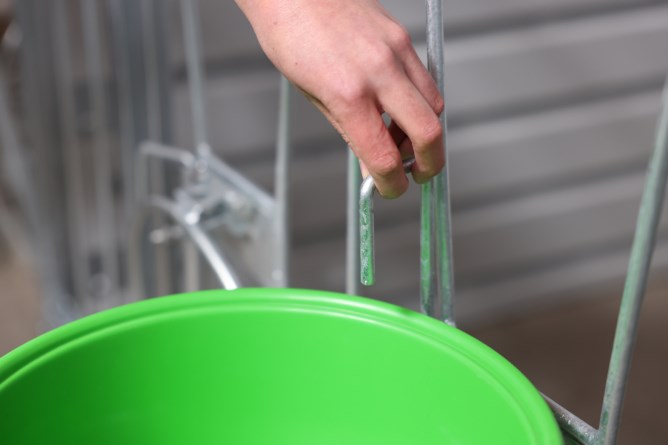

  • includes a watering bucket mounting bracket and two foldable bucket brackets
  • carrying handle for manual transport
  • Box assembled / disassembled in a few simple steps

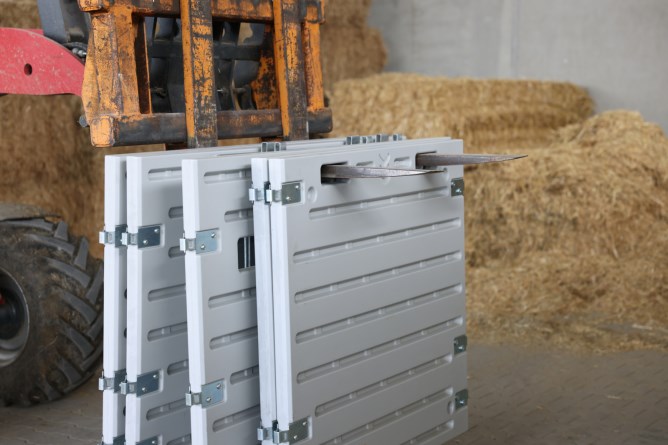

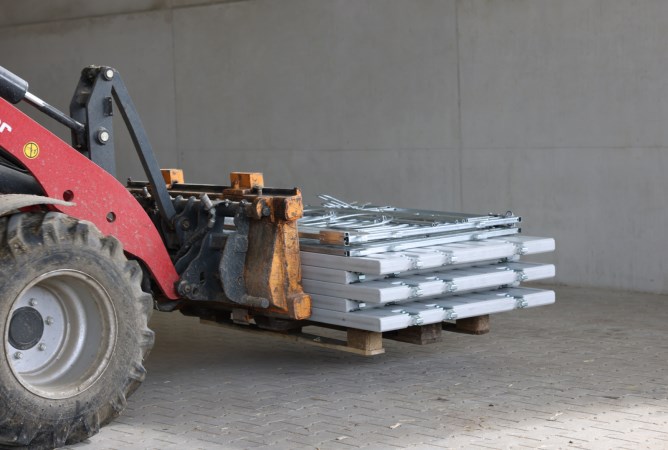

  • Can be transported with pallet forks

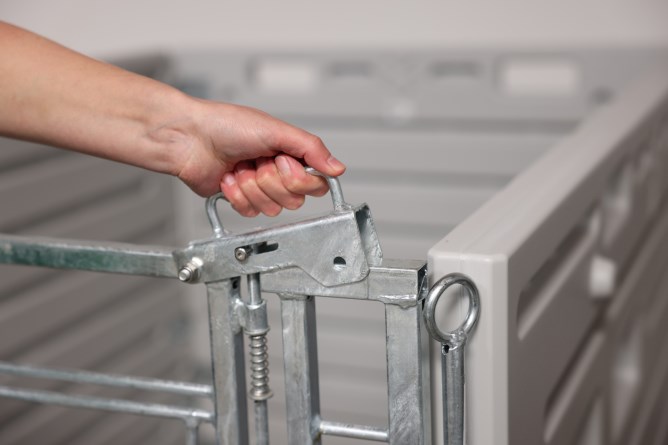

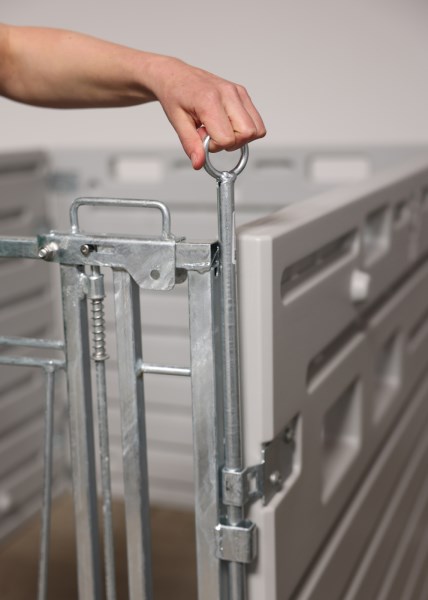

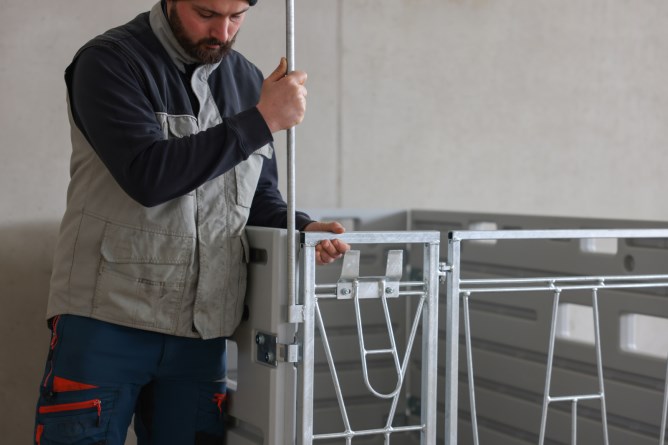

  • single-handed unlocking
  • no need to drill holes in the floor for fastening

14626 Scope of delivery:

1 x Front Element, Door (14620)

2 x Side Wall (14621)

1 x Back Wall (14622)

4 x Locking Rod (14624)

14627 Scope of delivery:

1 x Front Element, Door (14620)

2 x Side Wall (14621)

4 x Locking Rod (14624)

2 x Wall Mounting Accessory (14625)

14628 Scope of delivery:

2 x Front Element, Door (14620)

3 x Side Wall (14621)

2 x Back Wall (14622)

2 x Stabilising Aid, Group Box (14623)

6 x Locking Rod (14624)

14629 Scope of delivery:

2 x Front Element, Door (14620)

3 x Side Wall (14621)

1 x Stabilising Aid, Group Box (14623)

6 x Locking Rod (14624)

3 x Wall Mounting Accessory (14625)

14630 Scope of delivery:

1 x Front Element, Door (14620)

1 x Side Wall (14621)

1 x Back Wall (14622)

2 x Stabilising Aid, Group Box (14623)

2 x Locking Rod (14624)

14631 Scope of delivery:

1 x Front Element, Door (14620)

1 x Side Wall (14621)

1 x Stabilising Aid, Group Box (14623)

2 x Locking Rod (14624)

1 x Wall Mounting Accessory (14625)

Local animal protection regulations must be observed.
Items
Ref. no.DescriptionMaterialPU

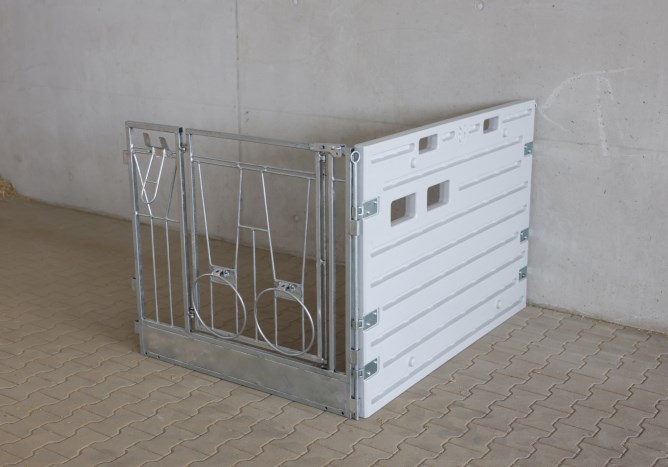

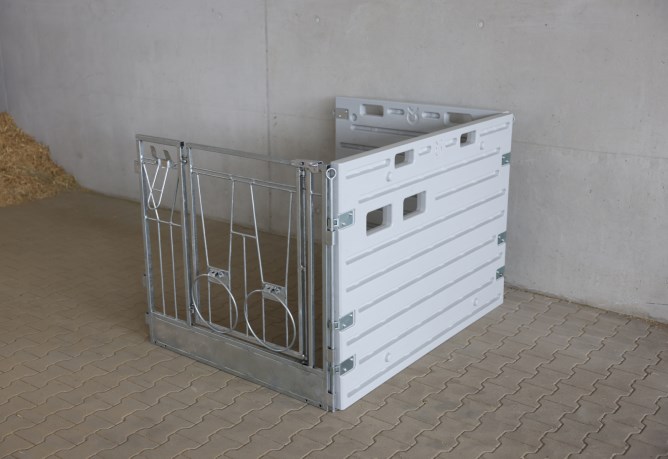

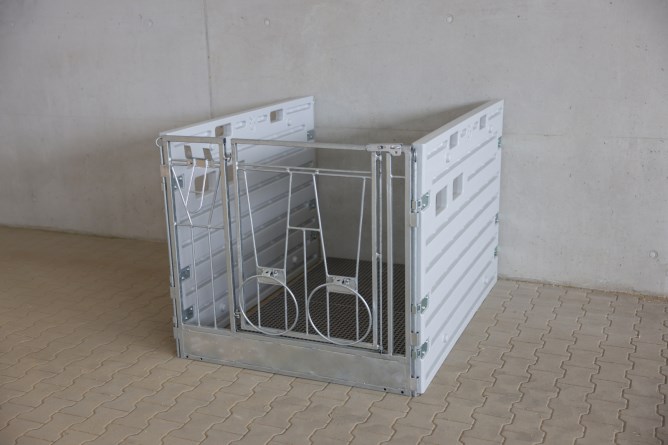

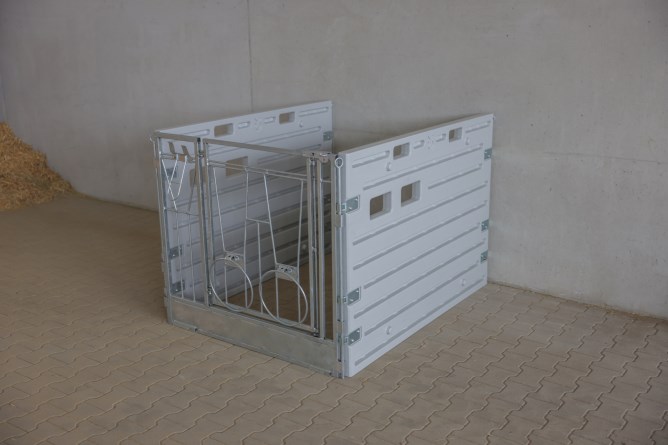

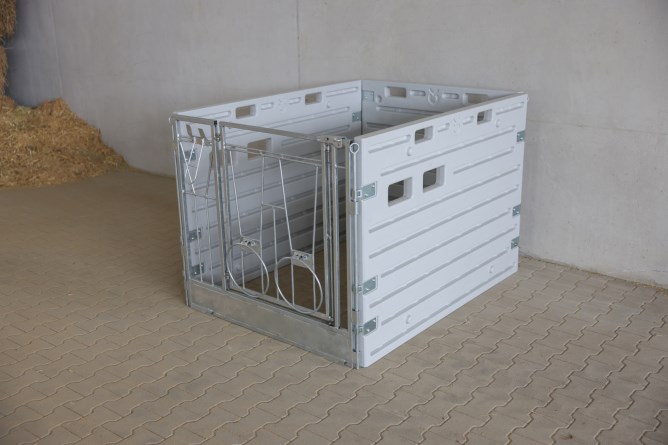

14626Single Bay, Free Standinggalvanised metal / Plastic1

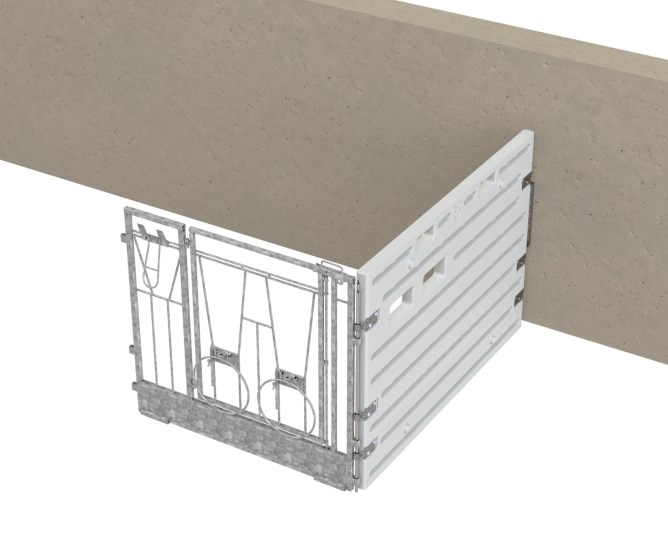

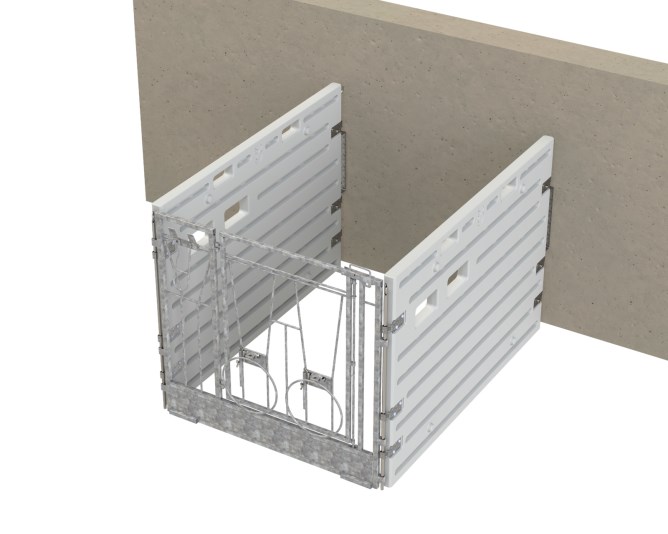

14627Single Bay, Wall-Standinggalvanised metal / Plastic1

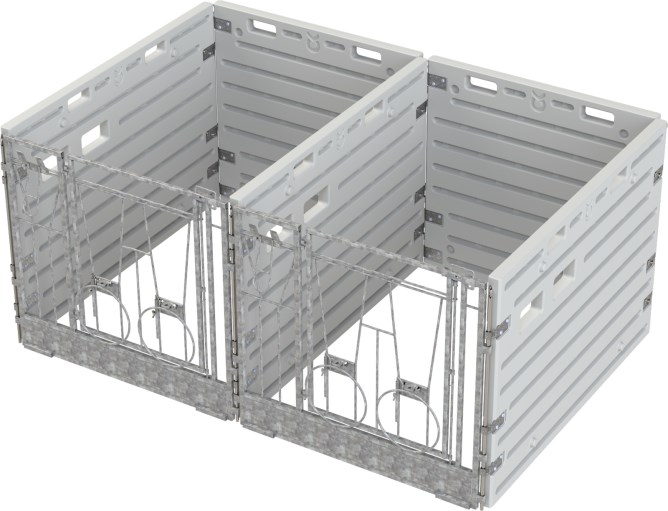

14628Twin Bay, Free Standinggalvanised metal / Plastic1

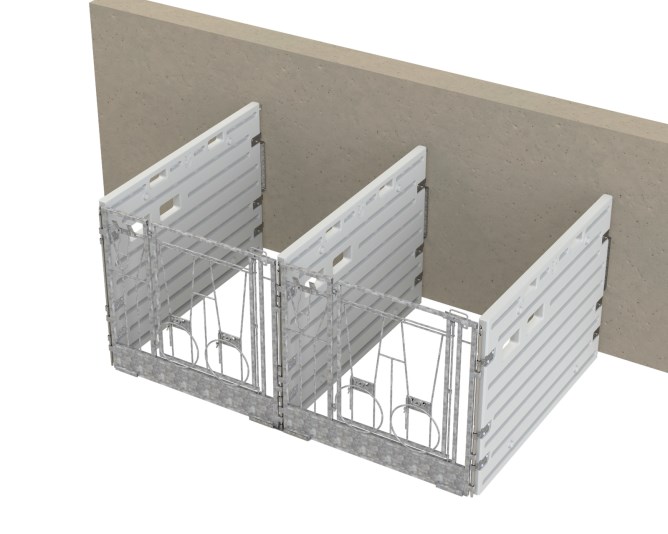

14629Twin Bay, Wall-Standinggalvanised metal / Plastic1
14630Single-Bay Extension, Free Standinggalvanised metal / Plastic1
14631Single-Bay Extension, Wall-Standinggalvanised metal / Plastic1
Accessories
Ref. no.DescriptionMaterialLengthWidthHeightPU
14620Modular Calf Box Front Element, Doorgalvanised metal125 cm10 cm114 cm1
14621Modular Calf Box Side WallPlastic167 cm8 cm112 cm1
14622Modular Calf Box Rear WallPlastic125 cm8 cm112 cm1

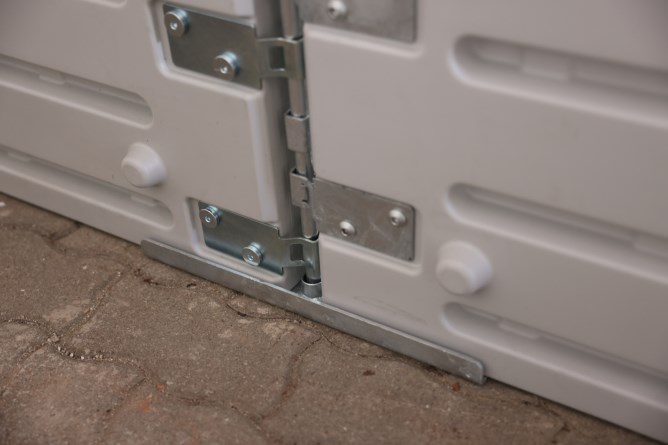

14623Modular Calf Box Stabilisation Aid for Group Boxgalvanised metal40 cm7.5 cm2.5 cm1
14624Modular Calf Box Locking Rodgalvanised metal110 cm1.5 cm2.5 cm1
14625Modular Calf Box Wall mounting accessorygalvanised metal5.5 cm4 cm36 cm1
14632Modular Calf Box Roof mountgalvanised metal127 cm7 cm12.5 cm1
