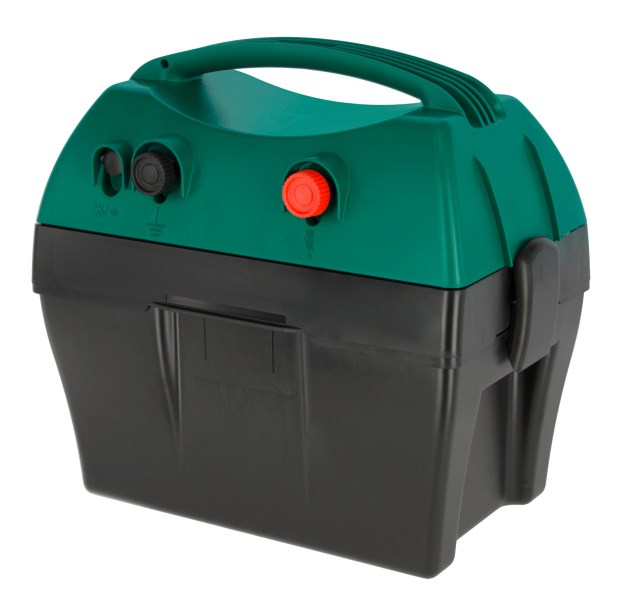

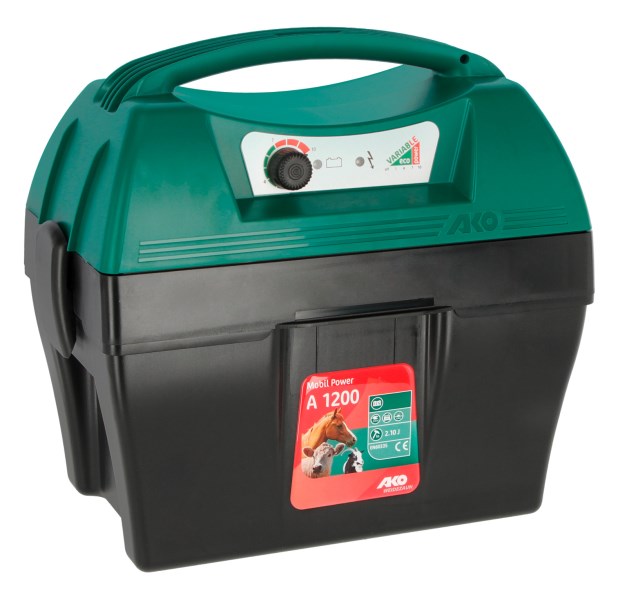

Mobil Power A 1200

Universal, very effective 12 volt battery unit for mobile use
two separate LEDs for fence voltage and battery control

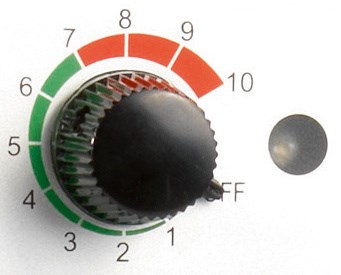

manual turn switch (1 – 10) adjusts output energy steplessly – this makes power input adjustable to adapt more efficiently to fencing conditions
Can be operated via a 230-V power pack (371012 - not included)

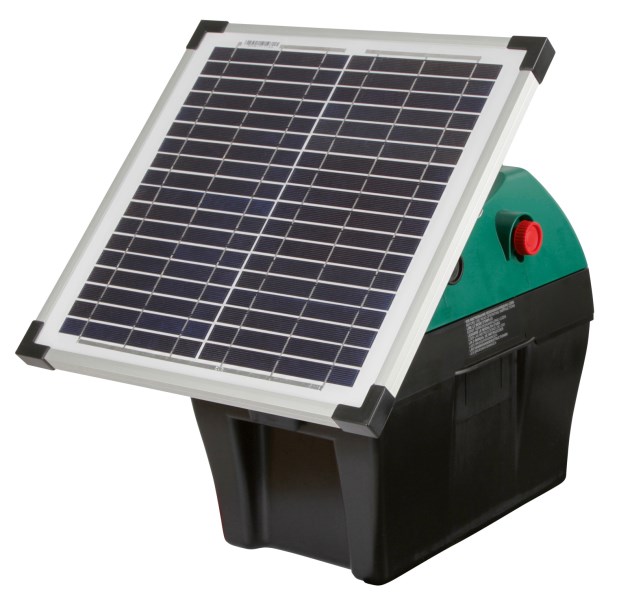

recommended solar module: item no. 375156 (15 watts)

Ref. no.	PU	Pallet
372121	1	33 PAL

Ref. no.	Description	Width	Depth	Height	PU
375156	Solar Panel without charge controller	37.5 cm	2 cm	37 cm	1

low energy consumption thanks to energy-saving mode

with visual fence voltage control

with On/Off switch, high/low

weather-resistant and sturdy housing

Can be operated via a 230-V power pack (371012 - not included)

with 12 Volt full discharge protection

Model	Ref. no.	Stored Energy	max. discharge energy	min. discharge energy	max. voltage	Voltage in Open Circuit	Voltage at 500 Ohms	theoretical fence length as per VDE	max. fence length without vegetation	max. fence length with medium vegetation	max. fence length with high vegetation	Approx. Number of Electrifiable Nets	Qty 1 m earth posts	Power Consumption
A 1200	372121	2.1 J	1.4 J	0.48 J	10700 V	9000 V	4400 V	40 km	10 km	5 km	1.5 km	5	2	15 mA - 150 mA
