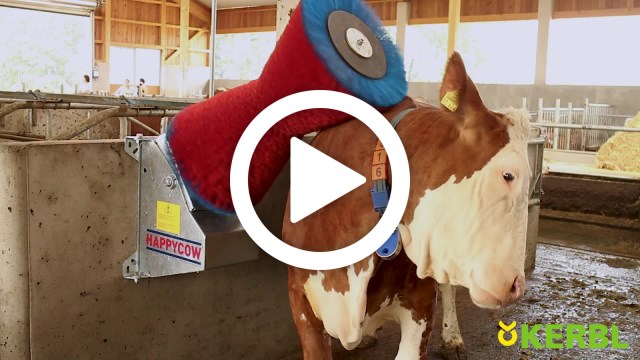

Cow Cleaning Machine HAPPYCOW Uno

The back, tail and torso, but also the head, are brushed thanks to the diagonal, conical arrangement.

The HAPPYCOW Uno can be mounted almost anywhere without an additional frame.

The control is well protected in the machine housing.

  • the cow cleaning machine is automatically activated by the animals slightly raising the brush
  • high-quality bristles ensure a long service life
  • optimised brushes ensure that animals are happy to use them
  • continuous lubrication of the gear over the machine's entire lifetime
  • intelligent electronics for fault-free and low-maintenance operation
  • control with clearly visible display to indicate the operating status
  • variable setting options for brush running time (10 - 300 s)
  • the changing direction of the brush after ever activation ensures even wear of the brushes
  • the torque safety shutdown stops the brush when it encounters too much resistance, ensuring safety in the barn
  • plug ready for connection to 230 V socket
  • all steel parts are hot dip galvanised

a quality product developed and produced by Kerbl

Items
Ref. no.DescriptionColourWidthDepthHeightPU
18690with PP bristlesred / blue50 cm110 cm120 cm1
18680with PA bristlesred / blue50 cm110 cm120 cm1
Accessories
Ref. no.DescriptionColourMaterialPUPalette
18709Bounce Frame HAPPYCOW galvanised metal1
18691Brush Kit Complete incl. 2 End Discs from 2004 modelred / bluePolypropylene18 PAL
18681Brush Kit Complete incl. 2 End Discs from 2004 modelred / bluePolyamide18 PAL


Effective and comprehensive cleaning: the diagonally designed brush with conically cut bristles enables effective brushing of the animal's back, tail, flank and head and ensures comprehensive cleaning.

Easy assembly: the HAPPYCOW Uno can be mounted without an additional frame and can therefore be easily installed at different locations. It is supplied ready to plug in.

Safe activation: the cow cleaning machine is activated by slightly lifting the brush, allowing the animals to fulfil their scratching and grooming needs independently at any time. The optimised brush stabiliser weight ensures safe use and that animals are happy to use it.

Robust, low-maintenance and long-lasting: the control unit securely installed in the machine housing, permanent lubrication of the gear and intelligent electronics ensure fault-free operation.

Individually controllable and secure: the brush running time is variably adjustable (10 - 300 s), while a torque-dependent safety cut-out in the event of excessive resistance ensures safety in the barn.

Technical DataVoltageMains FrequencyOutputSpeedWeightProtection Type
18690230 V50 Hz370 W46 rpm110 kgIP56
18680230 V50 Hz370 W46 rpm110 kgIP56

Preview imageItem. No.Description1869018680
 18681-1Brush Set Nylon REDxx
 18681-2End Brush Nylon, BLUExx
 18817-1Spare PCB for 18817xx
 6456Protective hose, blackxx
 6734Lock Screw M16xx
 18681Replacement brush PA f. modelsxx
 187002Earth cable for CC Machinexx
 187007Con. Lubrica. Nipple DIN 71412xx
 187010Contact Switch Retaining Clipxx
 187011Shock Absorber Retainerxx
 187012Motor Stop Cow Clean. Machinexx
 187013Socket 30x5 L=28mmxx
 187042Rubber washer, neoprenexx
 18707gear motor for 18700 completex
 18712Rubber buffer 20x20-M6x18,xx
 18733Cable from control to motor x
 18734Bearing for UCF 212xx
rubber buffer 40x20mm M6x1818738rubber buffer 40x20mm M6x18xx
 18739Key 8x7x90mm forxx
 18740Brush Closure Lid D120 x 6xx
 18817-2Motor cable for 18817xx
 18817-4Control housing forxx
